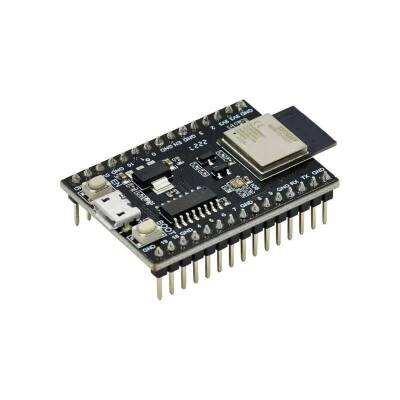

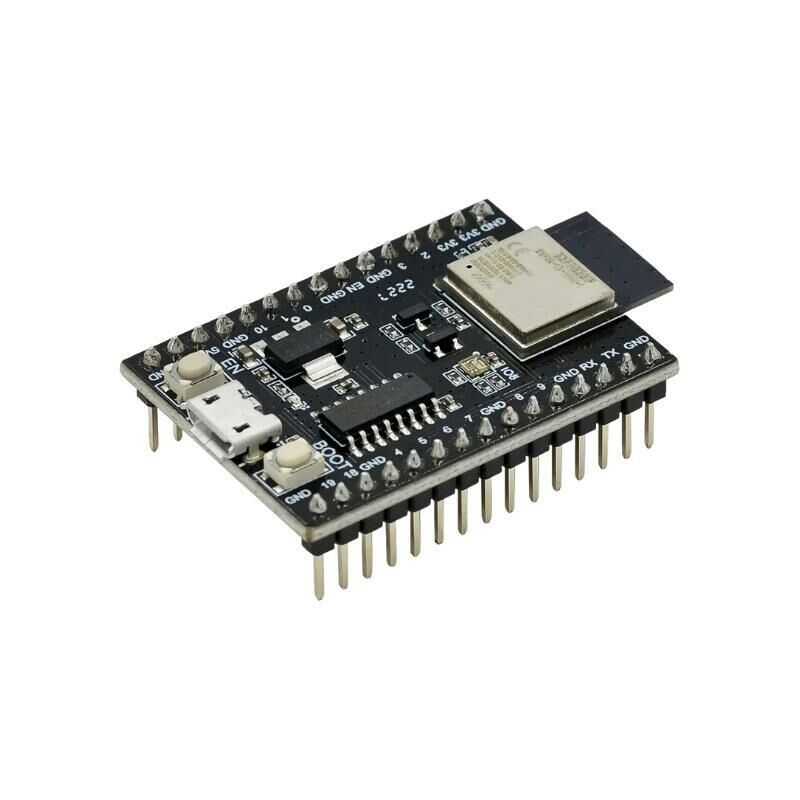

ESP32-C3-MINI-1 Wi-Fi Bluetooth Development Board
ESP32-C3-MINI-1 Wi-Fi Bluetooth Development Board, ESP32 It is an entry-level development board based on C3-MINI-1. This board provides a wide range of Wi-Fi and Bluetooth LE functions.

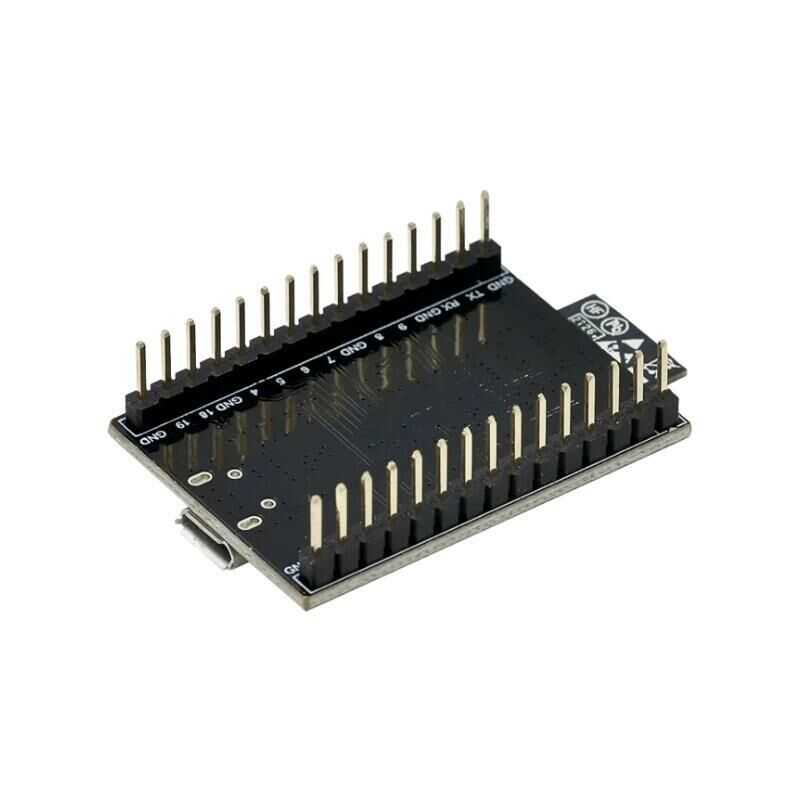

Most of the I/O pins on the ESP32-C3-MINI-1 module are connected to this board for easy interfacing. It is divided into pin headers on both sides. Developers can connect peripherals with jumper cables or mount the ESP32-C3-DevKitM-1 on a breadboard.
One of the key components is a PCB that comes with an antenna is the ESP32-C3-MINI-1, a general-purpose Wi-Fi-and-Bluetooth-LE combo module. At the heart of this module is the ESP32-C3FN4, a chip with embedded 4MB flash. Because the flash is packaged on the ESP32-C3FN4 chip rather than integrated into the module, the ESP32-C3-MINI-1 has a smaller package size. There is a power regulator that converts it to a .3V output and turns on when USB power is connected to the board. All available GPIO pins (except the SPI bus for flash) are reserved for pin headers on the board. (Please see the Title Block for more details.)
ESP32-C3FN4 chip with Micro USB Port, a USB interface, a power supply for the board, or a computer It can be used as a communication interface between The USB-UART Bridge provides transfer speeds of up to 3 Mbps while the system reboots when the Reset button is pressed. Finally, there is an addressable RGB LED (WS2812) routed via GPIO8.
