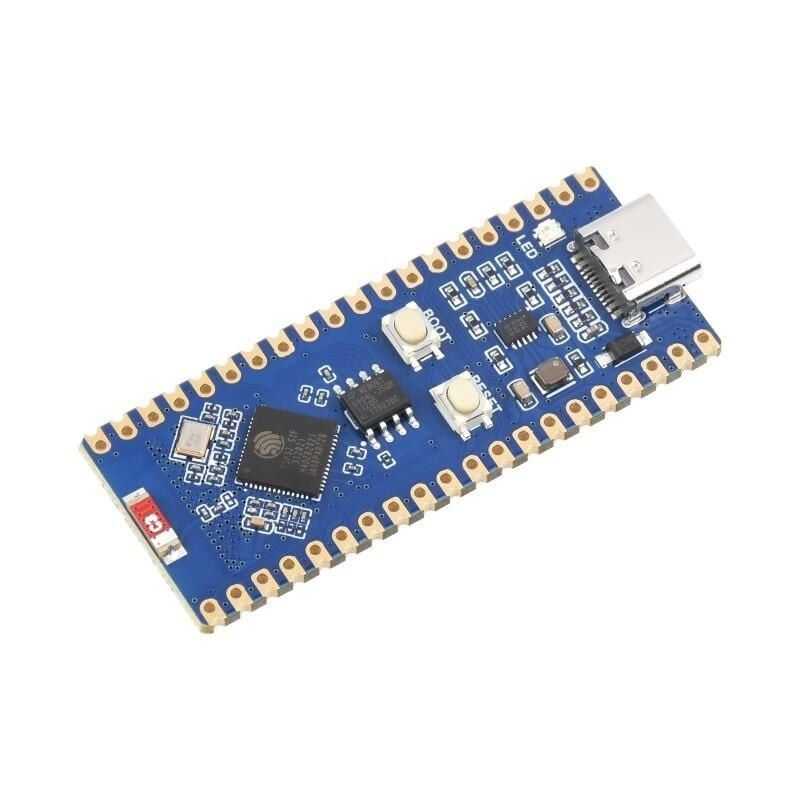

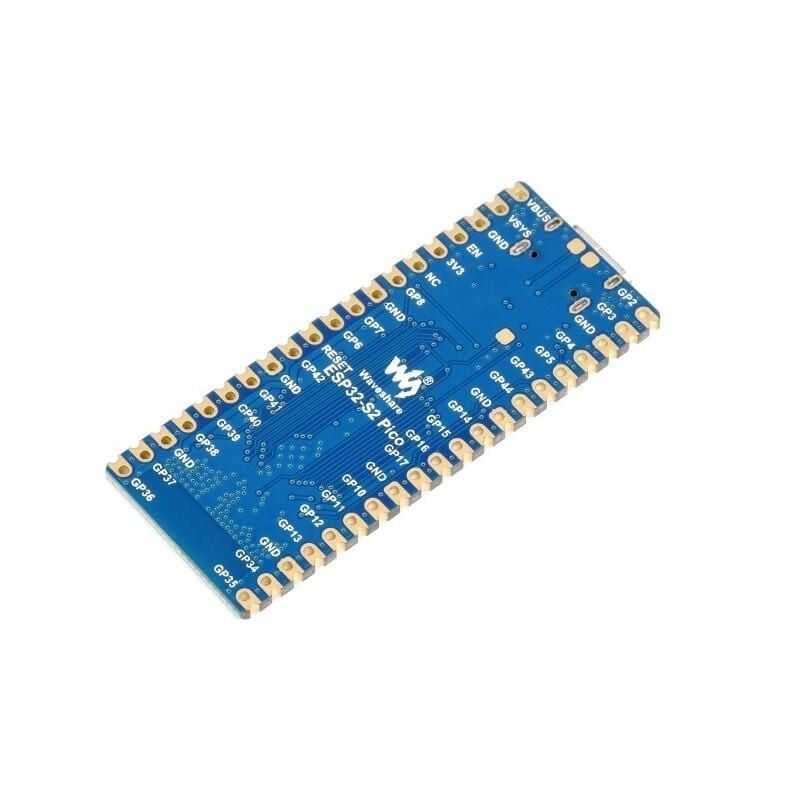

ESP32-S2-Pico MCU 2.4 GHz WiFi Development Board



ESP32-S2-Pico supports the Raspberry Pi Pico expansion board ecosystem, multiple peripheral interfaces, integrated low-power WiFi It is a compact WiFi development board with System-on-Chip (SoC) and mass memory. Equipped with a hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to meet power requirements in IoT, mobile devices, wearable electronics, smart homes and other application scenarios, etc.

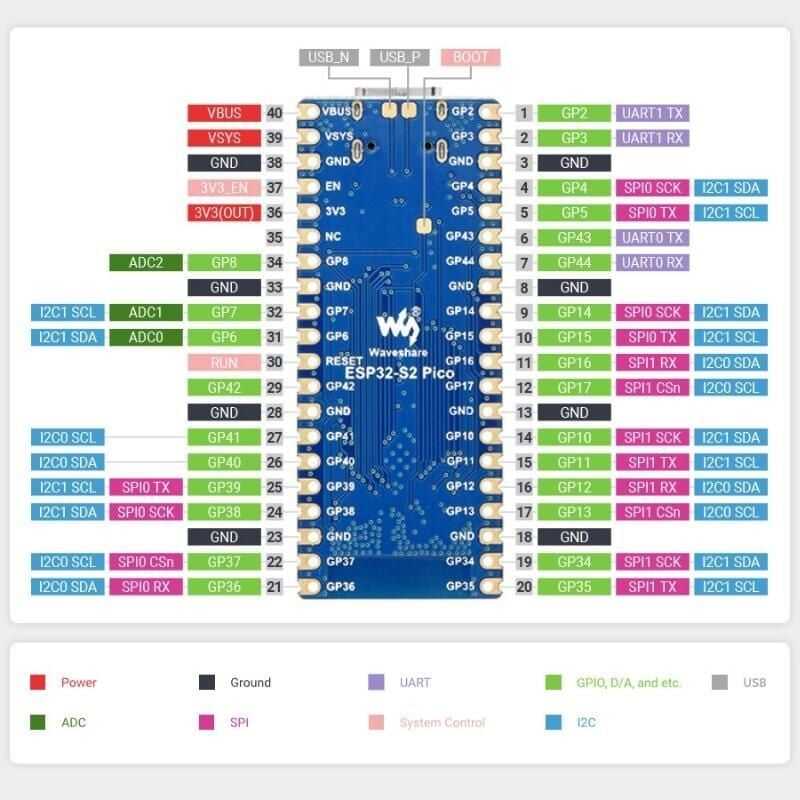

• Supports Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development.
• Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, up to 240 MHz supports clock frequency.
• Onboard 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory.
• IEEE802.11 b/g/n, onboard 2.4 GHz WiFi ceramic antenna, Support data transfer rate up to 150 Mbps.
• USB-C connector, no more plug orientation problem.
• On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compliant), capacitive sensor GPIO, temperature sensor and RMT (TX/RX).
• Onboard 1.8A current high efficiency boost/buck DC- DC TPS63000 power supply IC.
• Support a variety of low-power working states to adjust the optimal balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios.
• Rifle module, Allows direct soldering to user-designed carrier boards.
