ESP32-WROOM-32E 8M 64Mbit Wi-Fi Bluetooth Module

Ratings & Reviews (0)
Comment
Show More: WIFI
Brand: Motorobit
Product Code: KHB.WFI.01.000046
Stokta 10+ ürün
207.68 TL + VAT
VAT Included: 249.22 TL

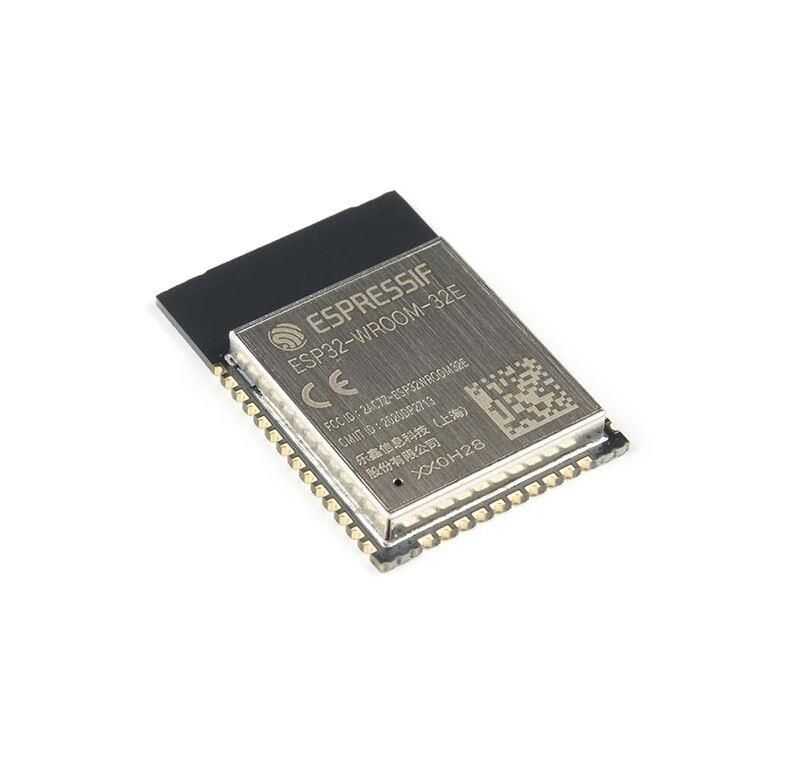

ESP32-WROOM-32E 8M 64Mbit Wi-Fi Bluetooth Module


Espressif ESP32-WROOM-32E encoding audio from low power sensor networks is a Wi-Fi+BT+BLE MCU module that targets a wide range of applications, from music streaming to MP3 decoding to the most demanding tasks. ESP32-WROOM-32E comes with a PCB antenna for Bluetooth and Wifi connection. These modules are equipped with 4 to 16 MB external SPI flash.
There is a wide range of applications for ESP32-WROOM-32E,
General Low Power IoT Sensor Hub
General Low Power IoT Data Loggers
Cameras for Video Streaming
Over-the-top (OTT) Devices
Speech recognition
Image Recognition
Home automation
Smart Building
Industrial Automation
Smart Agriculture
Audio Applications
Healthcare Applications
Wi-Fi enabled Toys
Wearable Electronics
Retail & Catering Applications


ESP32-WROOM Features

  • ESP32-D0WD-V3 onboard, Xtensa dual-core
  • 32-bit LX6 microprocessor, up to 240 MHz
  • 16 KB SRAM at RTC
  • WiFi
    •802.11b/g/n
    • Bit rate: 802.11n, up to 150 Mbps
    • A-MPDU and A-MSDU combination
    • 0.4 µs guard interval support
    • Center frequency range of the working channel:
    2412 ~ 2484 MHz
  • Bluetooth
    • Bluetooth V4.2 BR/EDR and Bluetooth LE feature
    • Class-1, class-2 and class-3 transmitter
    • AF
    • CVSD and SBC

  • Hardware
    • Interfaces: SD card, UART, SPI, SDIO, I2C, LED, PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI, compliant with ISO11898-) 1)
  • Operating Voltage (VDC): 3 ~ 3.6
  • ROM: 448 KB
  • SRAM: 520
  • SPI Flash: 4 MB
Weight(Kg)
0.02
