ESP32-WROOM-32U 4M 32Mbit Wi-Fi Bluetooth Module

Ratings & Reviews (0)
Comment
Show More: WIFI
Brand: Motorobit
Product Code: KHB.WFI.01.000050
Stokta 10+ ürün
176.40 TL + VAT
VAT Included: 211.68 TL

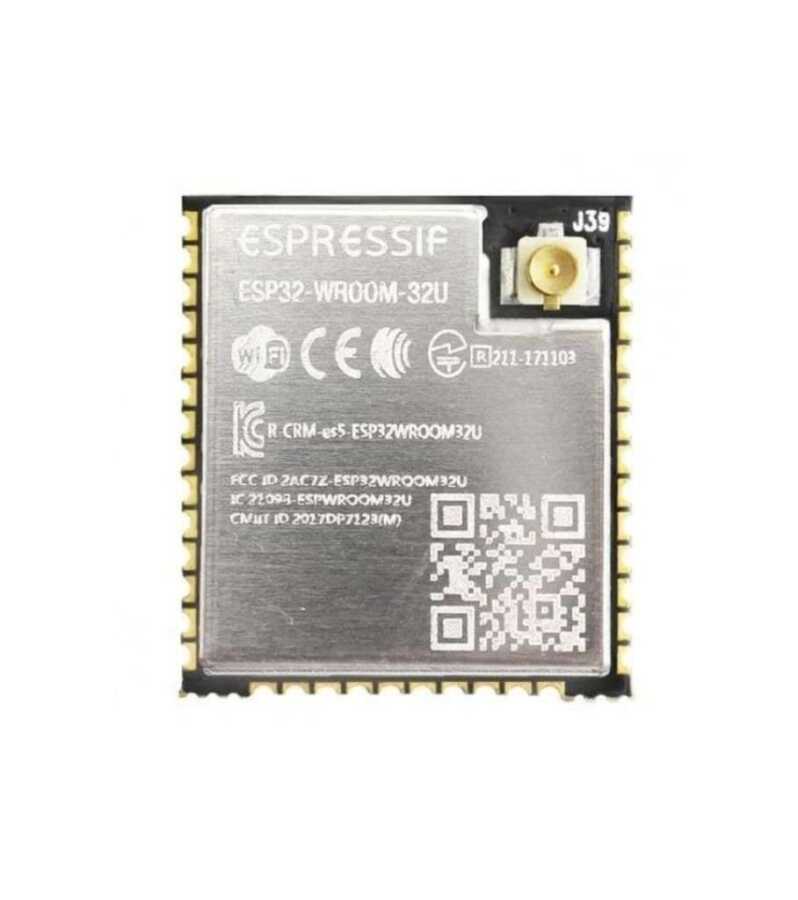

ESP32-WROOM-32U 4M 32Mbit Wi-Fi Bluetooth Module


ESP32-WROOM-32D and ESP32-WROOM-32U, low They are powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide range of applications, from powerful sensor networks to the most demanding tasks such as audio encoding, music streaming and MP3 decoding.
ESP32-WROOM-32U differs from ESP32-WROOM-32D in that ESP32-WROOM-32U integrates a U.FL connector.

ESP32-WROOM-32U Specifications

  • Operating Voltage (VDC): 2.2 ~ 3.6
  • ROM: 448 KB
  • SRAM: 520
  • ESP32-WROOM-32 includes two low-power Xtensa 32-bit LX6 microprocessors
  • 448 KBytes ROM for boot and basic functions
  • 520 KBytes on-chip SRAM
  • 8 KBytes SRAM in RTC SLOW
  • 8 KBytes SRAM in RTC FAST
  • 1 Kbit EFUSE, 256 bit MAC
  • IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
  • Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
Weight(Kg)
0.02
