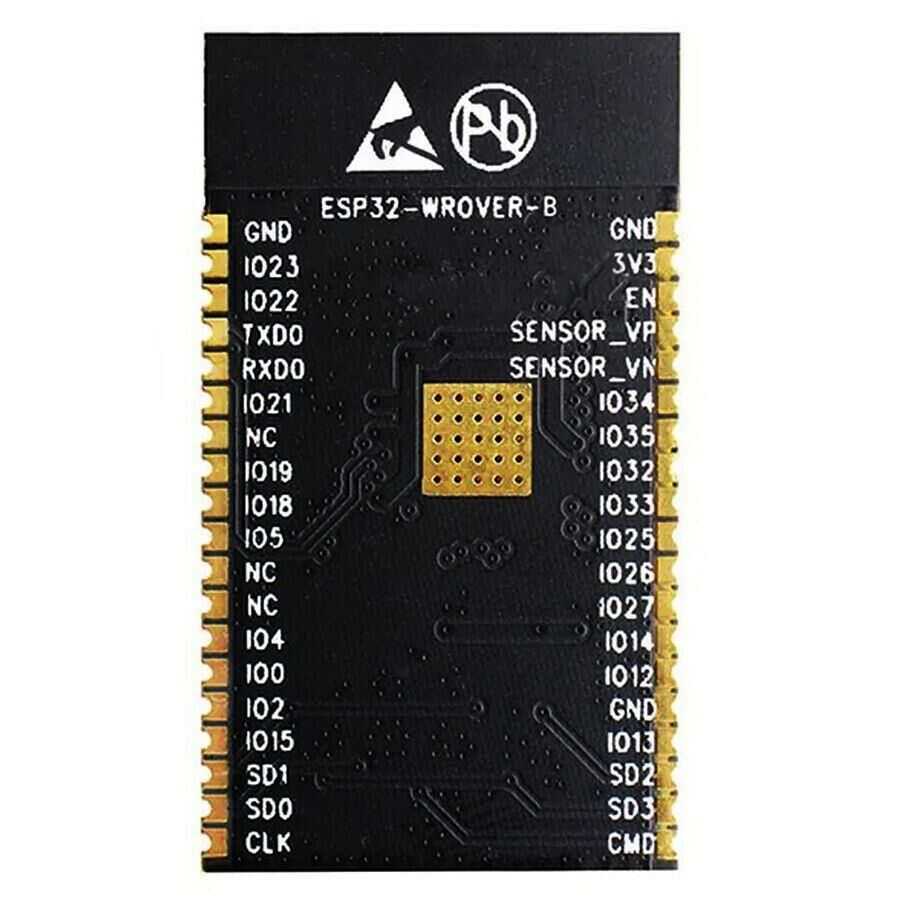

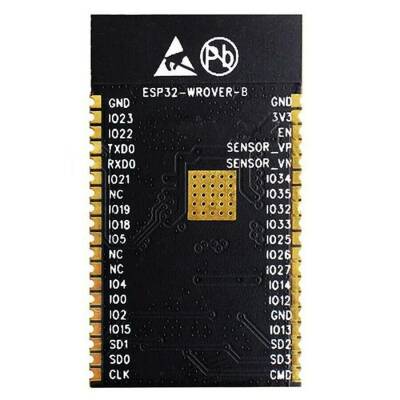

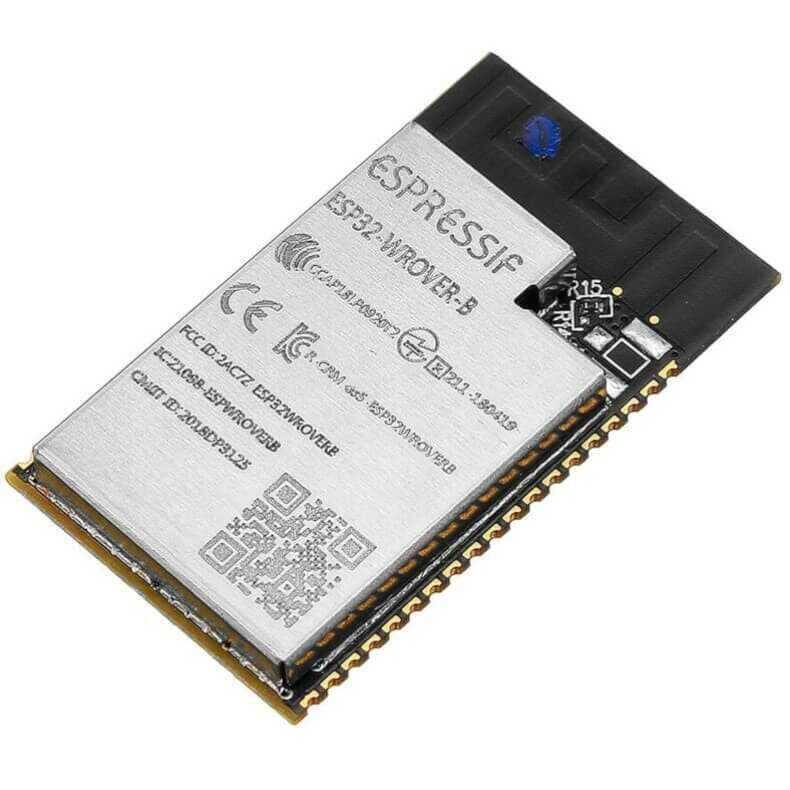

ESP32-WROVER-B 8M 64Mbit Wi-Fi Bluetooth Module

The Espressif ESP32-WROVER-B Wireless Module is a powerful, general WiFi-BT-BLE MCU module targeting a wide range of applications. These applications range from low-power sensor networks to the most demanding tasks such as audio encoding, music streaming and MP3 decoding. ESP32-WROVER-B features 8MB external SPI flash and an additional 64MB SPI Pseudo static RAM (PSRAM).

ESP32-WROVER-B MCU Modules are essentially ESP32-D0WD uses the chip. This SoC has two CPU cores that can be controlled individually, and the CPU clock frequency can be adjusted between 80MHz and 240MHz. ESP32 integrates a rich set of peripherals consisting of capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.

ESP The -32S Wifi Bluetooth combo module provides SDK Firmware for fast online programming and open source toolchains based on GCC for development support. General low-power IoT sensor hub for manufacturers, hardware engineers, software engineers and solution providers designed for recorders, video streaming for camera, Wi-Fi and Bluetooth enabled devices, Home automation and mesh networking applications.

ESP32 is a single 2.4GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra-low power 40nm technology. Designed and optimized for best power performance, RF performance, ruggedness, versatility, features and reliability for a wide range of applications and different power profiles.

ESP32 less than 10 With external component, it is the most integrated solution for Wi-Fi + Bluetooth applications in the industry. ESP32 integrates antenna switch, RF balun, power amplifier, low noise receive amplifier, filters and power management modules. Therefore, the entire solution occupies a minimal Printed Circuit Board (PCB) area.

ESP32 is designed for mobile, wearable electronics and Internet of Things (IoT) applications. It has many features of state-of-the-art low-power chips, including fine-resolution clock gating, power modes, and dynamic power scaling.

ESP32-WROVER-B Features

Two or one provides good physical range
Classic Bluetooth for legacy connections, also supports L2CAP, SDP, GAP, SMP, AVDTP, AVCTP, A2DP (SNK) and AVRCP (CT)
L2CAP, GAP, GATT, SMP and BluFi, SPP etc. Support for Bluetooth Low Energy (Bluetooth LE) profiles, including GATT-based profiles
Bluetooth Low Energy (Bluetooth LE) connects to smartphones and emits low-energy beacons for easy detection
Sleep current 5 is less than μA, making it suitable for battery-powered and wearable electronic applications
Peripherals include capacitive touch sensors, Hall sensor, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C

ESP32- WROVER-B Datasheet
