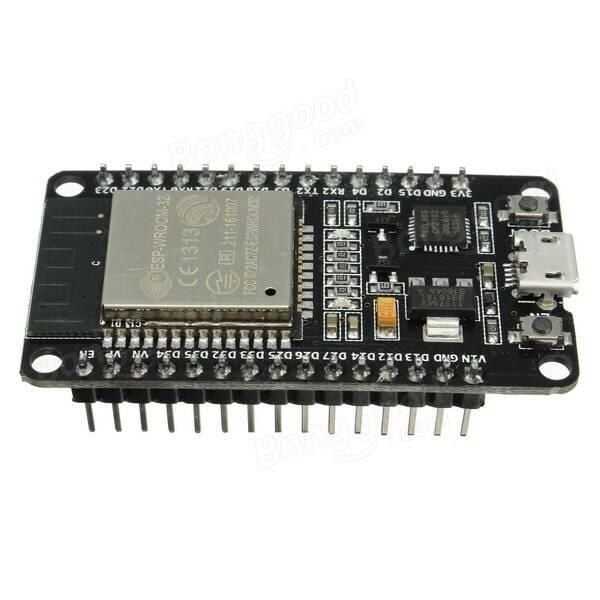

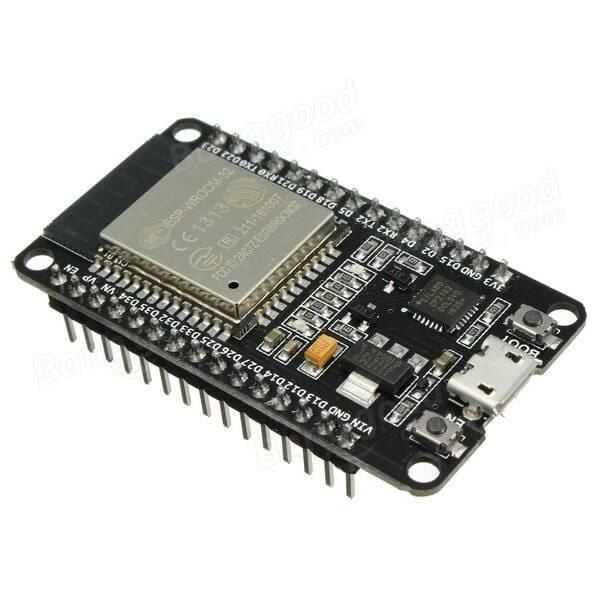

ESP32S Module Wifi and Bluetooth Module



ESP32 is a Wi-Fi and Bluetooth combo chip and designed with TSMC ultra-low power 40 nm technology. Designed and optimized for best performance, RF performance, ruggedness, versatility, features and reliability for a wide range of applications and different power profiles.



ESP32 from 10 With few external components, it is the most integrated solution for Wi-Fi + Bluetooth applications in the industry. ESP32 combines antenna switch, RF balun, power amplifier, low noise receive amplifier, filters and power management modules.



ESP32 is suitable for mobile, wearable electronic devices and Internet of Things ( It can be used for IoT applications. The extremely low-power chip has many features such as fine-grained clock gating, power modes, and dynamic power scaling.



• Supply Voltage: 2.2V～3.6V
• Operating temperature: -40°C～85°C
• Operating current: 80mA
• Support LWIP protocol, FreeRTOS
• Support three modes: AP, STA and AP + STA
• Support ： Lua program
• Processor ： 32bit dual-core 240 MHz Tensilica LX6
• SRAM ： 520 KB Flash ： 16 MByte
• Wi-Fi Standard, FCC / CE / TELEC / KCC
• Wi-Fi Protocol ： 802.11 b / g / n /d/e/i/k/r
• Bluetooth Protocol： BLEv4.2 BR/EDR
• Bluetooth Audio, CVSD and SBC
• Peripheral: UART, SPI, I2S, ADC, DAC, I2C
• On-Chip Sensors, Hall Effect, Temperature
• Weight: 9g
• Dimension: 51.6mmx28.5mm



Application Areas:

• Universal low power IoT sensor
• Home automation
• Universal low power IoT recorder
• Camera's video streaming
• Industrial wireless control
• OTT TV box / set-top device
• Baby monitor
• Smart socket
• Sensor networks
• Wi-Fi toys: Counters, toys, Anti-lost device
• Wearable electronic products
• Wi-Fi speech recognition device
• Wireless enabled devices
