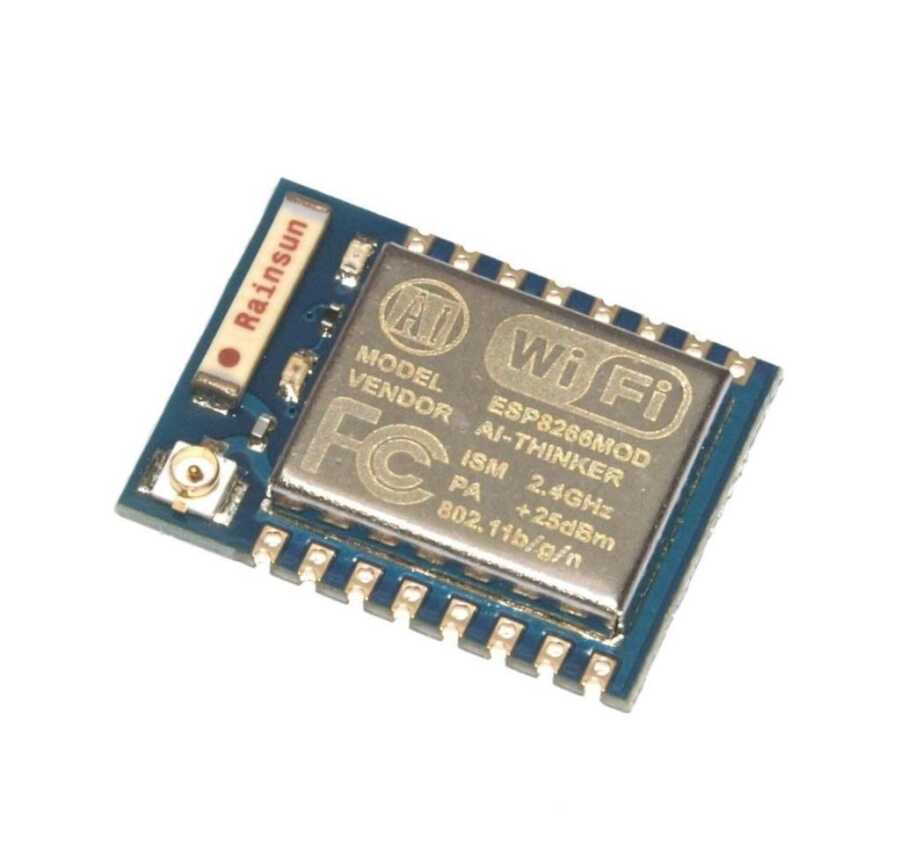

ESP8266-07 Economic Wifi



This incredibly priced wireless module allows any microcontroller to connect to an 802.11b/g/n wireless network. This gives your microcontroller project the ability to request data from a server anywhere in the world over a convenient WiFI connection. Controlling the module couldn't be easier as it's pre-flashed with a serial application that allows it to be controlled via simple 'AT' serial (115200 baud default) commands.



ESP8266-07 also has a built-in ceramic antenna as well as a uFL connector that allows the connection of an external antenna. An external antenna is not sent with the product.

To program ESP You can use the USB/Serial converter.



• 802.11 b/g/n support
• Wi-Fi Direct (P2P) Support
• Built-in TCP/IP protocol stack
• +19.5dBm output power (in 802.11b mode)
• Leakage current < 10uA
• Built-in 32-bit processor with low power consumption
• SDIO 1.1/2.0, SPI and UART support
• STBC, 1x1 MIMO, 2x1 MIMO
• Wake-up and data packet reception time < 2ms
• Stand Power consumption in -by state < 1mW
