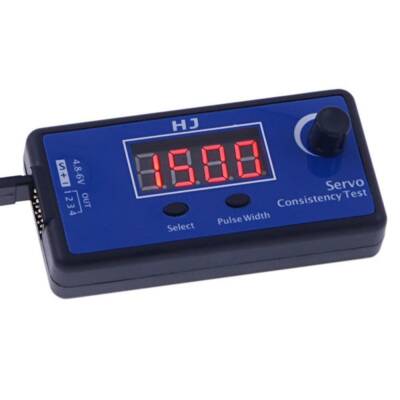

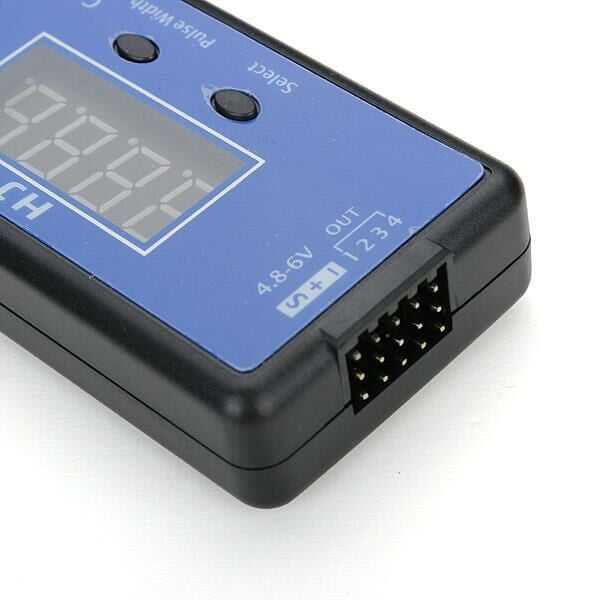

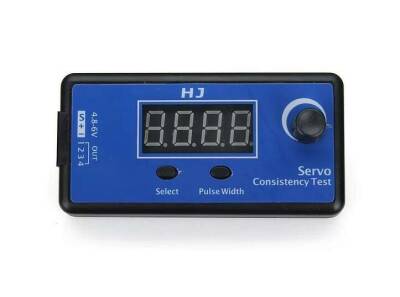

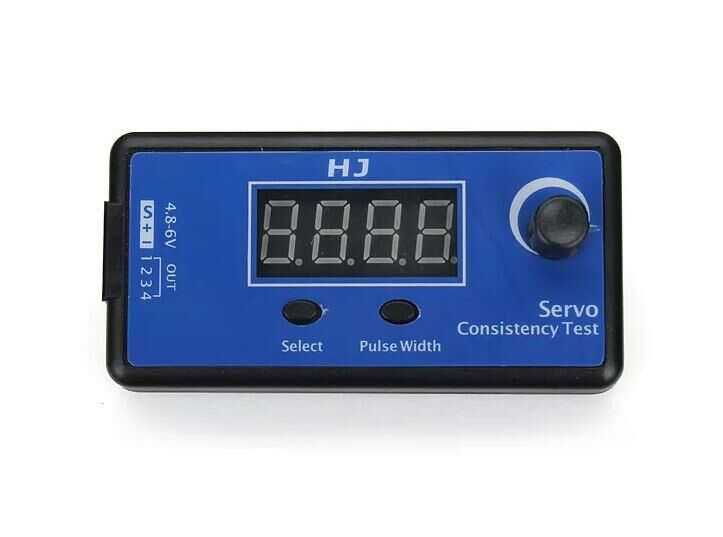

Used to check synchronous output control for up to 4 servos and compare the performance gear control of the servo output signal. It gives accurate value down to 2us(1 millisecond = 1000 microseconds), you can test whether the gear can respond to subtle changes. With the PPM signal test function on the screen, the signal changes as the PPM input enters the PPM signal synchronization output to the servo.
Press the Select button
S-1 manual mode (Manual)
S-2-bit mode (Neutral)
S-3 automatic mode (Auto)
Technical Specifications
50H analog servo signal cycle 20us frequency 50HZ
125H digital steering gear one signal cycle 8us frequency 125HZ
250H Digital Servo signal cycle 4us frequency 250HZ
