HLK-RM08S Serial WIFI Development Kit

HLK-RM08S Serial WIFI Development Kit

HLK-RM08S Serial WIFI Development Kit, HLK-RM08S, interconverts between serial port, Ethernet and wireless network (WIFI) interfaces It has a built-in WiFi module, which conforms to universal serial interface-based networking standards, with built-in TCP/IP protocol stack, which can realize is not required.

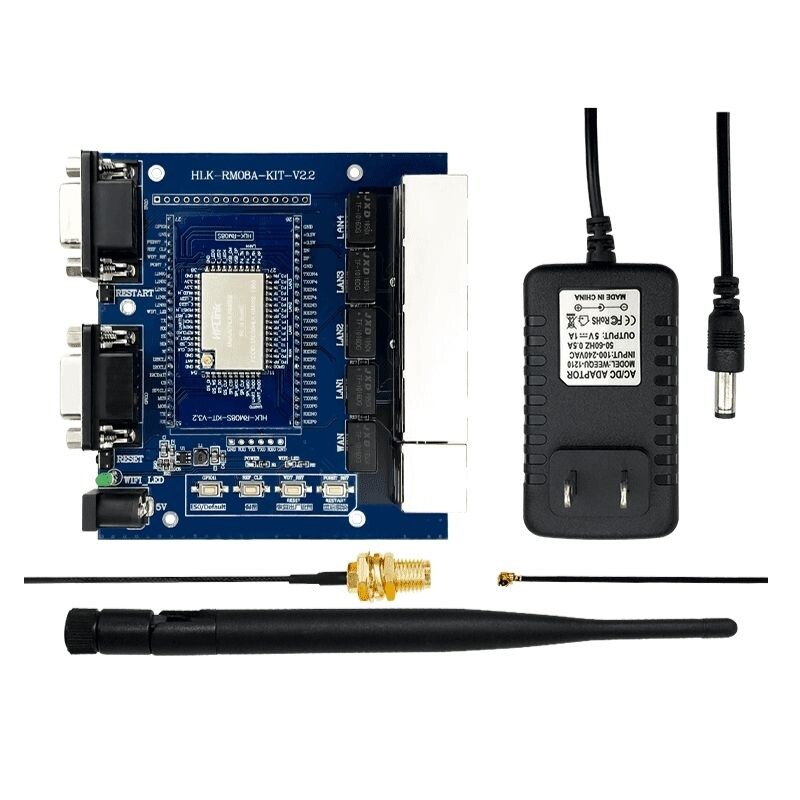

Kit Content

• HLK-RM08S Module
• 1x Adapter
• 1x Antenna
• 1x SMA to IPEX converter cable

Specifications

• Chip: MT7688KN
• Kernel: MIPS24KEc
• Frequency: 580MHz
• RAM: 64Mb
• Flash: 32Mb
• I-Cache, D-Cache : 64Kb, 32Kb
• 5 10/100M COM ports
• WIFI Standard: IEEE 802.11n/gb
• Communication Distance: 100m
• Wireless Transmission Speed;
  • 11n: max. 150Mbps
  • 11g: max. 54Mbps

  • 11b: max. 11Mbps
• Number of Channels: 1-11
• Frequency Range: 2.4-24835G
• Transmission Power: 15 -20DBM
• WIFI Working Modes: Wireless network card/wireless access point/wireless router
• Wireless Security;
  • Wireless MAC address filtering
  • Wireless security function key
  • 64/128/152 bit WEP encryption
  • WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
• Network Management;
  • Remote web management
  • Configuration file import and export
  • WEB software upgrade
• Module Size: 17.8mmx25.8mm

Module Pinout

Diagram

Card Interface
