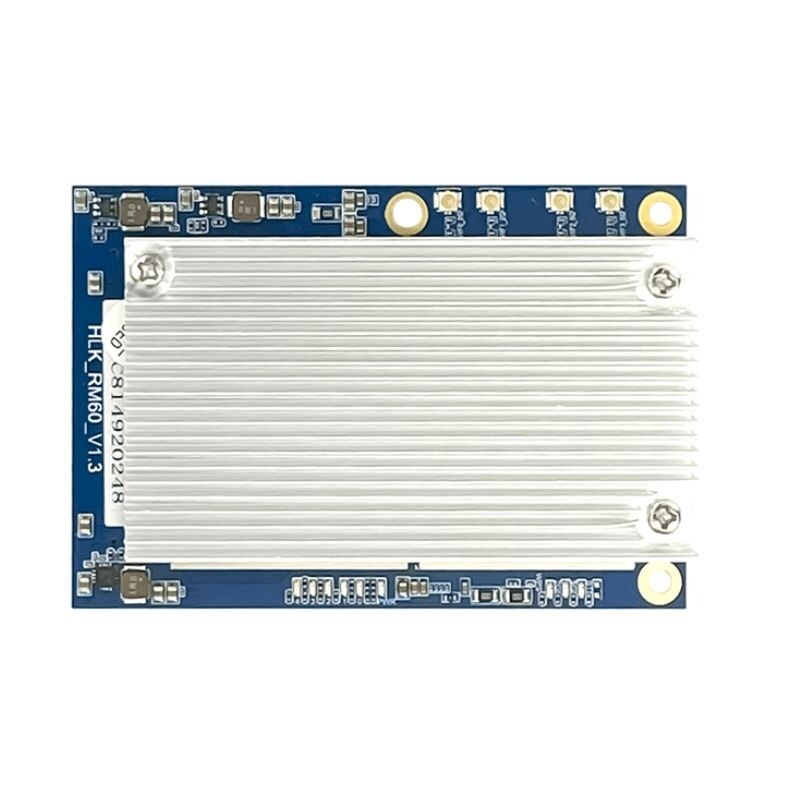

HLK-RM60 WIFI 6 Openwrt Wireless Router Module is a high-performance built-in WIFI6 module. . The module complies with IEEE standard 802.11a/b/g/n/ac/ax. The module integrates a 2.4G/5.8G radio frequency transceiver with transmission speed.
Usage Fields: Smart home, instrumentation, Wi-Fi Remote monitoring/control, Color LED control, Smart card terminals, wireless POS machines, handheld devices, etc.
Connect the computer's network port and the module's LAN port, open the computer browser, Enter 192.168.16.254,
and you will enter the web login interface, enter the username: root, password: admin, and then click the Login button.
Configuration as shown in the image You must have entered the interface.
After entering the web configuration interface, click WIFI, Select WIFI configuration, enter wifi configuration interface;
In this interface, you can see the 2.4g and 5.8g WiFi name and mac address, click the configuration button to enter.
After clicking the Config button, you will enter the configuration interface of the relevant ssid and password.
After the configuration is completed, the configured Click the button below for the information to take effect.
