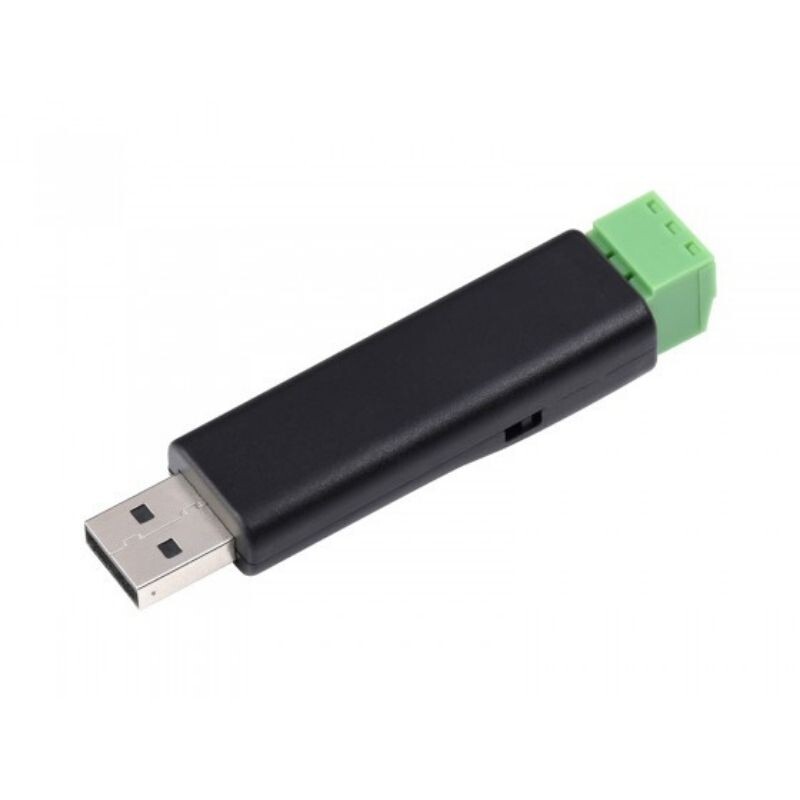

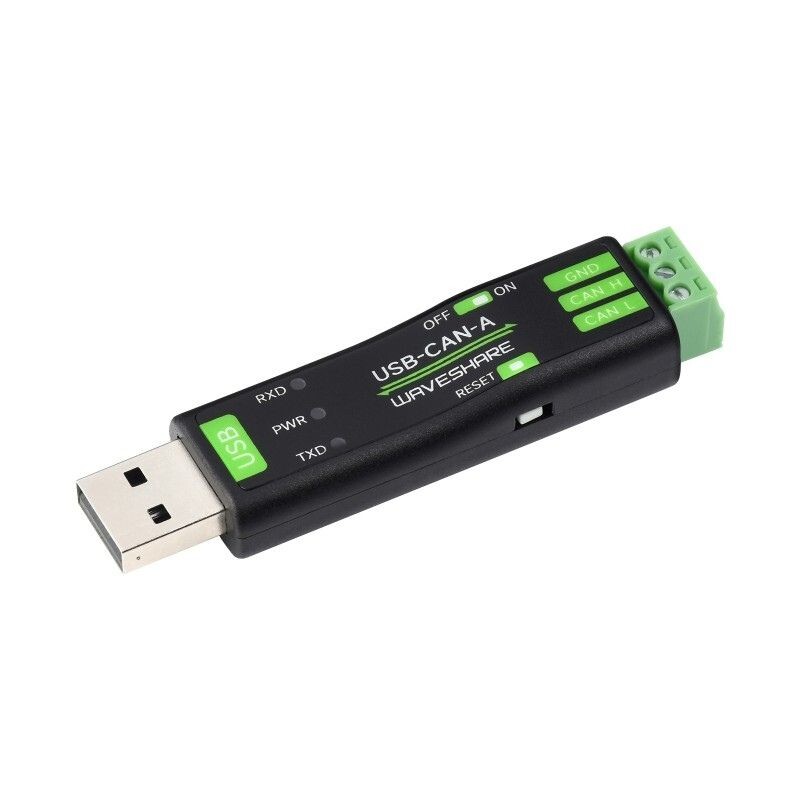

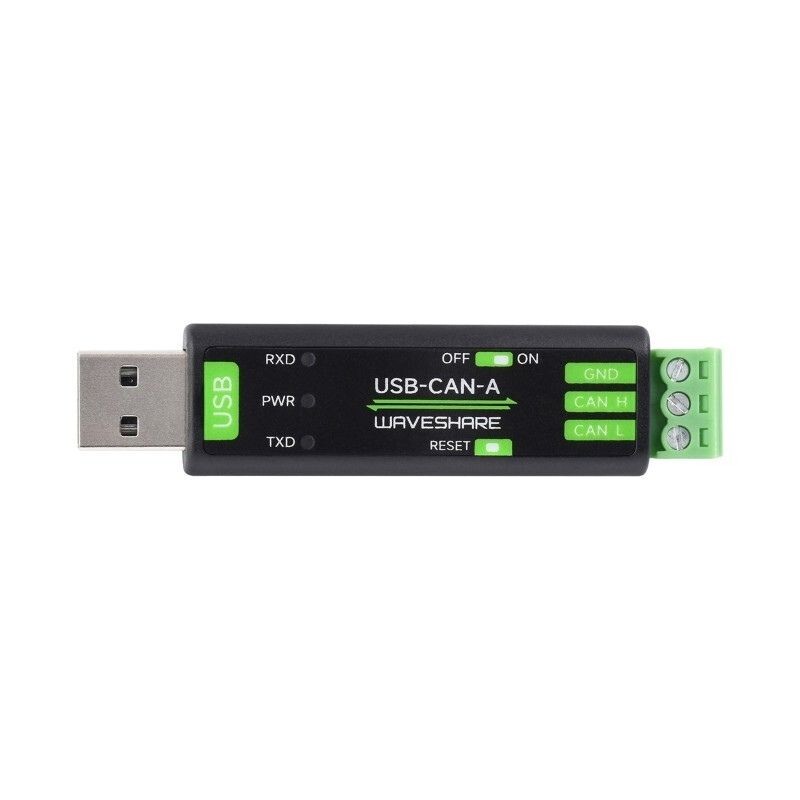

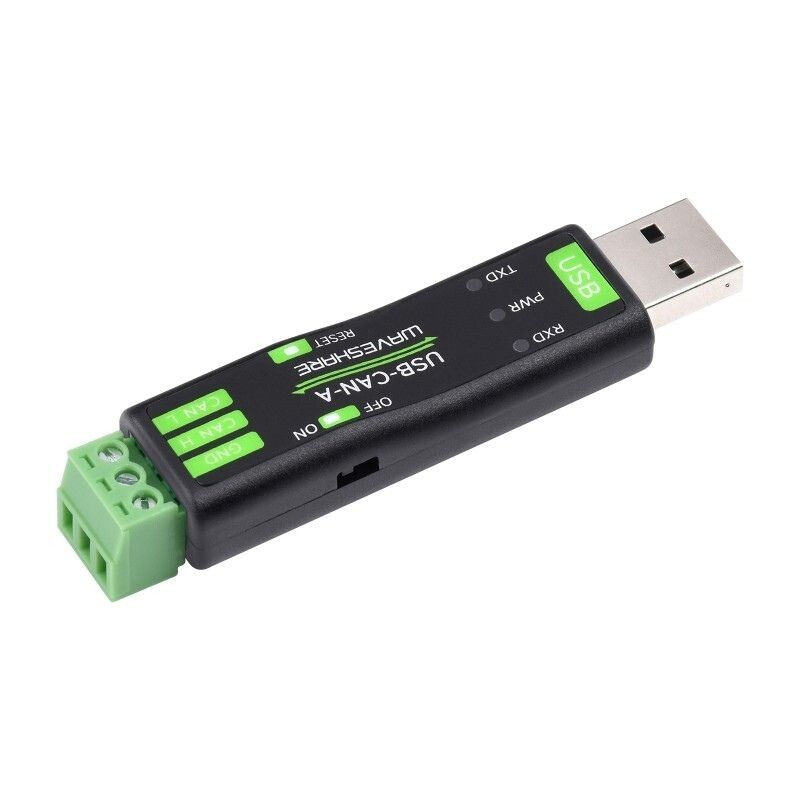

Industrial USB to CAN Model A STM32 Converter Module

Industrial USB to CAN Model A STM32 Converter Module

Industrial USB to CAN Model A STM32 Converter Module is mainly used to collect data from CAN bus to PC via USB for transmitter-receiver control, data analysis, acquisition and monitoring of CAN bus network. Supports Linux systems such as Raspberry Pi OS and Ubuntu under Windows XP/7/8/10/11 and Jetson Nano, supports secondary development.

For detailed information, please visit wiki.

Features

• Supports CAN2.0A (standard frame) and CAN2.0B (extended frame).
• CAN baud rate can be configured within 5Kbps-1Mbps.
• Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode.
• Supports multiple CAN data transmission modes: single frame, multiple frames, manual, regular and cyclic sending.
• Supports multiple CAN data receiving modes: can be configured to receive data only from a specific ID, or an ID can be specified to automatically respond to configured data.
• Data can be saved as TXT or Excel.
• Supports CAN bus detection to check status.
• Send/receive CAN data with time scale, allows sequential display.
  The baud rate of USB virtual COM port can be configured within the range of 9600~2000000bps (2000000bps by default).
• Supports setting working parameters by configuration software or serial command, can be saved after power off.
• Adopts STM32 chip solution, stable and reliable communication.
• Built-in TVS (Transient Voltage Suppressor), circuit surge voltage and transient spikes effectively suppressed.
• Comes with host software for Windows system, easy to use.
  Easy secondary development, only need to modify the send and receive commands.
