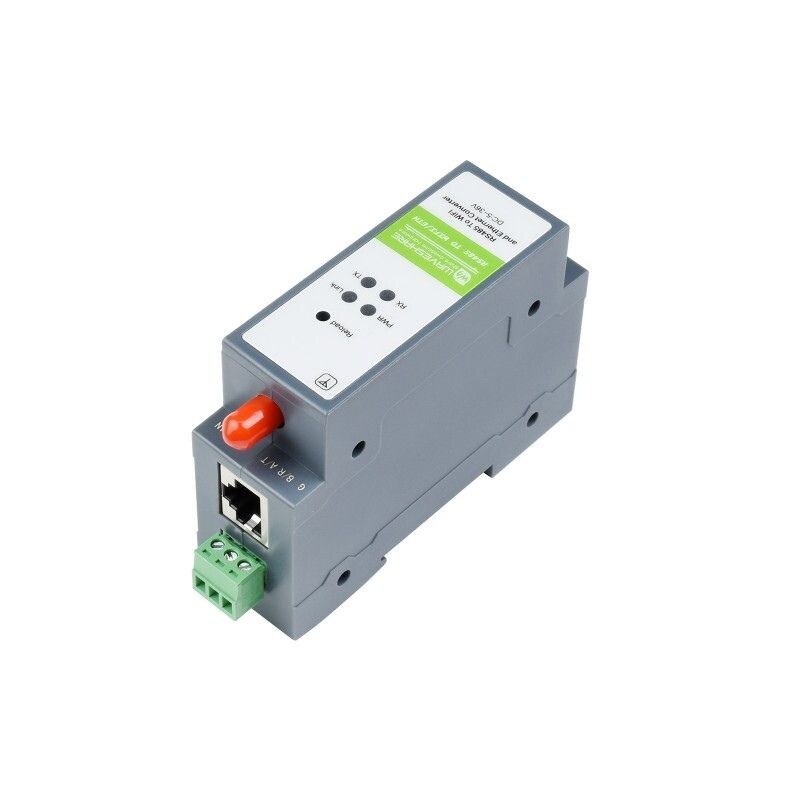

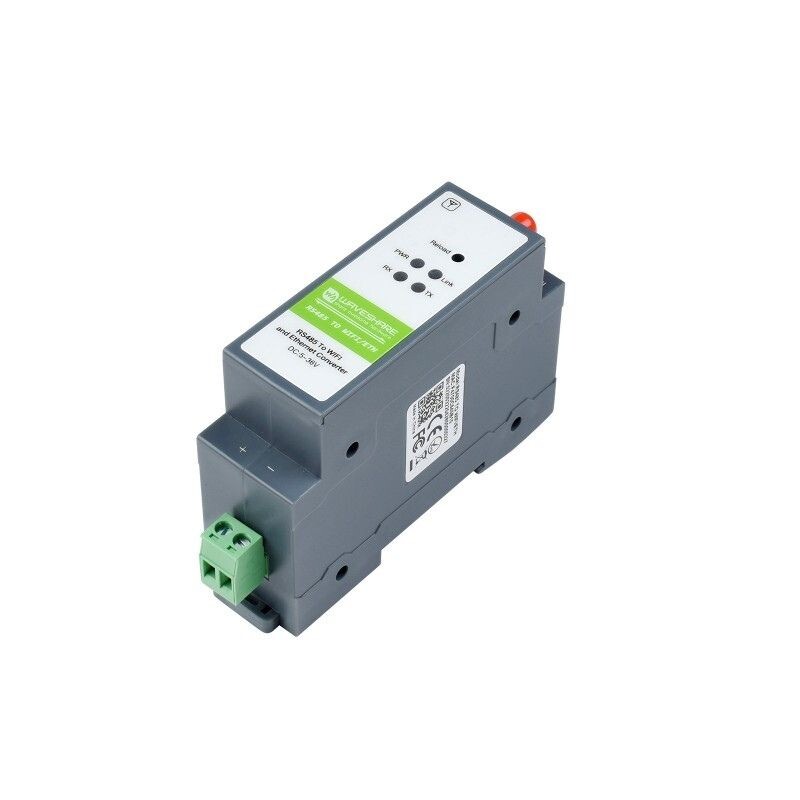

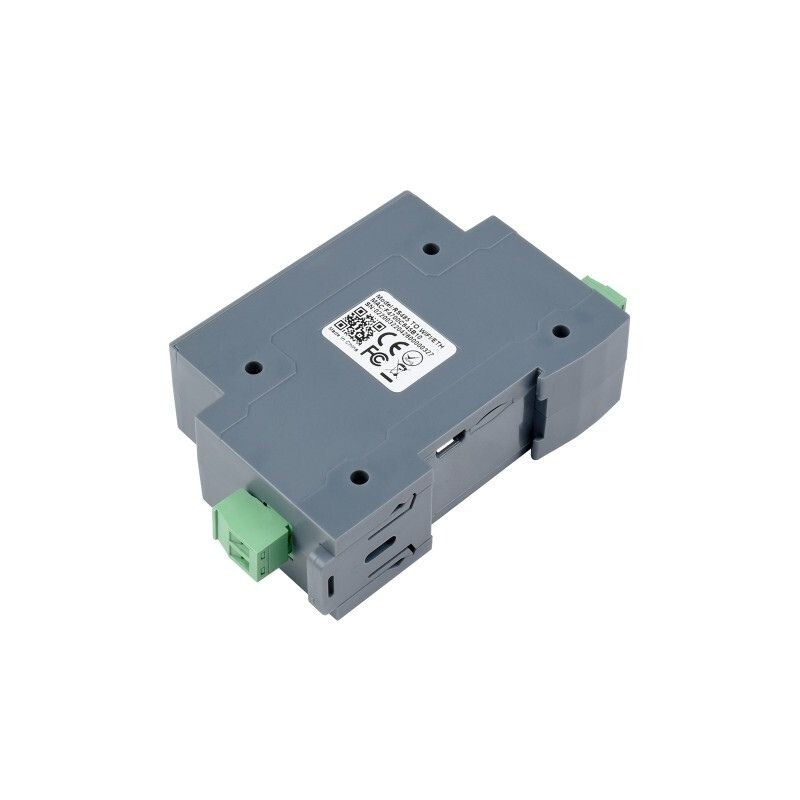

Industrial RS485 - WIFI/Ethernet Module - Rail Mount Serial Server

Industrial RS485 - WIFI/Ethernet Module - Rail Mount Serial Server

Industrial RS485 - WIFI/Ethernet Module - Rail Mount Serial Server is an RS485 device data collector/IoT gateway designed for industrial environments. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial-to-WIFI, serial-to-Ethernet, Ethernet-to-WIFI, etc. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mounted V0 flame retardant case design, small size, easy to install. It is suitable for applications such as data collection, IoT gateway, security and safety IoT and smart device monitoring.

For detailed information, please visit  wiki page.

Features

• Powered by 5 ~ 36V DC.
• SKU: 21968
• Ethernet 10 / 100M auto-negotiation RJ45 connector
• WIFI: 802.11b/g/n
• Serial port RS485 interface (Anti-surge, Lightning-proof, Over-current protection)
• Frequency Range: 2.412 ~ 2.484 GHz
• Wireless Network: Station / AP / AP+Station
• Protection Mechanism: WPA-PSK / WPA2-PSK
• Encryption type: TKIP / AES
• Transmission power
  • 802.11b: +19dBm (Max.@11Mbps)
  • 802.11g: +18dBm (Max.@54Mbps)
  • 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)


• Reception sensitivity
  • 802.11b: -89dBm (@11Mbps)
  • 802.11g: -81dBm (@54Mbps)
  • 802.11n: -73dBm (@HT20, MCS7 ); -71dBm (@HT40, MCS7)
• Baud rate: 300 ~ 460800 bps
• Parity bit: none, odd, even, mark, space
• Data bit: 5 ~ 9 bits
