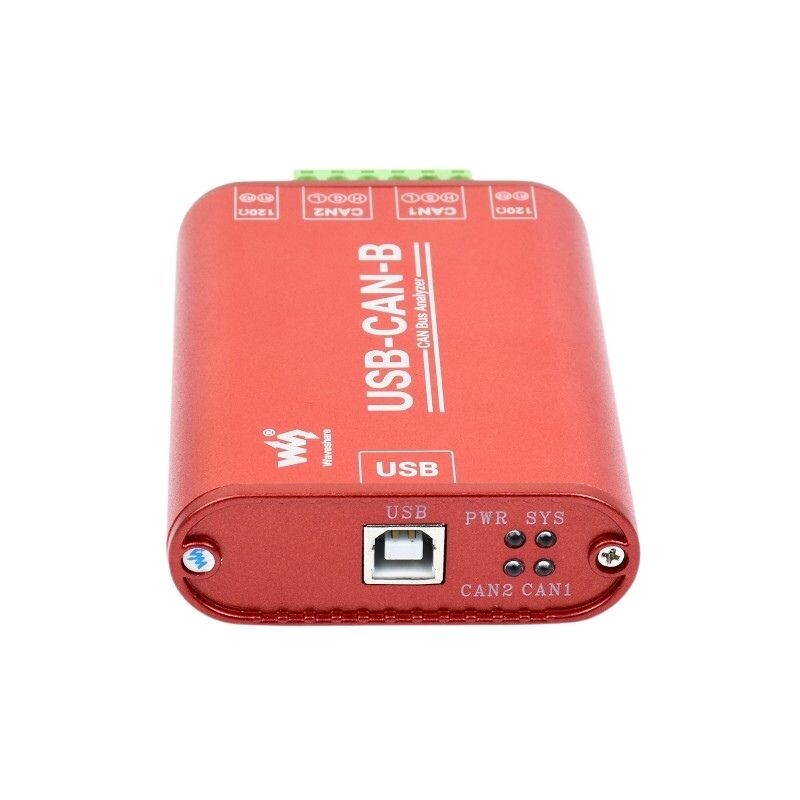

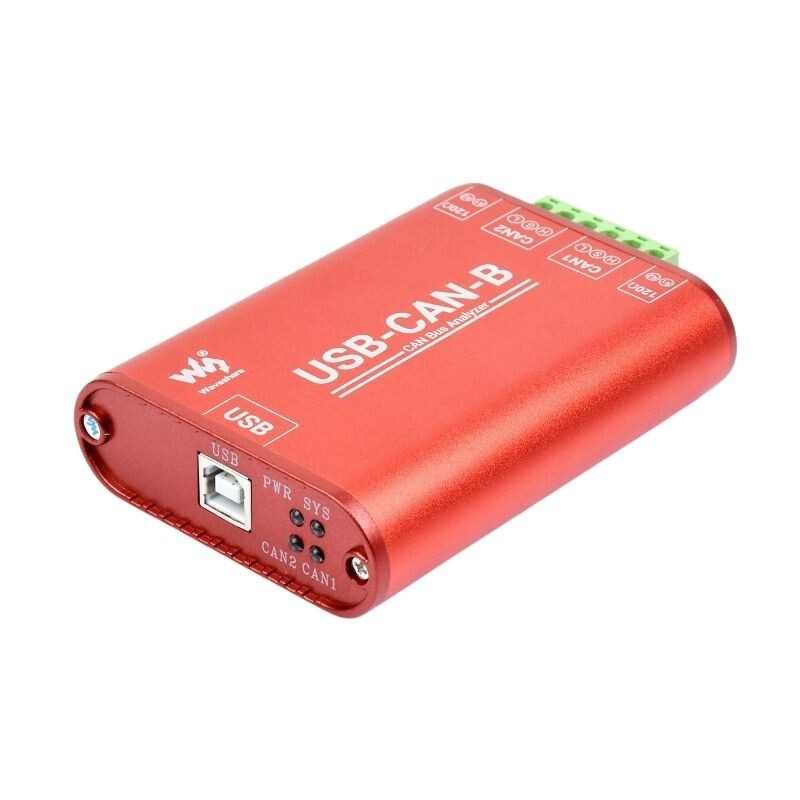

Industrial USB to CAN Converter - Dual Channel CAN Analyzer

Industrial USB to CAN Converter - Dual Channel CAN Analyzer

Industrial USB to CAN Converter - Dual Channel CAN Analyzer is an industrial high-performance USB-CAN adapter, CAN-bus communication interface card and CAN protocol data analyzer. It integrates dual independent channels with electrical isolation and multiple protection circuits. It supports Windows and Linux systems, and comes with drivers, CANTools related software, secondary development examples and tutorials. It can be connected to a PC or industrial control host via a USB port to realize transceiver control, data analysis, acquisition and monitoring of CAN bus network. This product, which is compact in size and easy to use, can be used for learning and debugging CAN bus and for secondary development and integration into various industrial, power communication and intelligent control applications that require CAN bus communication.

For detailed information, you can visit  wiki page.

Features

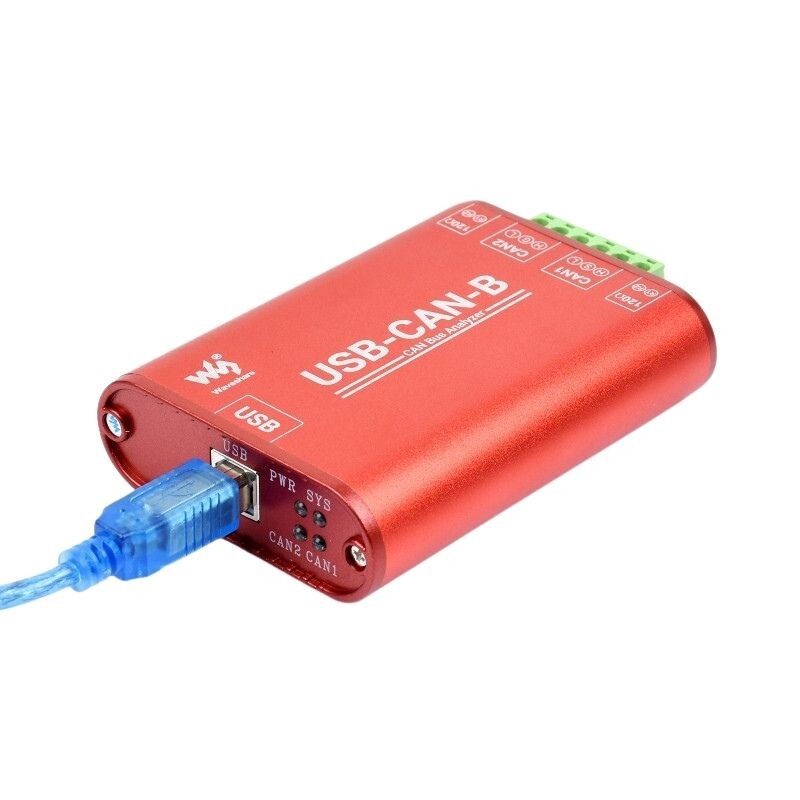

• It is supplied with 5V from USB-B Port.
• SKU: 22773
• CAN/CAN FD Channels: Dual channel: CAN1 and CAN2 (Independent, do not affect each other, full isolation, isolation voltage 3000V DC.)

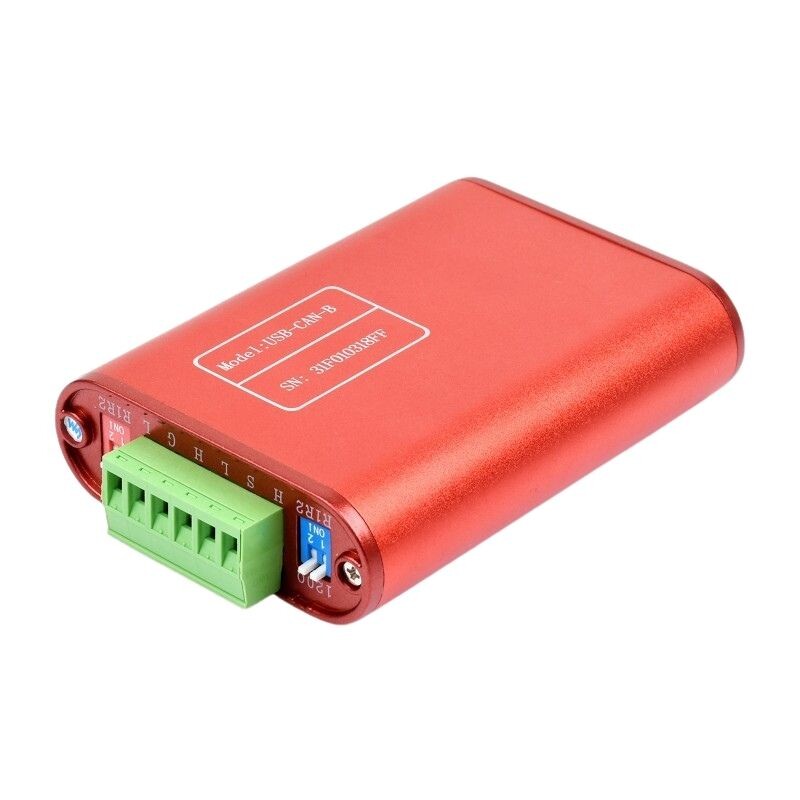

• Interface Form: Terminal Terminal (OPEN6 5.08mm)
• Baudrate: 10Kbps~1Mbps (Adjustable by software)
• Supported Protocols: CAN2.0A and 2.0B, CANOpen, SAE J1939, DeviceNet, iCAN, ISO 15765
• Transfer Rate: Each CAN/CAN FD channel's receiving and sending rate can reach 8500 frames/s
