USB to UART/I2C/SPI/JTAG Converter

USB to UART/I2C/SPI/JTAG Converter

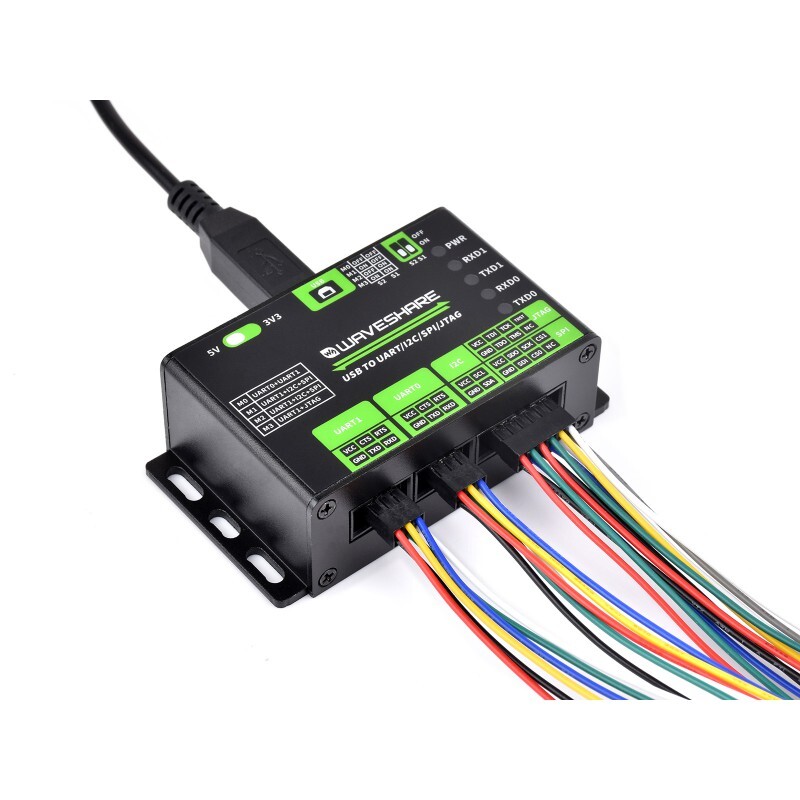

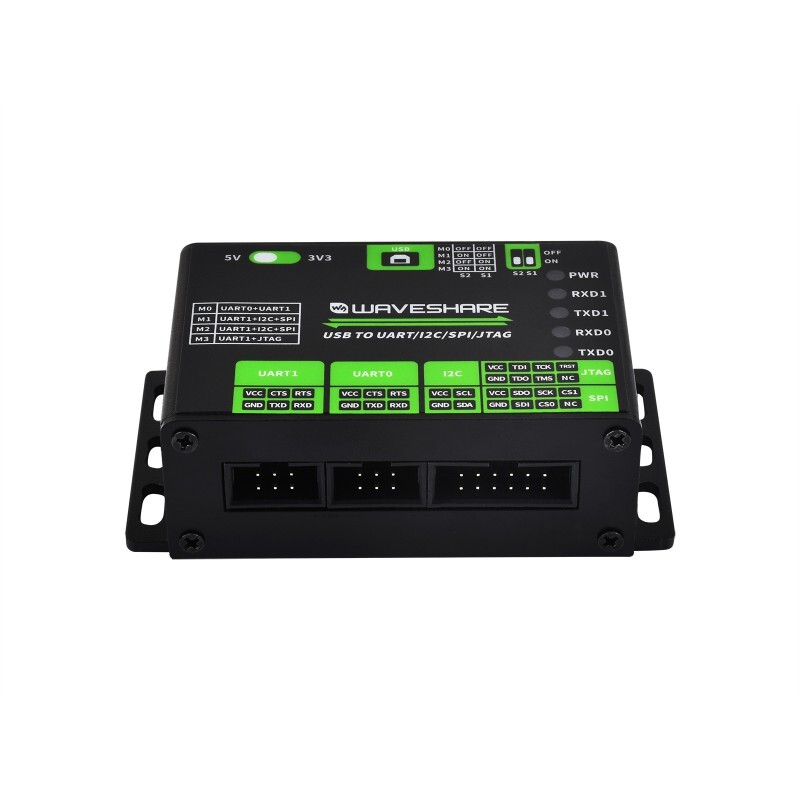

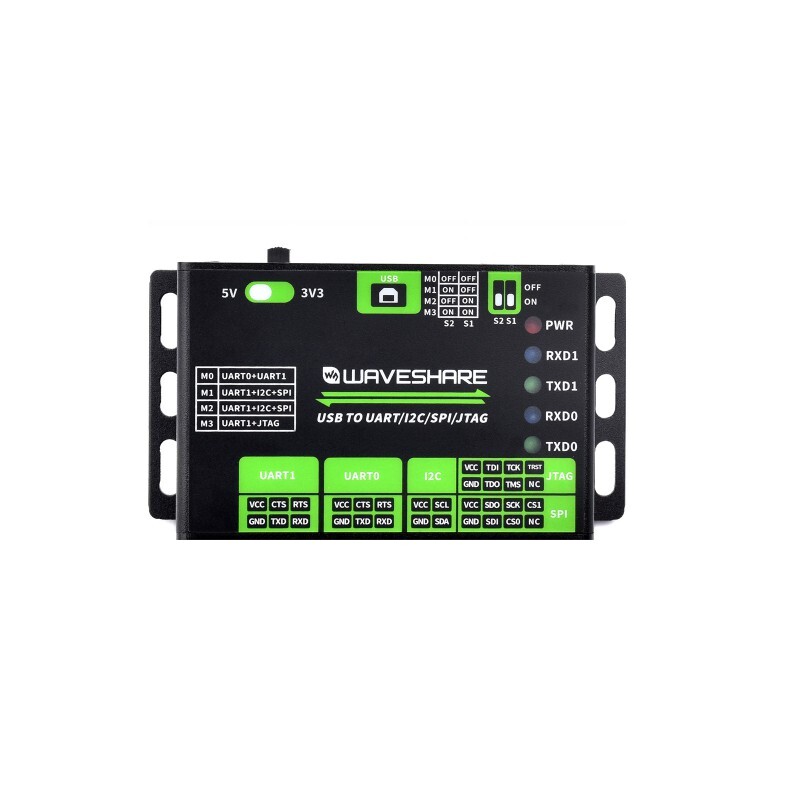

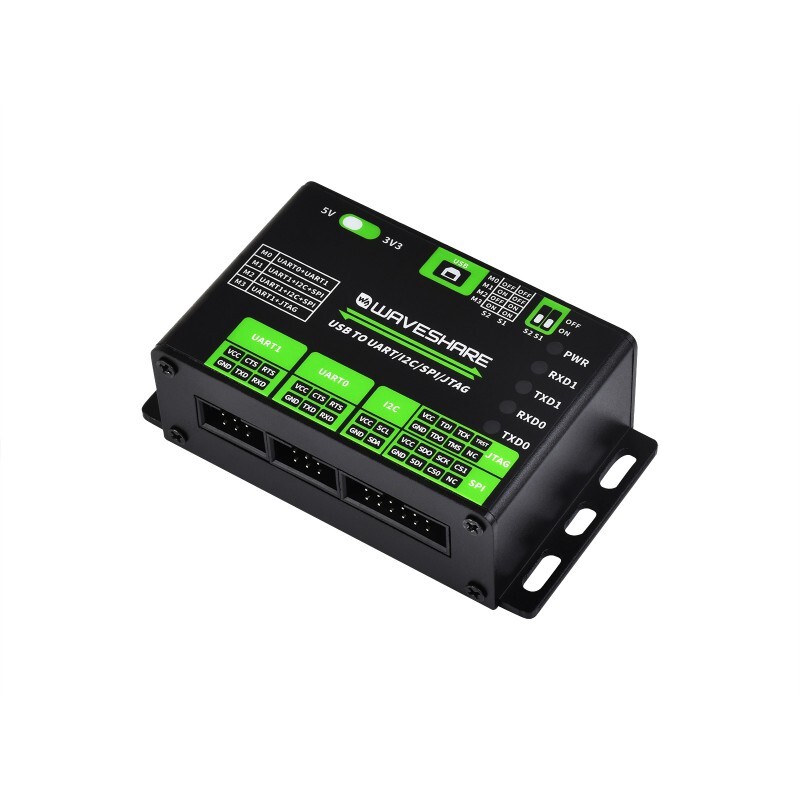

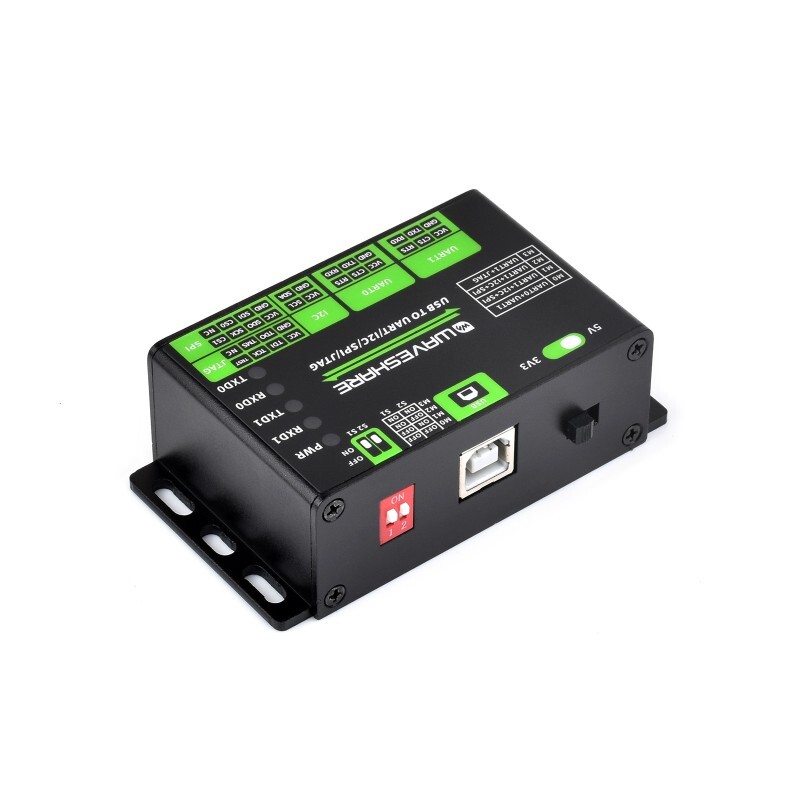

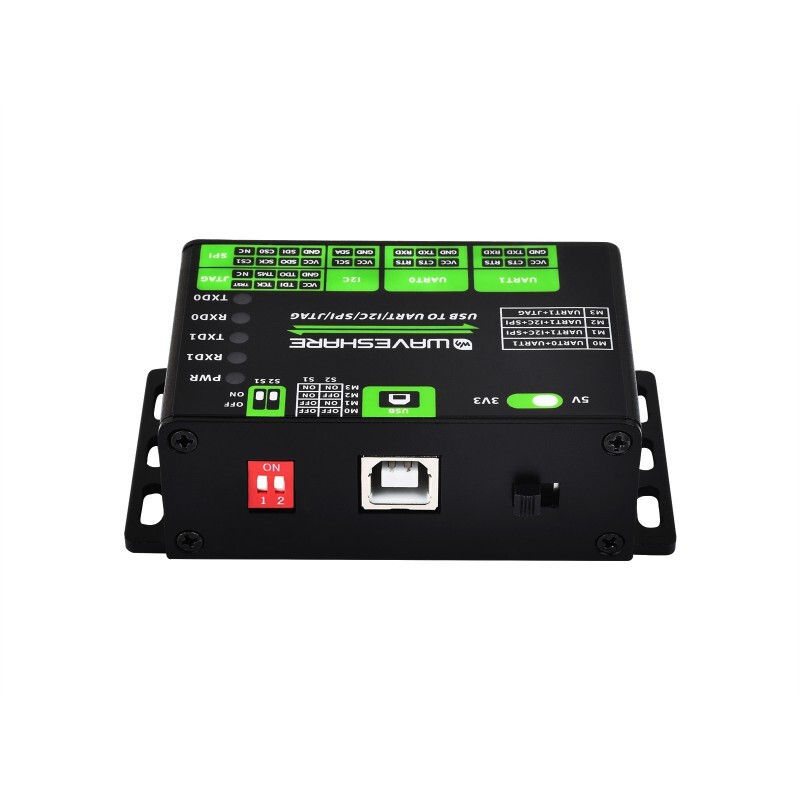

USB to UART/I2C/SPI/JTAG Converter, USB to 2-channel UART Supports up to 1-channel UART + 1-channel I2C + 1-channel SPI from USB or 1-channel UART + 1-channel JTAG from USB. 9 Mbps baud with CTS and RTS hardware automatic flow control Supports 2-channel high-speed UART interfaces up to Supports 1-channel SPI interface with 2x chip select signal pin.
Supports 1-channel JTAG interface, can be used with OpenOCD for debugging and testing. (Due to limited testing of chips and software functions, users need to evaluate and test this function by themselves)
Built-in 3.3V and 5V level conversion circuit to change the operating level of the communication interface, has better compatibility.
Built-in Resettable fuse and ESD protection circuit ensure overcurrent/overvoltage resistant, safe and stable communication.

Specifications

• Supply Voltage: 5V (USB TYPE-B)
• UART;
  • Number of Channels: 2
  • Connector: 6 Pin IDC
  • Baudrate: 1200bps ~ 9Mbps< /li>
• I2C
  • Number of Channels: 1
  • Connector: 12 Pin IDC
  • SPI
• Number of Channels: 1
• Connector: 12 Pin IDC
• JTAG

  • Number of Channels: 1
  • Connector: 12 Pin IDC

Guide

Size
