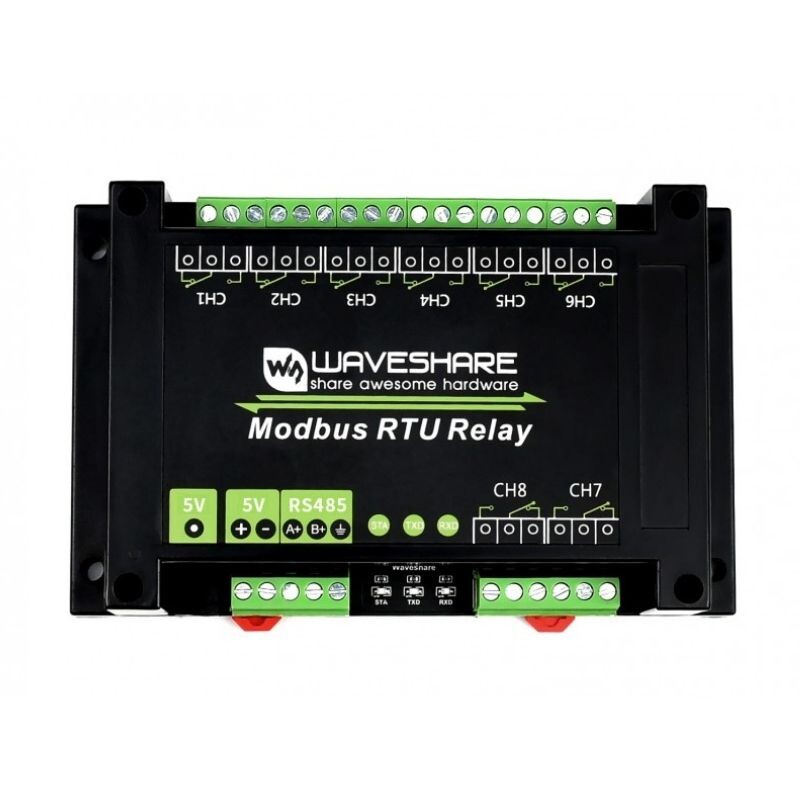

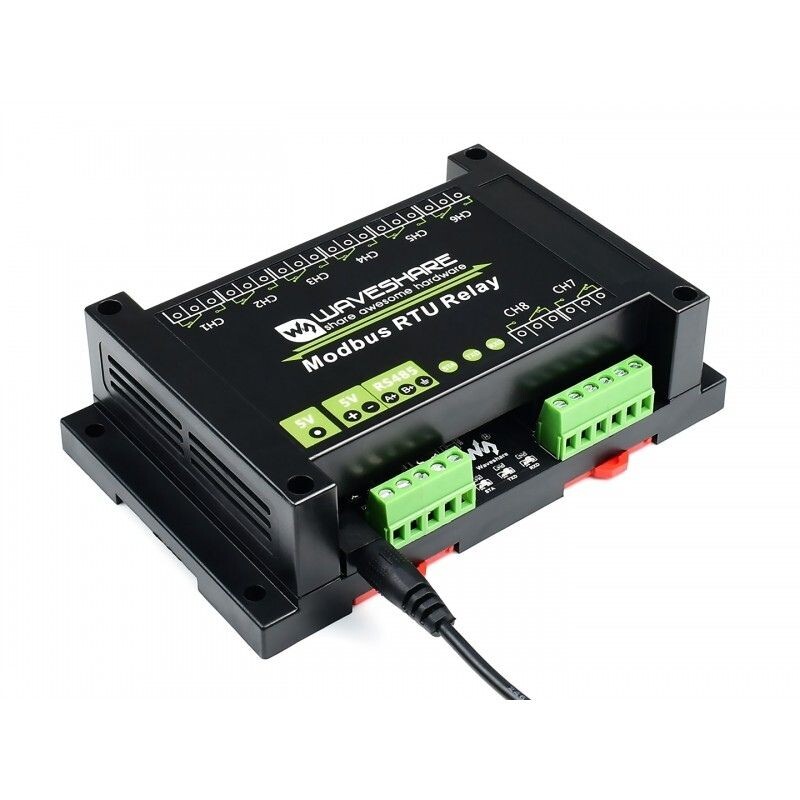

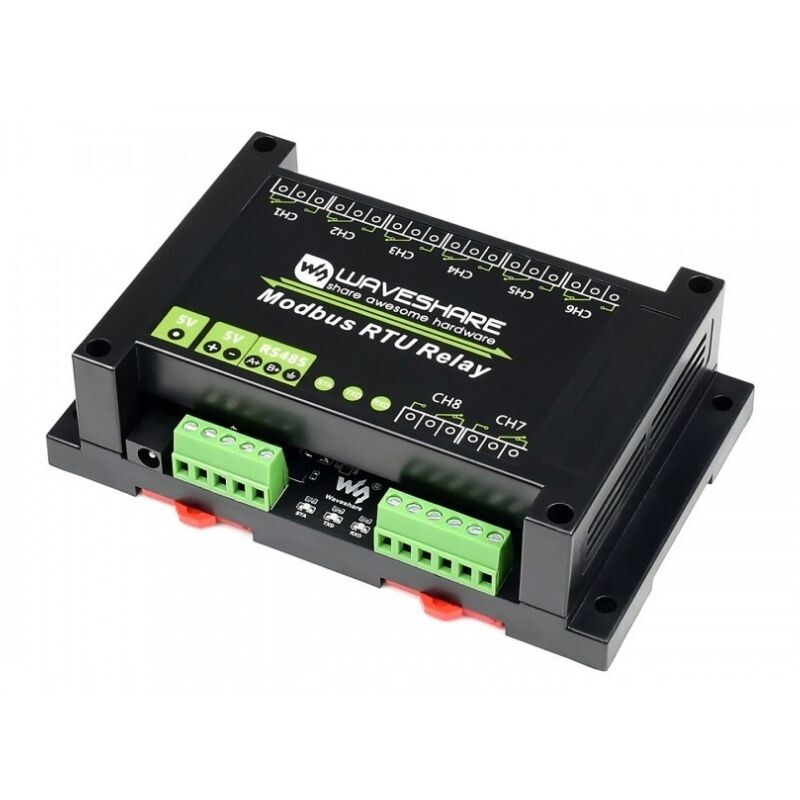

Industrial 8 Channel Modbus RTU Relay Module - RS485 Interface is an industrial 8 channel relay module controlled via RS485 bus using Modbus RTU protocol. It has built-in protection circuits such as power isolation, magnetic isolation and TVS diode. It also comes with an ABS housing. The Modbus RTU Relay is very easy to use. Due to its fast communication, stability, reliability and security, it is an ideal choice for industrial control equipment and/or applications with high communication requirements.

For detailed information, please visit  wiki page.

Features

• Configurable device address (1~255), multiple devices can be connected to RS485 bus
• SKU: 17658
• Has flash-on, flash-off function, by passing argument to command, the relay can be turned on for a while and then automatically turned off
• Built-in one-piece power supply isolation, provides stable isolated voltage, no need for extra power supply for isolated terminal
• Built-in one-piece magnetic isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption
• Built-in resettable fuse and TVS (Transient Voltage Suppressor) effectively suppress overvoltage and transient surge voltage in the circuit, provide overcurrent/overvoltage protection, lightning-proof and anti-electrostatic
• Built-in Optocoupler isolation, prevents the relay from being interfered by high voltage circuit
• Reverse protection circuit, prevents the circuit from being accidentally damaged by wrong connection
• High-quality relay, contact rating: ≤10A 250VAC/30VDC

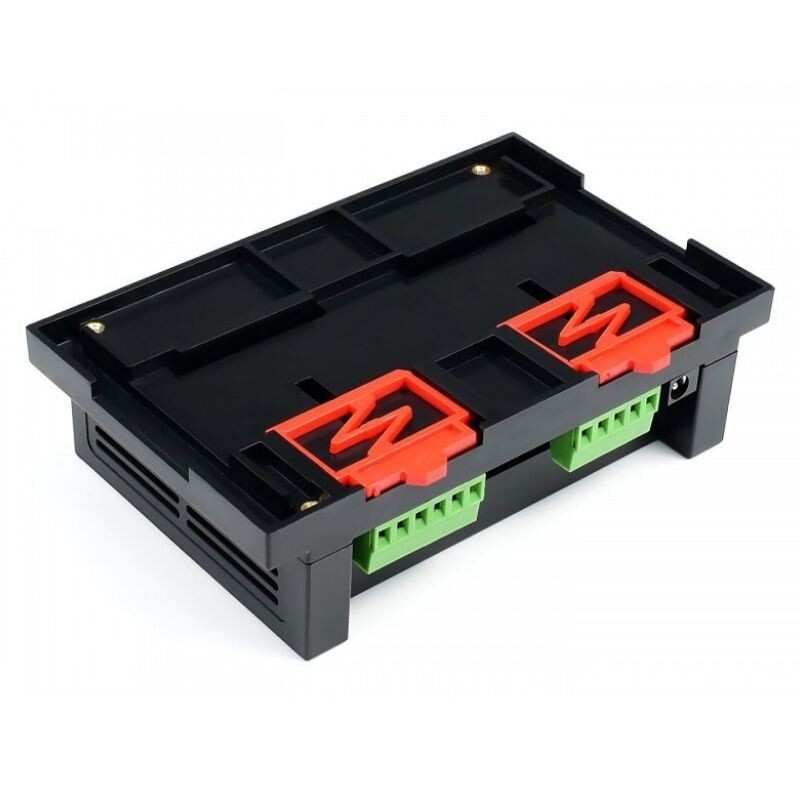

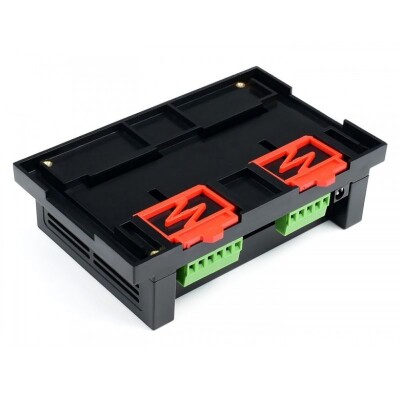

• Rail-mounted ABS plastic housing, easy to install, safe to use
• MCU status and 3 LEDs showing the signal transmission status com/resim/Modbus-RTU-Relay-details-size.jpg" alt="Modbus-RTU-Relay-details-size" width="960" height="1000" />
