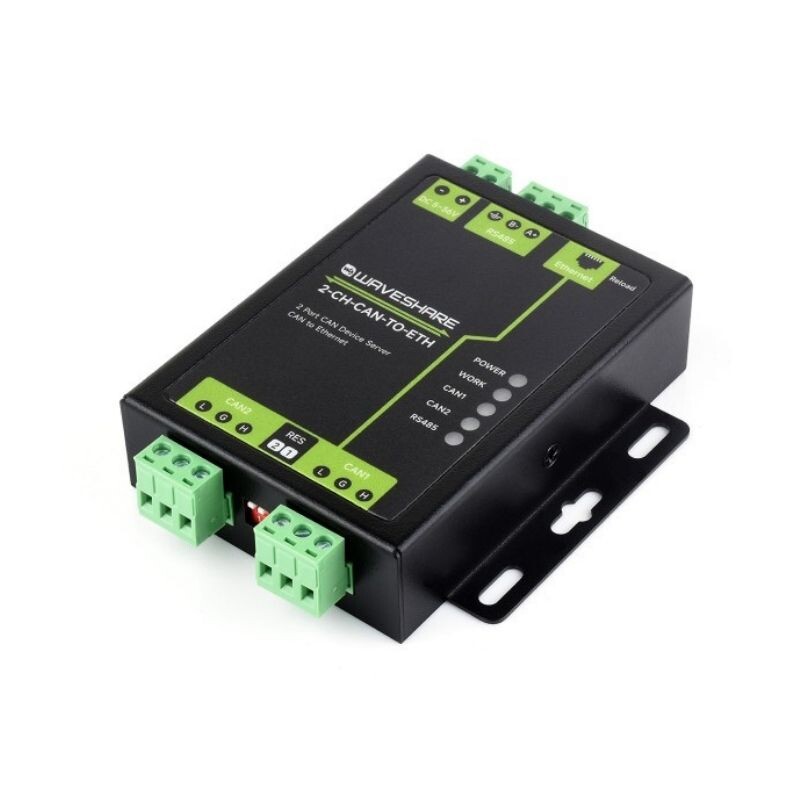

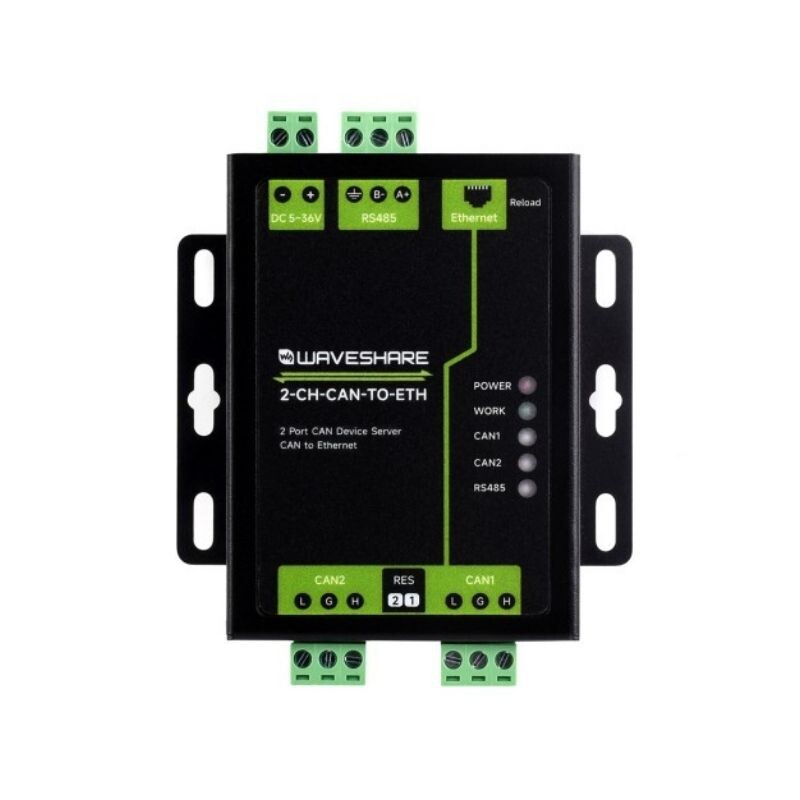

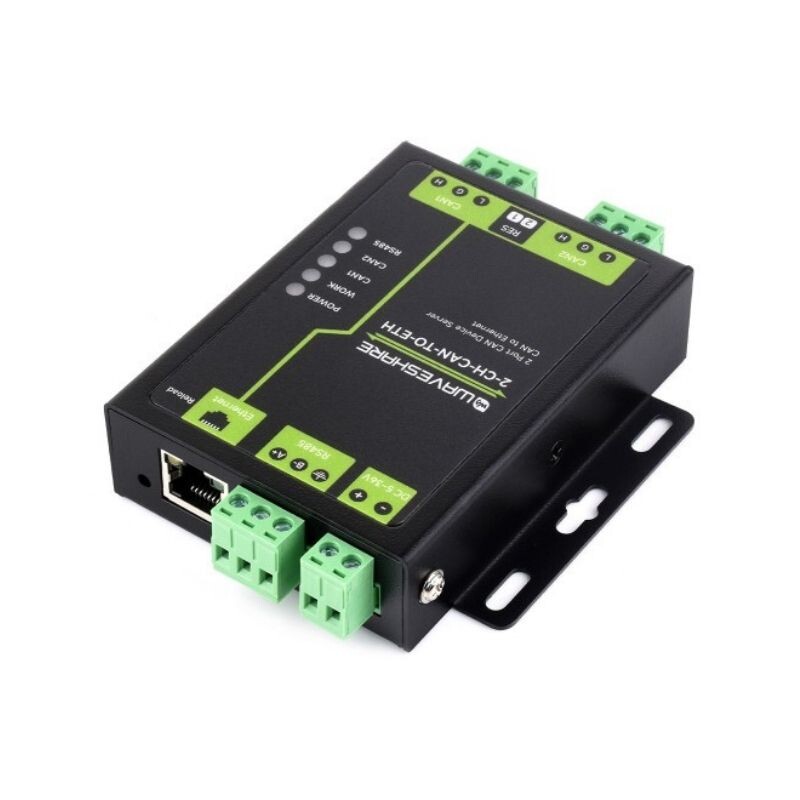

Industrial Grade 2 Channel CAN - Ethernet Server
The Industrial Grade 2 Channel CAN - Ethernet Server is a CAN bus - Ethernet port server to realize data communication between CAN device and network server. The built-in 2-ch CAN ports, 1-ch Ethernet port and TCP/IP protocol stack, extend the CAN-bus network range by providing connection and communication between CAN-bus and Ethernet. The industrial grade metal case design supports wall-mounted installation, is compact in size, easy to install, and is widely used in building automation systems, industrial automation systems, power monitoring, etc. such applications.
For detailed information, you can visit wiki page.
Features
- Advanced CAN, serial ports, Ethernet ports and power supply protection, upgraded hardware protection, suitable for more harsh industrial environments.
- Upgraded ARM core, industrial-grade operating temperature range, advanced TCP/IP protocol stack, stable and reliable.
- 10/100Mbps Ethernet port, Auto-MDI/MDIX support, Auto-MDI/MDIX support.
- Support CAN ID filtering function, multiple filtering methods, safer and more convenient.
- Support 2-channel SOCKET connection on one port.
- CAN baud rate: 10K~1Mbps; supports BASIC and LOOPBACK working method.
- Support static IP addresses or DHCP for automatic IP address assignment, and devices within the network can be queried using UDP broadcast protocol.
- Reload button, one key to restore the default setting, no need to worry about wrong setting.
- RJ45 with Link/Data indicator lights, external isolation transformer for network port, provides 1.5KV electromagnetic isolation. Only global MAC address (starts with D8-B0-4C).
- Supports firmware upgrade via network, easier to update firmware.
- Supports modification via webpage port (80 by default).
- Supports keep-alive mechanism, enables quick detection of dead links and other abnormalities, facilitates quick reconnection.
- Supports account and password authentication for enhanced security, applicable to webpage login and network settings.
- The power interface adopts 5.08-2 wiring terminals, supporting wide voltage input (5~36V).
- CAN relay function.
- Supports CAN to 485.
