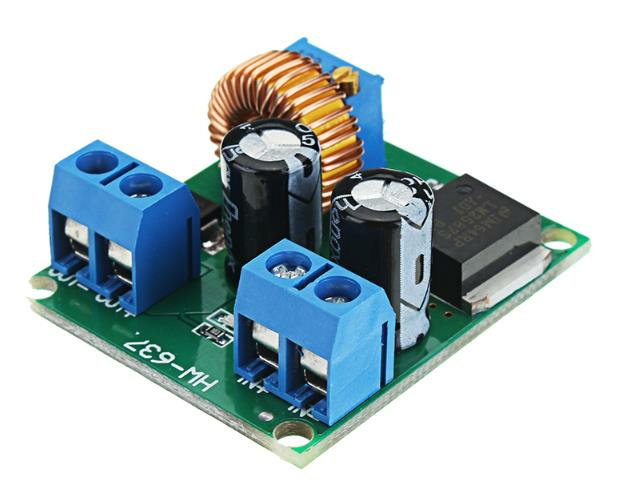

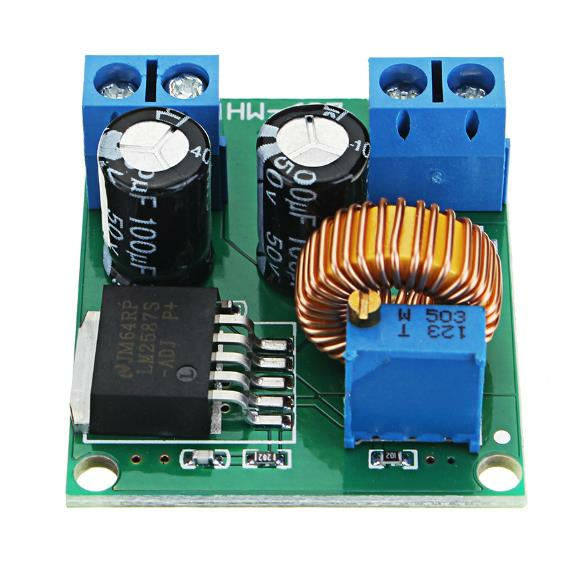

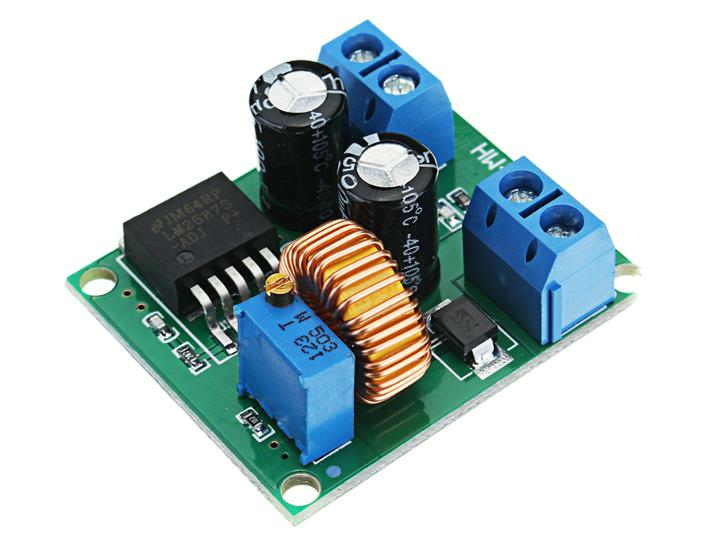

LM2587 DC-DC 3.5 - 30V Voltage Booster Module

The input voltage of the LM2587 voltage regulator should be 3.5V-30V and the output voltage should be 4.0V-30V. The maximum input current is 5A. The efficiency of the module is 92%.

When you test, if the output voltage is not higher than the input voltage, turn the potentiometer clockwise, the output voltage will rise. If you turn it counterclockwise, the module will be damaged due to high input voltage.

Input voltage range: 3.5V-30V (Make sure the output voltage is higher than the input voltage)

Output voltage range: 4.0V-30V

Input maximum current: 5A

Continuous Current: 3A
