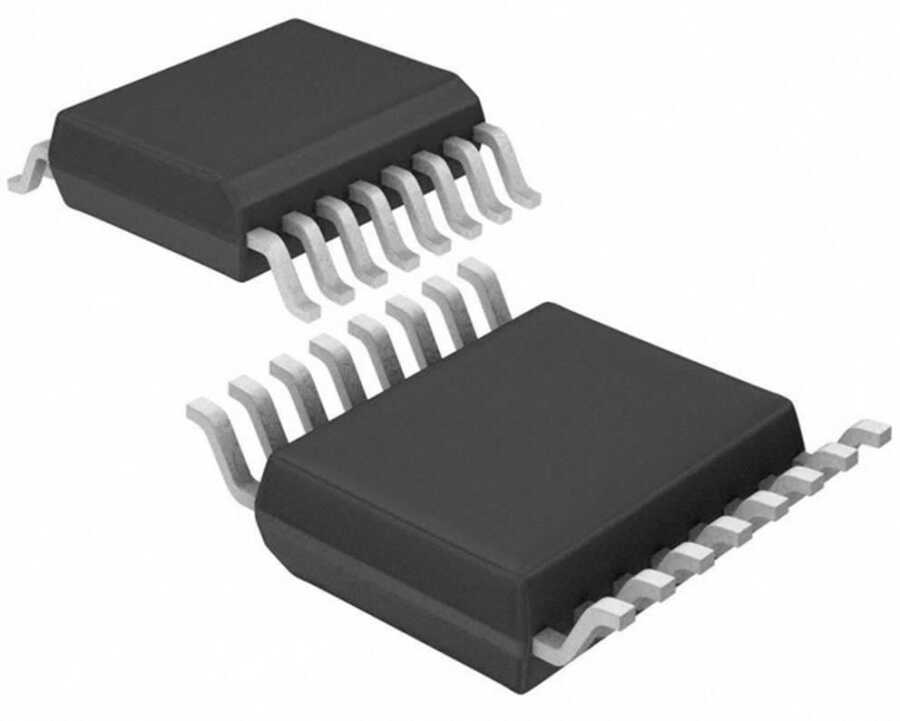

MAX232CWE+ WSOIC-16 SMD RS Serial Protocol Integrated
MAX232CWE+ is a multi-channel RS-232 Driver/Receiver powered by +5V. Driver/receiver, all EIA/TIA-232E and V.28/V.24 communication interfaces are specifically designed for applications where ±12V is not available. The MAX232CWE+ includes dual charge pump DC-DC voltage converters, RS-232 drivers, RS-232 receivers, and receiver and transmitter enable control inputs. The receiver inputs withstand an input overvoltage of up to ±25V and provide input termination resistors with nominal values of 5kR. Receivers apply type 1 interpretation of V.28 and EIA/TIA-232E fault conditions.
Usage Areas
● Interface Translation
● Multidrop RS-232 Networks
● Portable Diagnostic Equipment
| Series |
MAX232CWE |
| Supply Voltage |
4.5-5.5V |
| Data Rate |
120 kb/s |
| Number of Recipients |
2 Recipients |
| Number of Drives |
2 Drive |

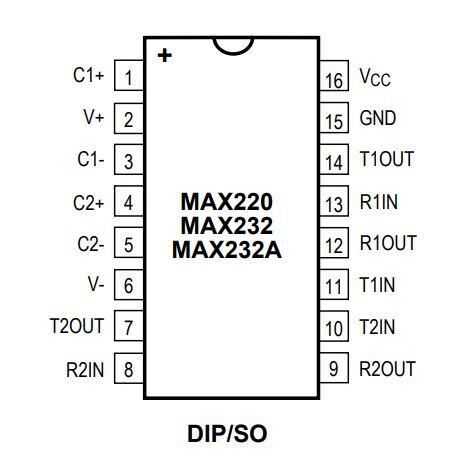

| Number of Pins |
16 |
| Package Type |
WSOIC-16 |
