MAX6675 SOIC-8 SMD Temperature Sensor IC
The MAX6675 performs cold junction compensation and digitizes the signal from a type K thermocouple. Data is output in a 12-bit resolution, SPI-compliant, read-only format. This transducer resolves temperatures to 0.25 °C, allows readings up to +1024 °C, and exhibits thermocouple accuracy of 8LSB for temperatures ranging from 0 °C to +700 °C.
| Series |
MAX6675 |
| Supply Voltage |
3-5.5V |
| Detection Accuracy Range |
± 3°C |
| Detection Temperature |
0°C - +1024°C |
| IC Output Type |
Digital |

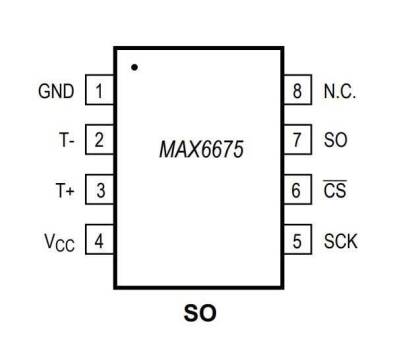

| Number of Pins |
8 |
| Package Type |
SOIC-8 |
