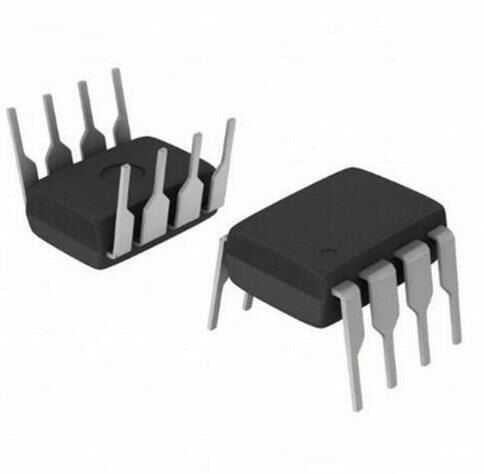

MCP6022-I/P DIP-8 OpAmp IC

MCP6022-I/P is an Operational Amplifier with a gain bandwidth product of 10MHz with a low typical operating current of 1.0mA and an offset voltage of less than 0.5mV. The MCP6022 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6022 operates on a single supply voltage that can be as low as 2.5V while drawing less than 1.35mA quiescent current.

Series	MCP6022
Supply Voltage	1.8-5.5V
Output Voltage	1.8-4.5V
Output Current	25 mA
Pd - Power Distribution	700mW
Number of Pins	8
Package Type	DIP-8
