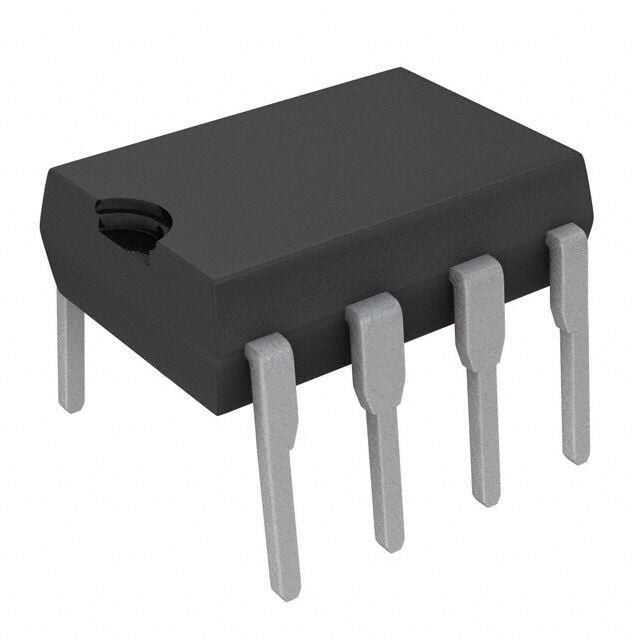

OP177GP DIP-8 OpAmp IC
OP177 has one of the highest precision performance of any operational amplifier currently available. The offset voltage of the OP177 is only 25 μV maximum at room temperature. The OP177's ultra-low VOS combines with an exceptional maximum offset voltage shift (TCVOS) of 0.3 μV/°C to eliminate the need for external VOS adjustment and improve system accuracy over temperature.
| Series |
OP177GP |
| Supply Voltage |
+/- 18 V - +/- 22 V |
| Bandwidth |
600 kHz |
| SR - Rotation Speed |
300 mV/us |
| Number of Channels |
1 Channel |
| Number of Pins |
8 |
| Package Type |
DIP-8 |
