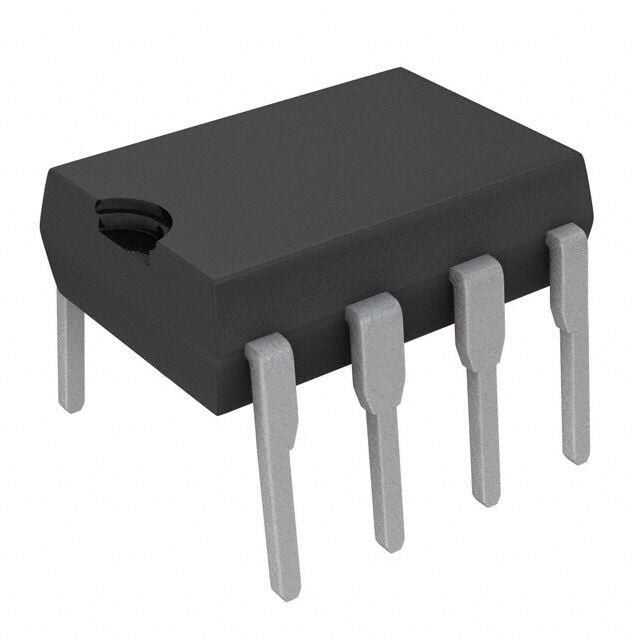

OP27G DIP-8 Audio Amplifier IC

The OP27 precision operational amplifier combines the low offset and shift of the OP07 with both high speed and low noise. Offsets of up to 25 µV and maximum drift of 0.6 µV/°C make the OP27 ideal for precision instrumentation applications. Low noise, en = 3.5 nV/√Hz at 10 Hz, low 1/f noise corner frequency of 2.7 Hz and high gain (1.8 million) allow accurate high-gain amplification of low-level signals. A gain bandwidth product of 8 MHz and 2.8 V/µs slew rate provide excellent dynamic accuracy in high-speed data acquisition systems.

Series	OP27G
Supply Voltage	-22V - 22V
Bandwidth	8 MHz
SR - Rotation Speed	1.7 V/us
Number of Channels	1 Channel
Number of Pins	8
Package Type	DIP-8
