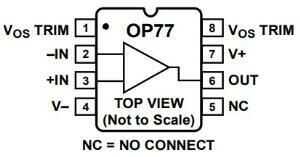

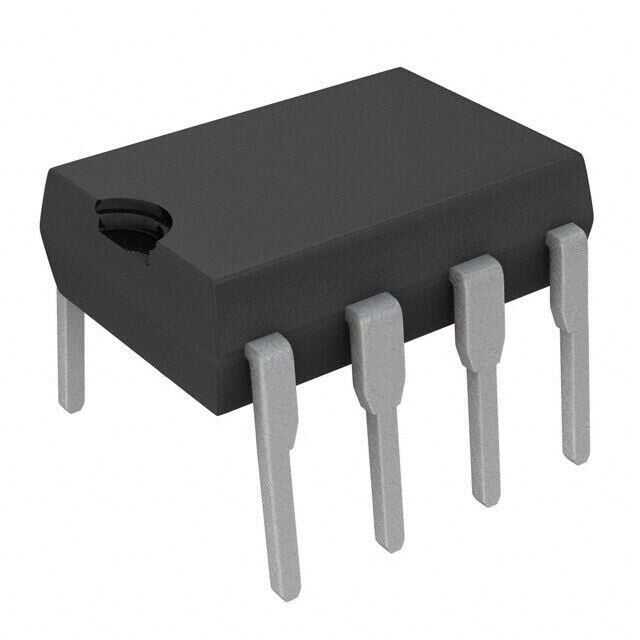

OP77 DIP-8 Offset Voltage Operational Amplifier

OP77 significantly advances the state of the art in precision op amps. The outstanding gain of 10,000,000 or more for the OP77 is maintained across the full 10V output range. This exceptional gain linearity eliminates erroneous system nonlinearities common in previous monolithic op amps and delivers superior performance in high closed-loop gain applications. Low initial VOS drift and fast stabilization time, combined with power consumption of only 50 mW, are significant improvements over previous designs. These features, along with an outstanding TCVOS of 0.3 μV/°C maximum and low VOS of 25 μV maximum, eliminate the need for VOS adjustment and increase system accuracy over temperature.
