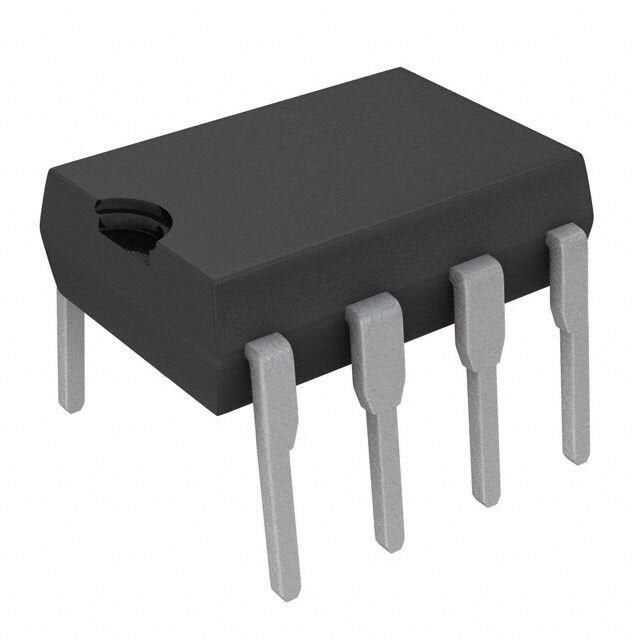

OPA177GP DIP-8 Operational Amplifier
OPA177 precision bipolar op amp has very low offset voltage and drift. Laser-trimmed offset, bias, and input bias current virtually eliminate the need for costly external clipping. High performance and low cost make them ideal for a wide variety of precision instrumentation. The OPA177's low quiescent current significantly reduces heating drift and errors caused by thermoelectric effects at the input interconnects. Chopper provides an effective alternative to stabilized amplifiers. OPA177's low noise maintains accuracy. OPA177 performance ratings are available. Packaging options include 8-pin plastic DIP and SO-8 surface mount packages.
Usage Areas
- Precision Devices
- Data Collection
- Test Equipment
- Bridge Amplifiers
- Thermocouple
Series |
OPA177GP |
Supply Voltage |
6 V - 36 V |
Bandwidth |
600 kHz |
Output Current (Channel Head) |
21 mA |
Number of Channels |
1
|
Number of Pins |
8 |
Package Type |
DIP-8 |
