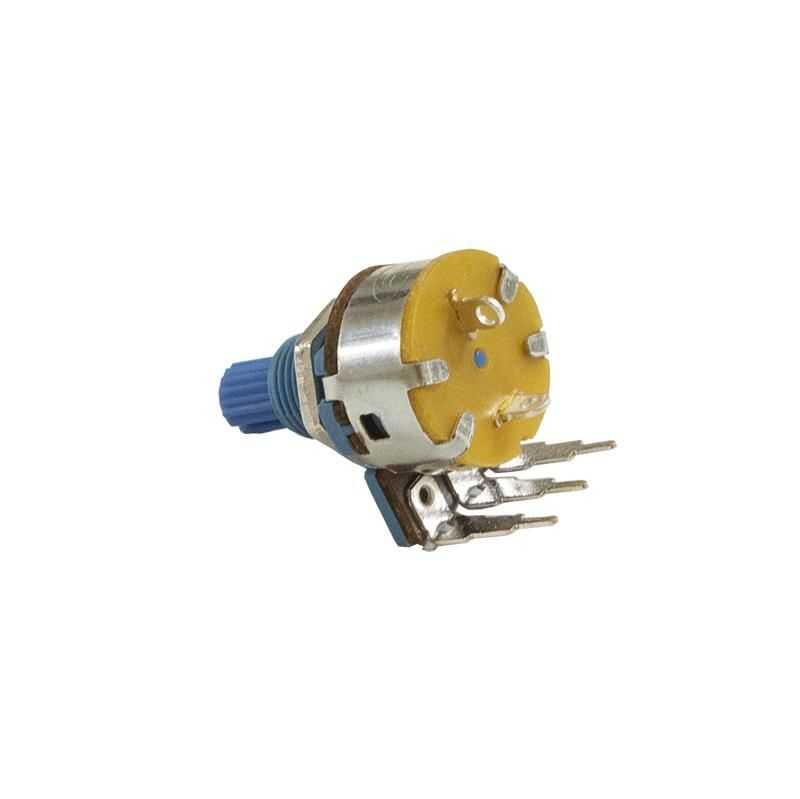

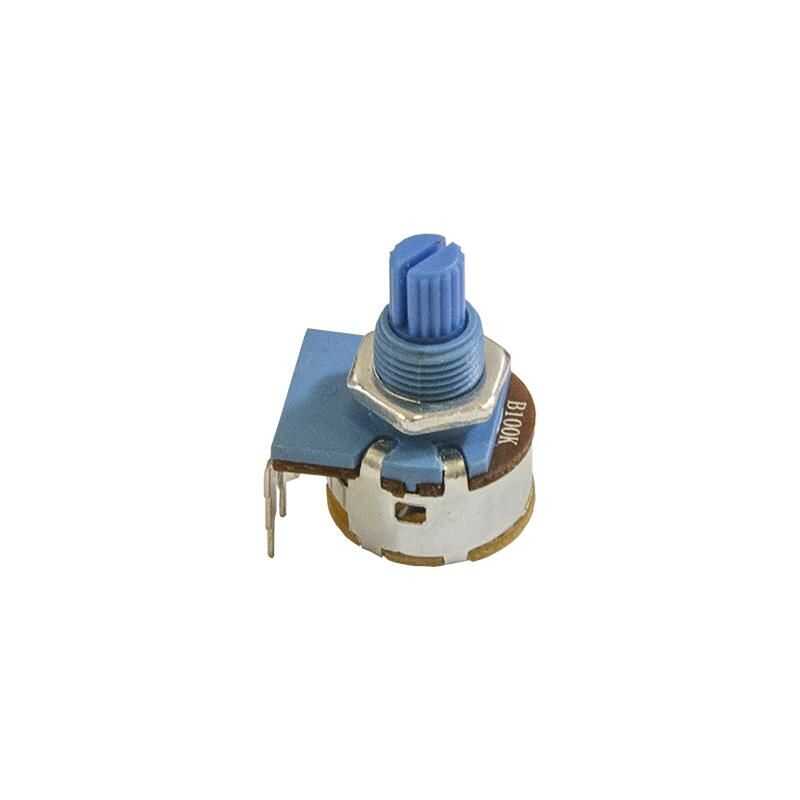

R1613S 100K Single Turn Switch Potentiometer
Resistance: 100K
Rated power: 0.125w
Maximum operating voltage: AC150V
Insulation resistance: more than 100MΩ at 500V DC
Standby Voltage: for 1 minute or more: 500V DC
Rotation noise: less than 100Mv (at 20V DC)
Group error:±3dB~-40dB
Switch contact resistance: Less than 500mΩ
Nominal switch power: 1.0A at 12V DC
Mechanical Characteristics:
Total rotation angle: 300°±5°
Rotating Torque: 20~200gf.cm
Change turning angle: 35°±5°
Change Action: 50~350gf. cm
Rotation life: 10,000 cycles
