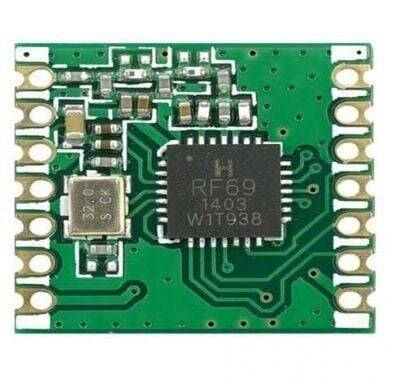

RFM69CW-868S2
RFM69CW is a transceiver module capable of operating over a wide frequency range, including the license-free ISM (Industrial Scientific and Medical) frequency bands of 315,433,868 and 915MHz . All major RF communication parameters are programmable and most can be adjusted dynamically.
Offers the unique advantage of programmable narrowband and wideband communication modes. The RFM69CW is optimized for low power consumption while offering high RF output power and channeled operation.
To better utilize the RFM69HW modules, this specification also includes IC pins that do not stick out. It contains a large number of parameters and functions of the core chip RF69Hs, including.
Specifications:
- +13 dBm Power Output Capability
- High Sensitivity: Up to -120 dBm at 1.2 kbps
- High Selectivity: 16-hit to FIR-Channel Filter
- Lead proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm, 80
- Low current: Rx = 16 mA, 100nA logging
- Programmable Pout: -18 to 1dB steps +20 dBm
- Constant RF performance across the module's voltage range
- FSK Bit delivers speeds up to 300 kb/s
- Fully integrated with a resolution of 61 Hz synthesizer
- FSK, GFSK, MSK, GMSK and OOK modulations
- Built-in Bit Synchronizer with Clock Expiration
- Incoming Synchronization Word Recognition
- 115 dB + Dynamic Range RSSI
- Automatic RF Sense with ultra-fast AFC
- Module Size: 16X16mm
Application Areas
- Automatic Meter Reading
- Wireless Sensor Networks
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
- Wireless M-BUS
