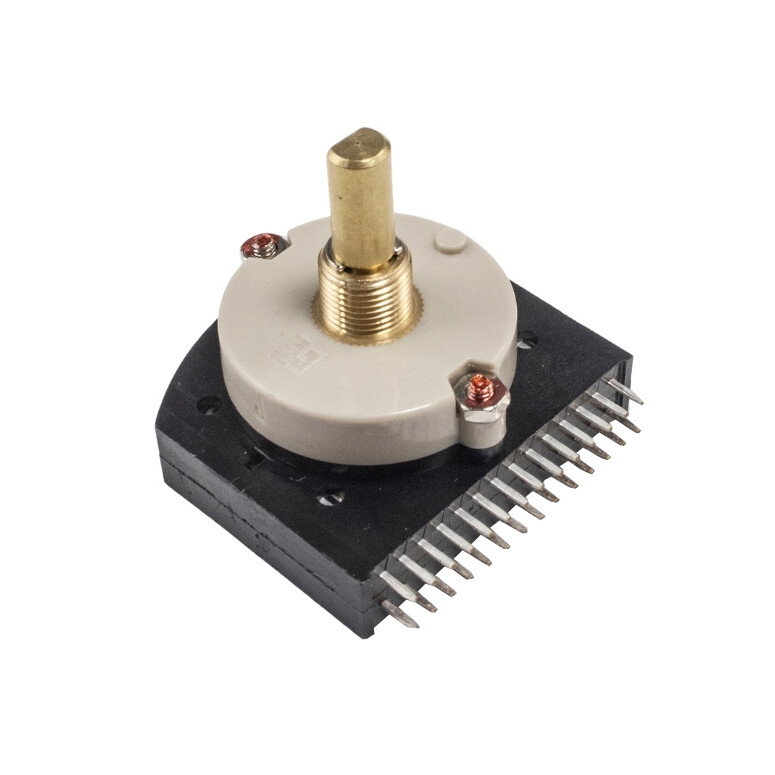

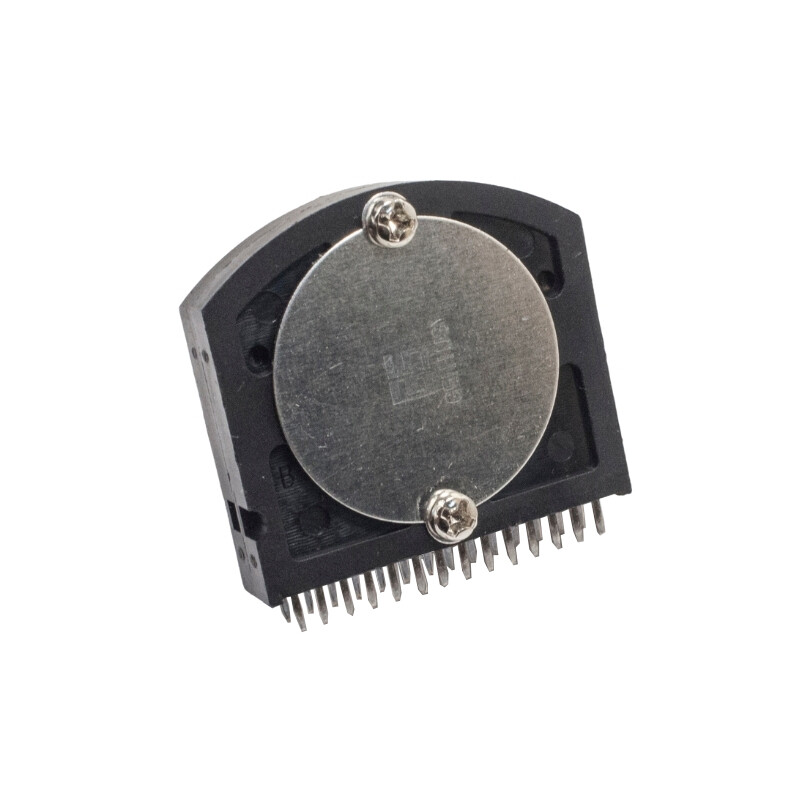

SR39 39mm 12 Position Rotary Switch - Commutator
SR39 39mm 12 Position Rotary Switch - Commutator. It is a kind of adjustable potentiometer with 12 positions and a diameter of 39mm. Used to control multiple different circuits.
Features
- Model: SR39
- Recommended Power: 30VDC 0.5A
- Contact Resistance: 25mOhm
- Insulation Resistance: 500VDC 100mOhm
- Shaft Diameter: 6mm D-shaft
- Shaft Length: 14mm
- Dimensions: 39x35.5x19mm (Excluding Shaft)
