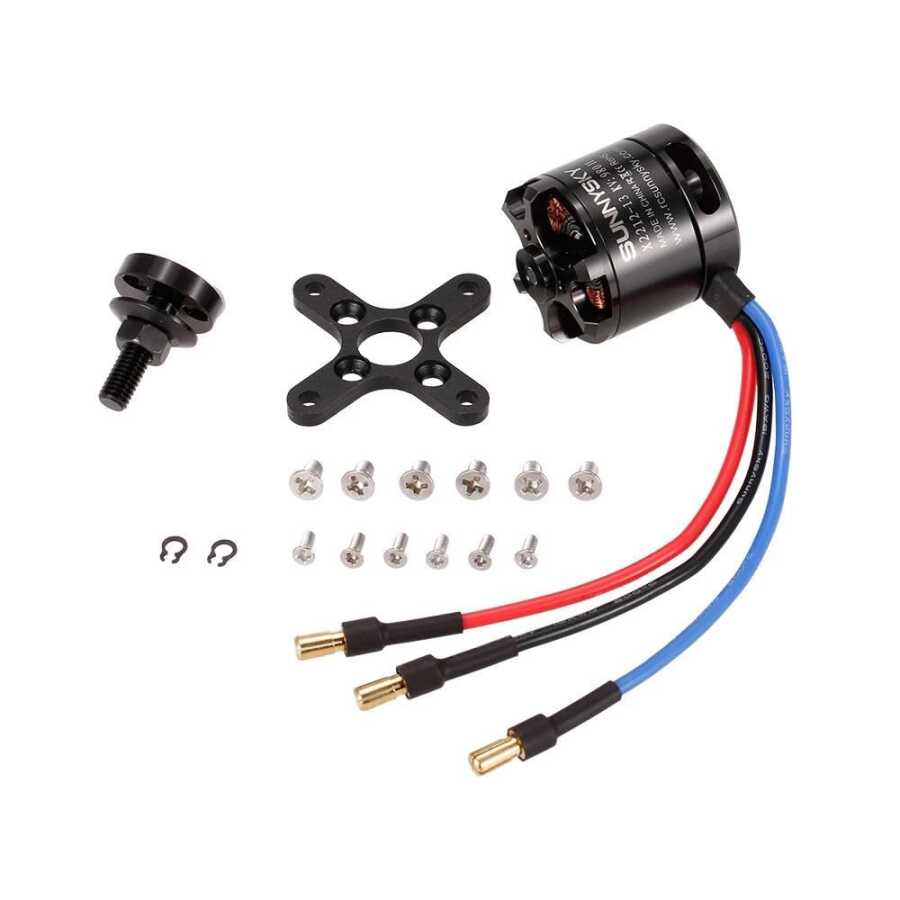

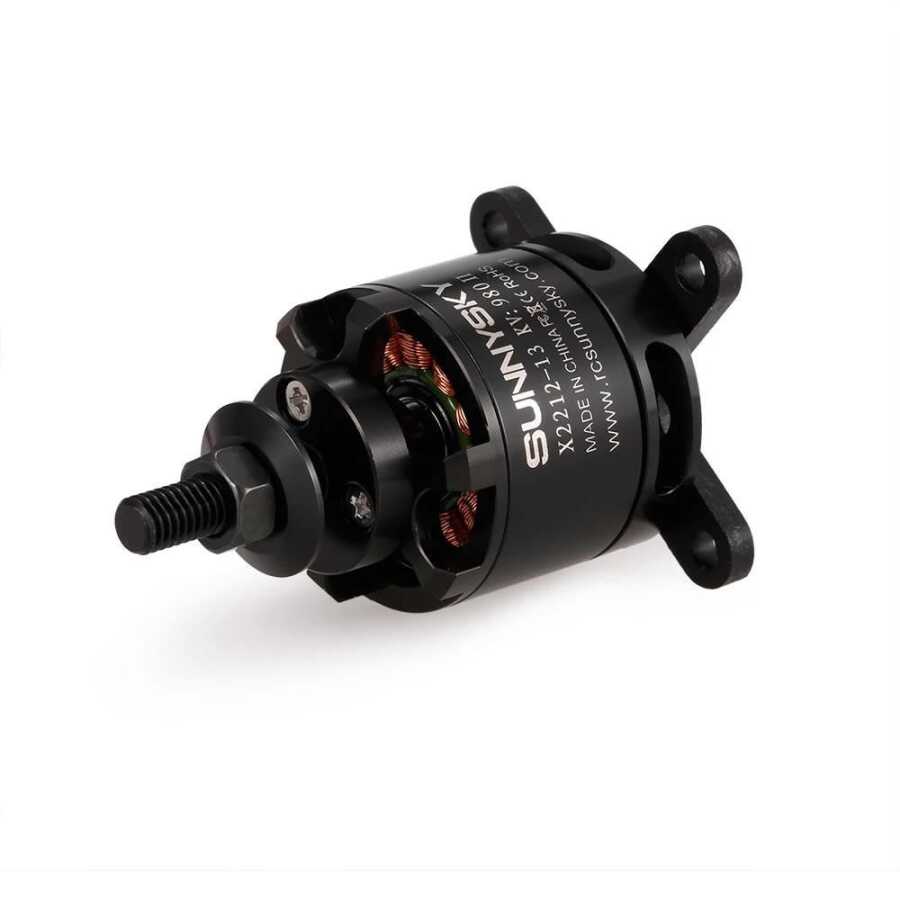

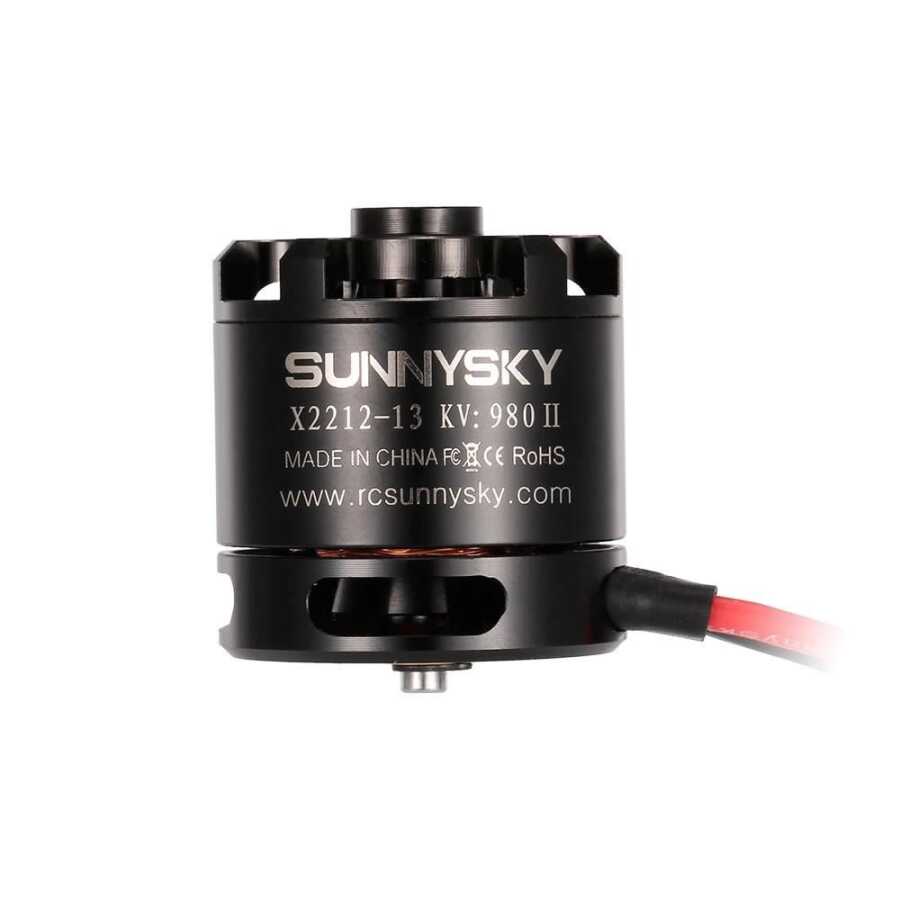

SunnySky X2212-13 980KV II Brushless Drone Motor
SunnySky H3>Specifications:
- Brand: SUNNYSKY
- Model: X2212 980KV II Motor
- Stator diameter: 22mm
- Stator thickness : 12mm
- Number of stator arms: 12
- Number of rotor poles: 14
- KV (rpm/min): 980KV
- No-load current : 0.3A
- Motor resistance: 133mΩ
- Maximum continuous current: 15A/30 S
- Maximum continuous power: 300 W
- Maximum tensile: 1020g
- Rotor diameter: 27.5mm
- Shaft diameter: 3.175mm
- Body length: 30mm
- Overall shaft length: 32.5 mm
- Max Lipo cell: 2-4 S
- Recommended ESC: 20A
- Recommended propeller: APC8038, APC9047, APC1047, APC8043
- Motor weight: about 57g/pc
