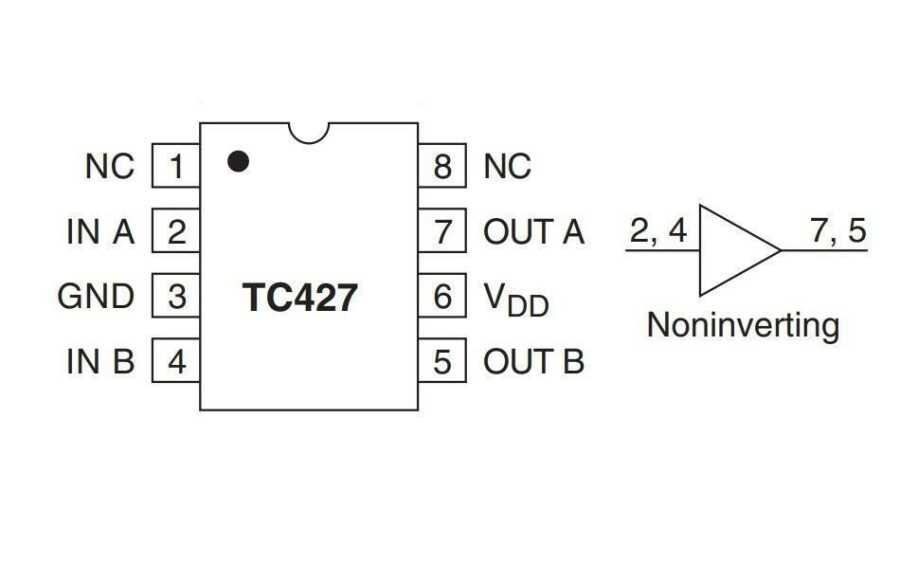

TC427 is a dual CMOS high speed driver. A TTL/CMOS input voltage level is translated into an output voltage level oscillation from rail to rail. CMOS output is within 25mV ground or positive supply. Low impedance, high current driver outputs swing a 1000pF 18V load in 30ns. Unique current and voltage drive features make TC426/TC427/TC428 ideal power MOSFET drivers, line drivers and DC-DC converter building blocks.
Usage Areas
- Switching Power Supplies
- Pulse Transformer Drive
- Clock Line Driver
- Coaxial Cable Driver
