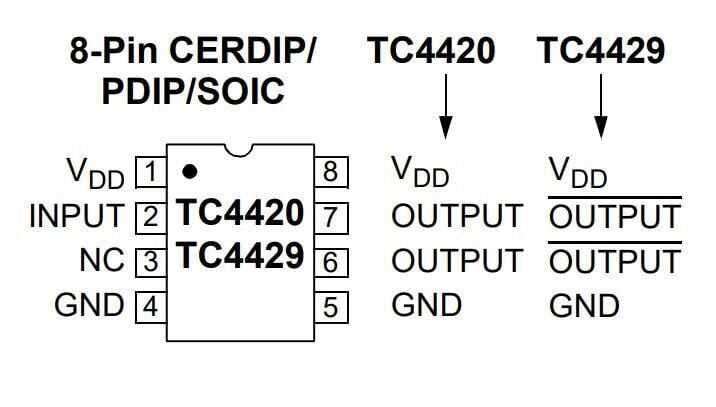

TC4429 DIP-8 Mosfet Driver IC
TC4429 is an inverting single output high speed MOSFET Driver with inverting configuration while TC4420 is a non-inverting driver. This drive is built in CMOS for lower power and more efficient operation compared to bipolar drives. It has TTL/CMOS compatible inputs that can drive VDD as high as 0.3V or as low as -5V without damaging the device. This eliminates the need for external level shifting circuitry and the cost and size associated with it. The output swing is rail-to-rail, providing better drive voltage margin, especially during the on/off sequence. Propagation delay time is only 55ns typical and output rise and fall times are only 25ns typical within the usable power supply range to 2500pF. Unlike other drives, the TC4429 is virtually crash proof. By replacing three or more individual components, it saves PCB space and parts and increases overall system reliability.
Series |
TC4429 |
Supply Voltage |
4.5-18V |
Output Current |
6A |
Number of Drives |
1 Driver |
Number of Exits |
1 Exit |
Number of Pins |
8 |
Package Type |
DIP-8 |
