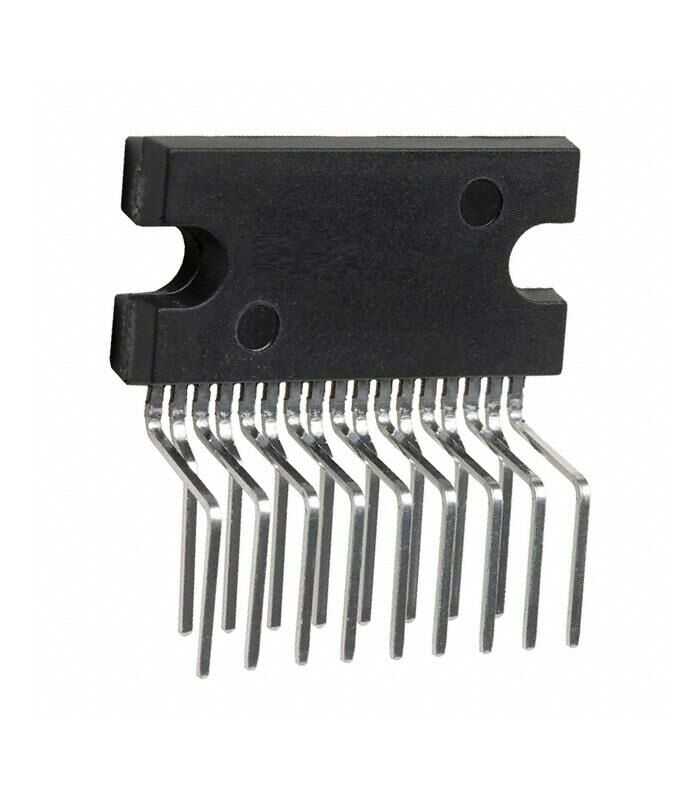

TDA1554Q SIL-17 Amplifier Audio Integrated
TDA1554 is a 4*11W single-ended or 2*22W power amplifier IC with integrated Class B output amplifier. The TDA1554Q comes in a 17-lead single-row package. The internal circuit includes a 4*11W single-ended or 2*22W bridge amplifier. Out of all four amplifiers, two are inverting and the other two are non-inverting. Also, the gain of each amplifier is 20dB (26dB in BTL). The TDA1554q also has a mute/standby feature.
| Series |
TDA1554Q |
| Supply Voltage |
6-18V |
| Output Current |
4A |
| Standby Current |
10uA |
| Input Impedance |
50kΩ to 75kΩ |

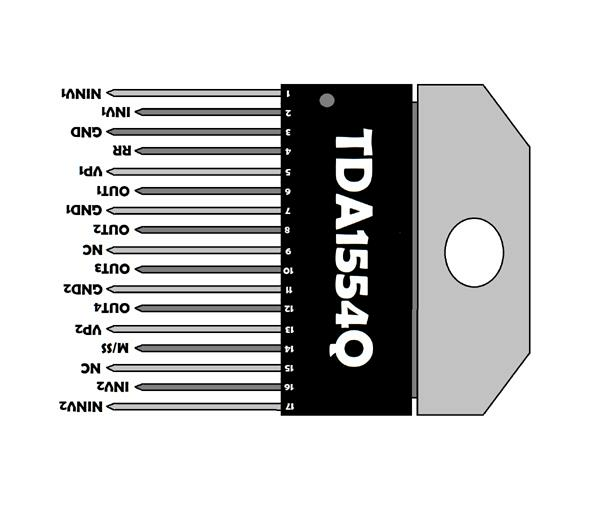

| Number of Pins |
17 |
| Package Type |
SIL-17 |
