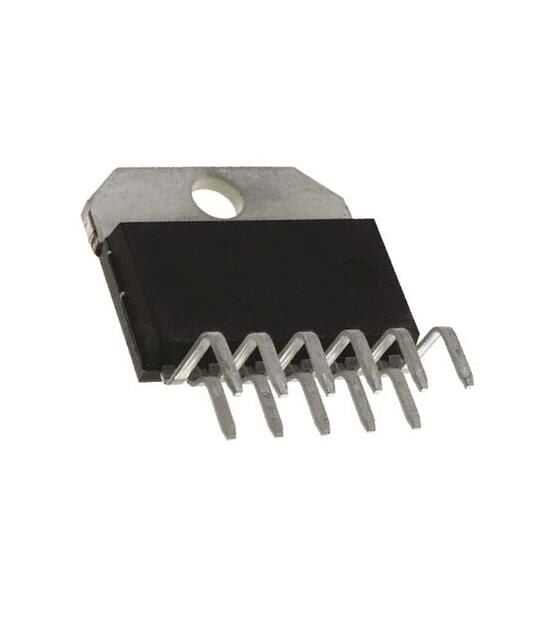

TDA2005 Multiwatt-11 Amplifier Audio IC
TDA2005 is a class B dual audio power amplifier in Multiwatt11 package designed specifically for car radio applications. Power boost amplifiers can be easily designed using this device, providing high current capability (up to 3.5 A) and capable of driving very low impedance loads (up to 1.6 ohms in stereo applications), achieving an output power of more than 20 W (bridge configuration).
Series |
TDA2005 |
Supply Voltage |
8-18V |
Output Current |
4.5A |
Output Power |
22W |
Sound - Load Impedance |
4 Ohm |
Number of Pins |
1 |
Package Type |
Multiwatt-11 |
