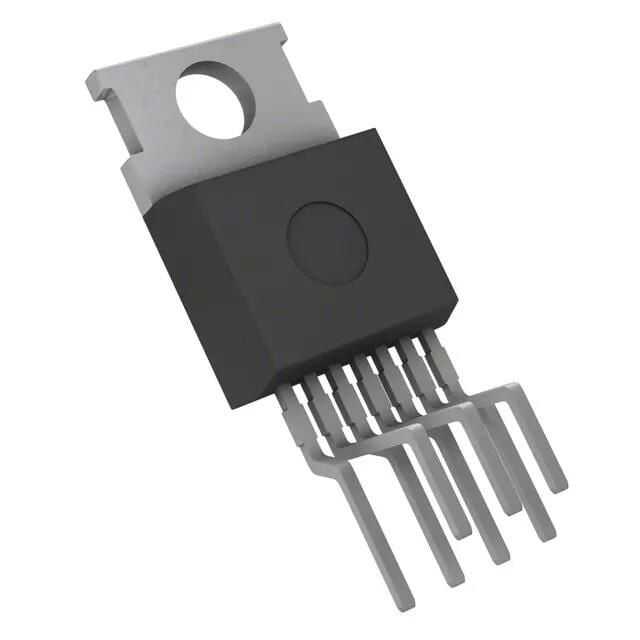

TDA7240 TO-220-7 Audio IC

TDA7240A is a 20W bridge audio amplifier IC specially designed for car radio applications. Thanks to the low number of external parts and the compact Heptawatt 7-pin power package, the TDA7240A takes up very little space on the printed circuit board.

Series	TDA7240
Supply Voltage	18V
Output Current	4.5A
Output Power	20W
Audio - Load Impedance	8 Ohm

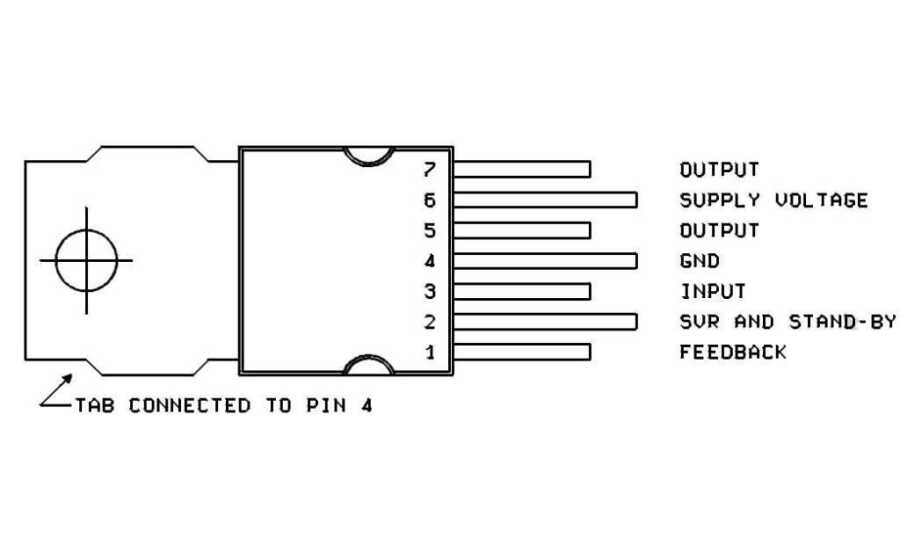

Number of Pins	7
Package Type	TO-220-7
