TDA7377 Multiwatt-15 Amplifier Audio IC

TDA7377 is a new technology class AB car radio amplifier that can operate in DOUBLE BRIDGE or QUADRUPLE SINGLE ENDed configuration. The special fully complementary structure of the output stage and the internally fixed gain guarantee the highest possible power performances with an extremely reduced component count. The built-in clip detector simplifies gain compression. Fault diagnosis makes it possible to detect errors during car radio set installation and wiring in the vehicle.

Series	TDA7377
Supply Voltage	8-18V
Output Current	4.5A
Output Power	35W
Audio - Load Impedance	4 Ohm

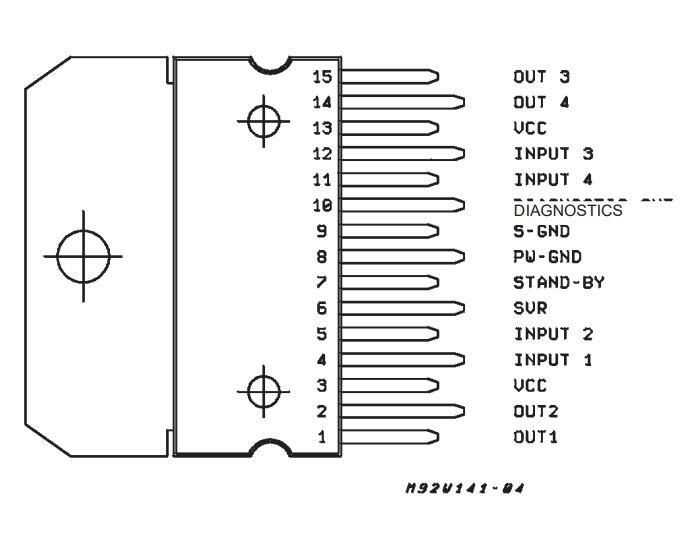

Number of Pins	15
Package Type	Multiwatt-15
