TPS3010 30V 10A Adjustable DC Power Supply

Ratings & Reviews (0)
Comment
Brand: Profuse
Product Code: GUC.AGC.01.000037
3,027.20 TL + VAT
VAT Included: 3,632.64 TL

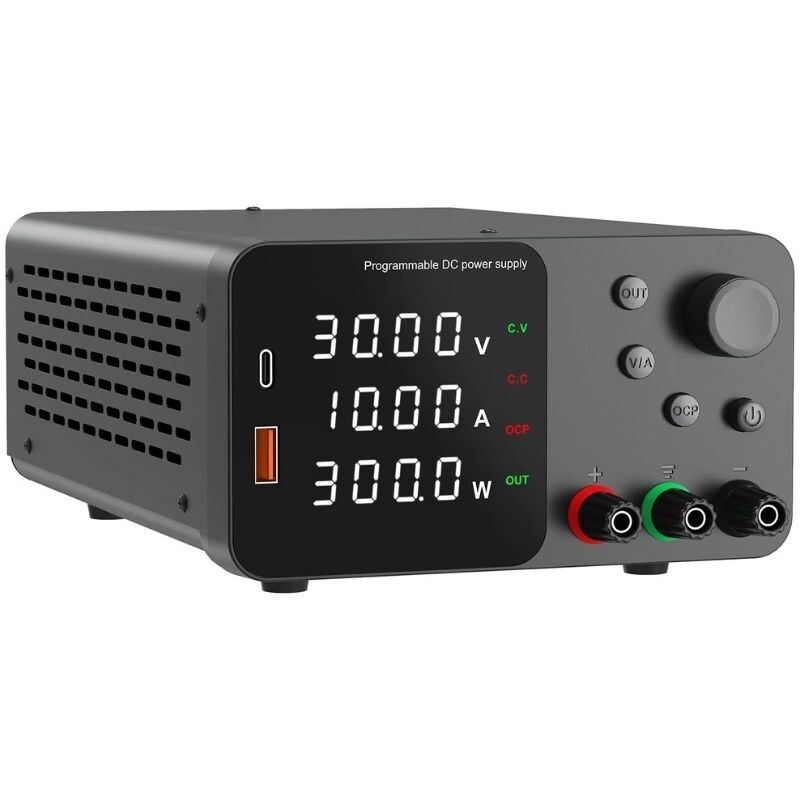

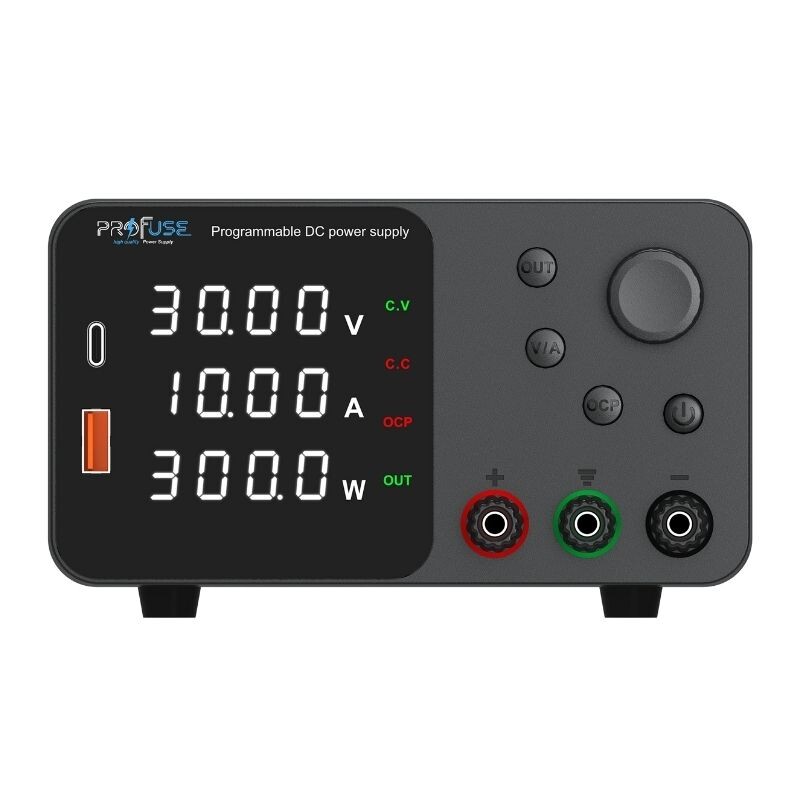

TPS3010 30V 10A Adjustable DC Power Supply

TPS3010 is a high precision DC power supply that can output up to 10A between 0-30V. There is an adjustment encoder on the product that allows you to adjust voltage and current. When you press these encoders, which allow adjustment, the adjustment sensitivity can change. There is a V/A button on the power supply. This button switches between current and voltage. Whichever we choose, the adjustment encoder adjusts that value.

The product does not give direct output when it is turned on. The exit button must be pressed for it to output. When the green light turns on, the product gives output. Additionally, there is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent situations in short circuit situations.

TPS3010 is lighter than old-style power supplies, thanks to its modern design and circuit structure. It also has USB and Type-C outputs that allow charging phones and similar 5V devices.

Features:

  • Model: TPS3010
  • Input: 220V AC (outlet)
  • Output Voltage: 0-30.00V
  • Current: 0-10.00A
  • Resolution: 0.01V / 0.001A
  • Accuracy: 0.5%±20
  • OVP: High Voltage Protection
  • OCP: Overcurrent Protection
  • OPP : High Power Protection
  • OTP: High Temperature Protection
  • SCP: Short Circuit Protection
  • Dimension: 210x145x80mm
  • Weight: 1.2kg

Product Content:

  • TPS3010 Power Supply
  • AC Power Cable
  • English User Manual
  • 2 Crocodile Probe Cables

Weight(Kg)
2
