WPS3010H 30V 10A Adjustable DC Power Supply

Ratings & Reviews (0)
Comment
Brand: Profuse
Product Code: GUC.AGC.01.000043
Stokta son 4 ürün
3,801.60 TL + VAT
VAT Included: 4,561.92 TL

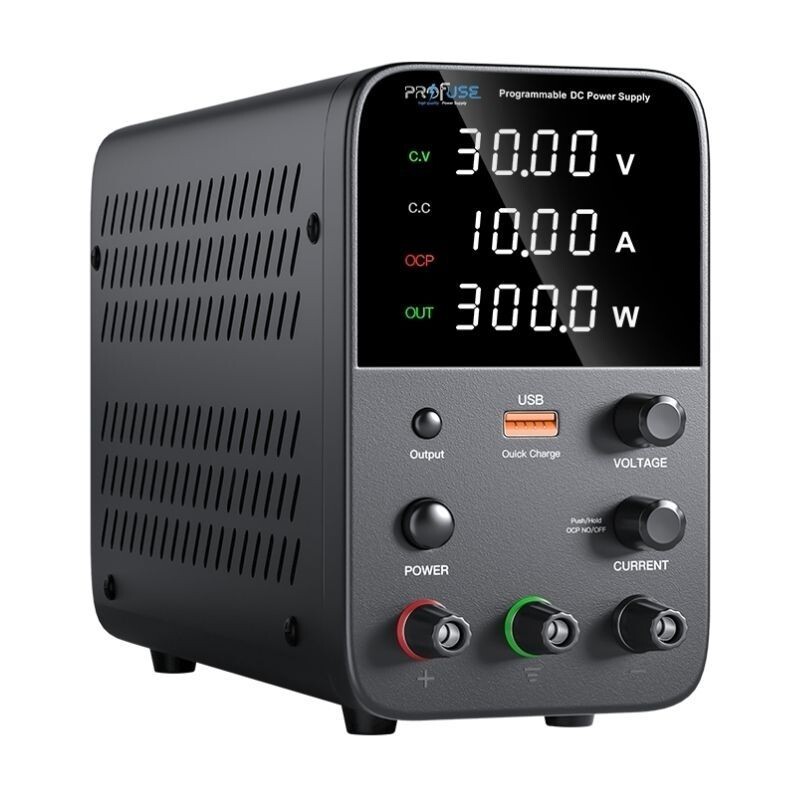

WPS3010H 30V 10A Adjustable DC Power Supply

WPS3010H is a high precision DC power supply that can output up to 10A between 0-30V. There is an adjustment encoder on the product that allows you to adjust voltage and current. There is a V/A button on the power supply. When you press these encoders, which allow adjustment, the adjustment sensitivity may change.

There is OCP short circuit overcurrent protection in the current adjustment button on the product. OCP is activated when the current setting button is pressed for a few seconds. OCP is a function that protects against overcurrent situations in short circuit situations.

The product does not provide direct output. You can get output when you press the output button on it.

WPS3010H is lighter than old type power supplies, thanks to its modern design and circuit structure. It also has a USB output that allows charging phones and similar 5V devices.

Features:

  • Model: WPS3010H
  • Input: 220V AC (outlet)
  • Output Voltage: 0-30.00V
  • Current: 0-10.00A
  • Resolution: 0.01V / 0.001A
  • Accuracy: 0.5%±20
  • OVP: High Voltage Protection
  • OCP: High Current Protection
  • OPP: High Power Protection
  • OTP: High Temperature Protection
  • SCP: Short Circuit Protection
  • Dimension: 190x90x145mm
  • Weight: 1.5kg

Product Content:

  • WPS3010H Power Supply
  • AC Power Cord
  • English User Manual
  • 2 Crocodile Probe Cable

WPS30xx

Weight(Kg)
2
