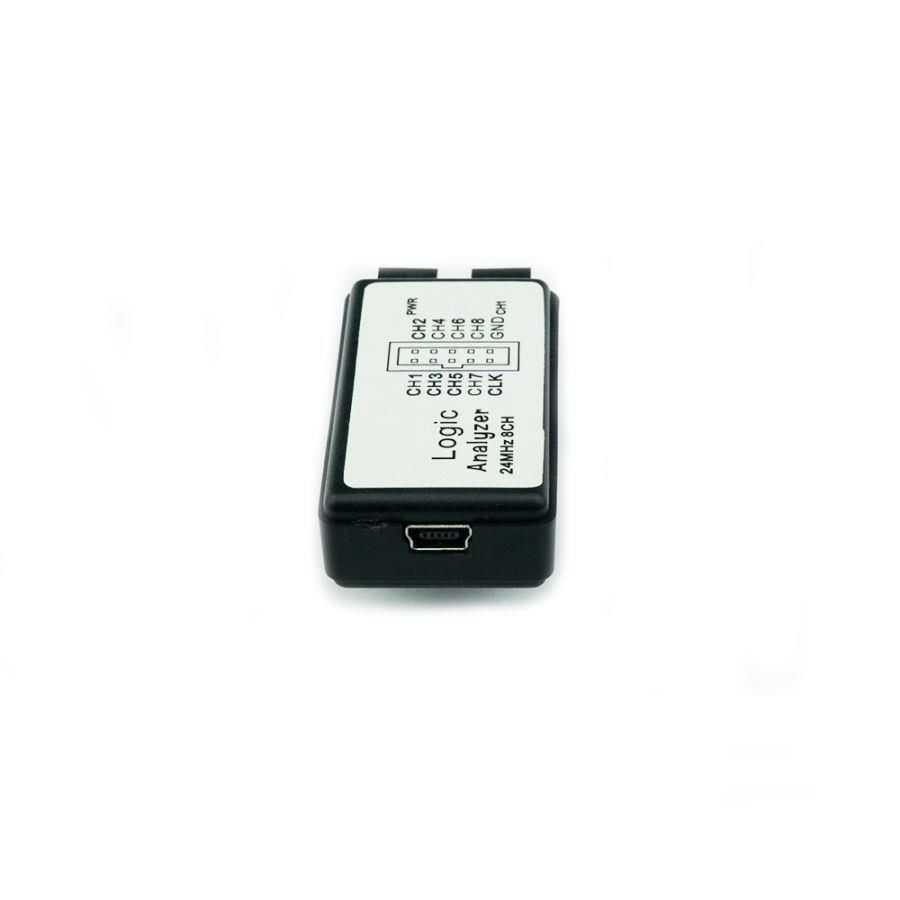

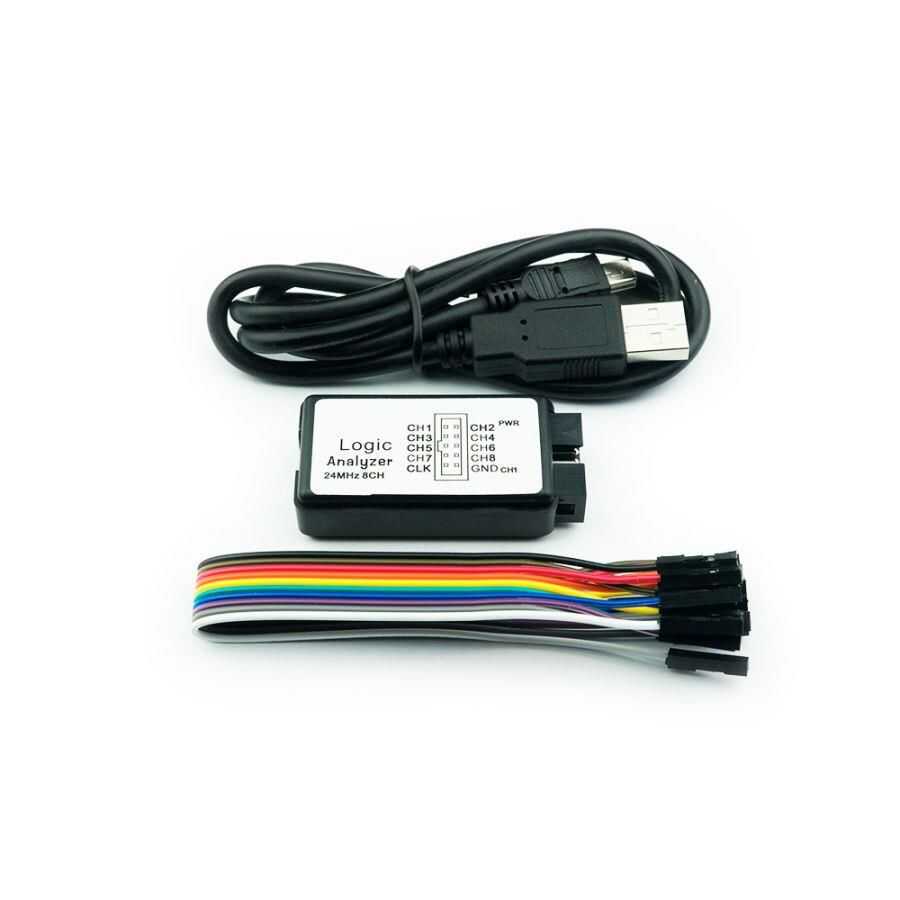

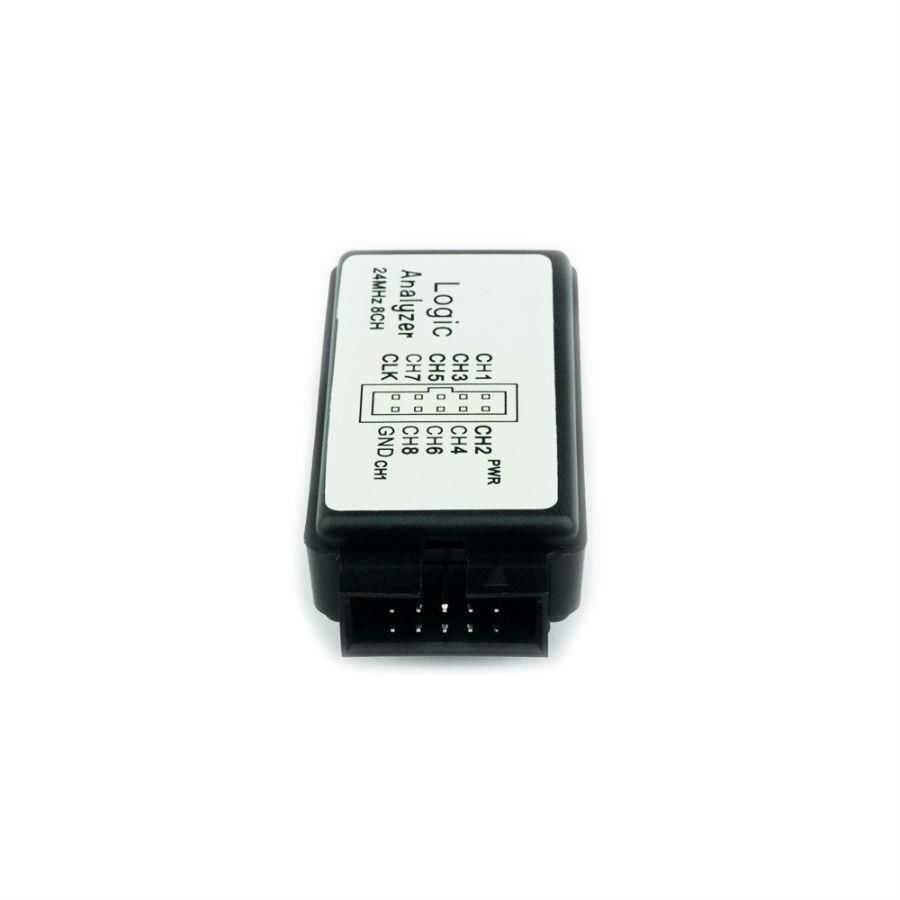

USB 24 MHz 8 Channel Logic Analyzer - Logic Analyzer
USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP debugging tool for digital signal analysis is a very cheap and useful debugging tool, it helps you fully analyze UART, IIC, SPI, CAN all these interfaces.
If you don't want to start with an expensive oscilloscope, this It will be another good choice. A total of eight digital channels, voltage range is 0V ~ 5.5V, voltage threshold below 1.5V is considered low, above 1.5V is considered high. 24m sampling rate can automatically analyze UART, IIC, SPI and many other standard protocols.
If you are doing single chip development, ARM system development or FPGA development, use this product We strongly recommend you to buy it. In order to do a good job, you must first sharpen the device MCU related products, as long as you do this tool, you will have a crescent moon head. Especially do UART, SPI, IIC communication debugging, it definitely allows you to get twice the results with half the effort.
Features:
- Logical light indicator: a small light indicates the CHO electricity level.
- Input specification: 5PF,100K Ohm.
- USB power supply; USB logic analyzer for monitoring, analyzing and debugging digital circuits
- 8-Channel USB logic analyzer with 24Mhz sampling frequency
- Can automatically analyze UART, IIC and SPI
- Great for MCU, ARM system and FPGA development
- Voltage: 0-5.5V
- Threshold Voltage: 1.5V
- Sampling rate can be adjusted as follows :
- 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
- Real-time data loading, maximum depth of collection practical It is 10T away from need.
