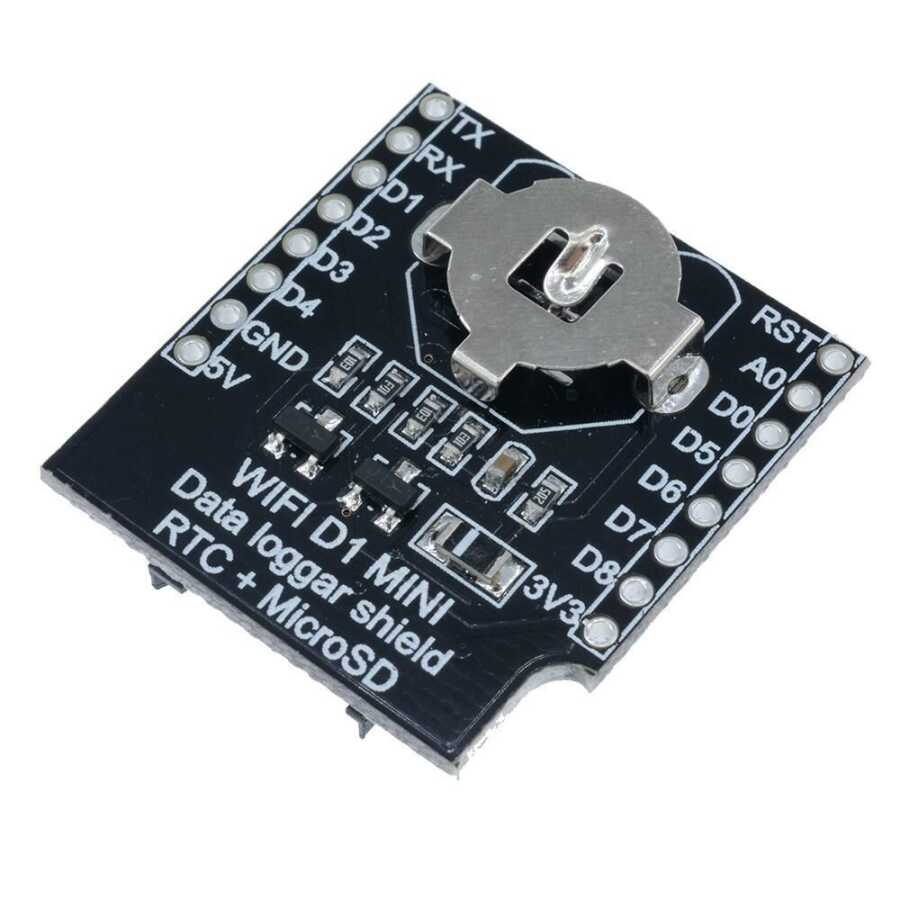

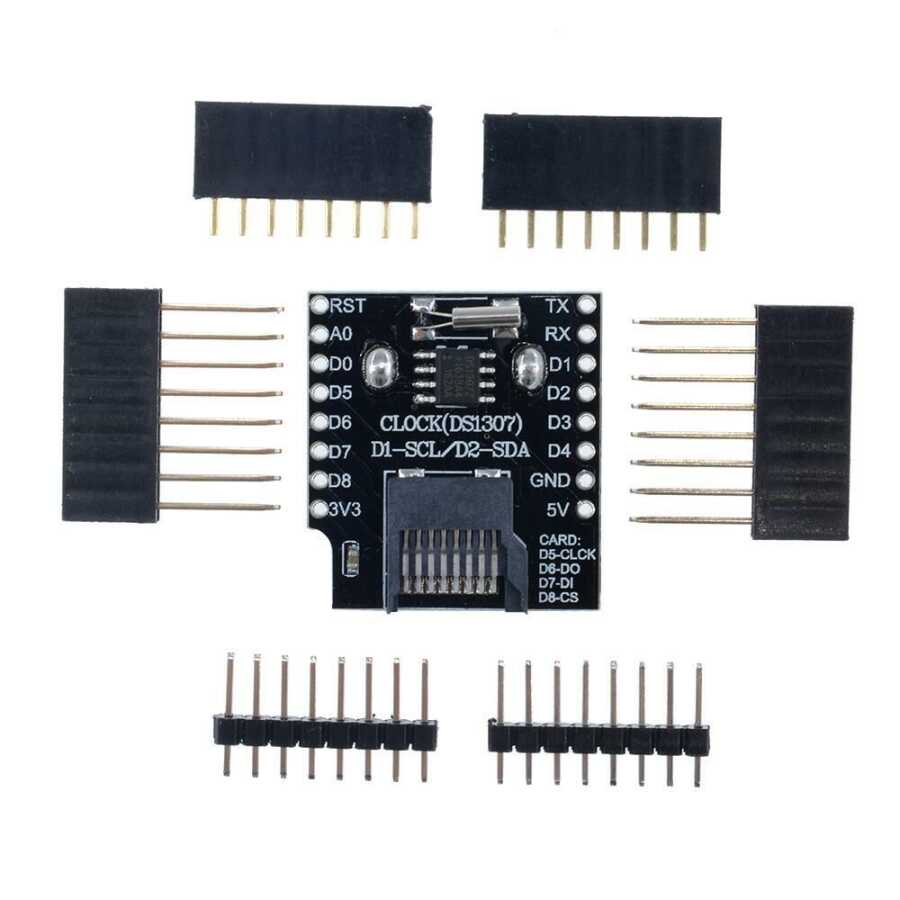

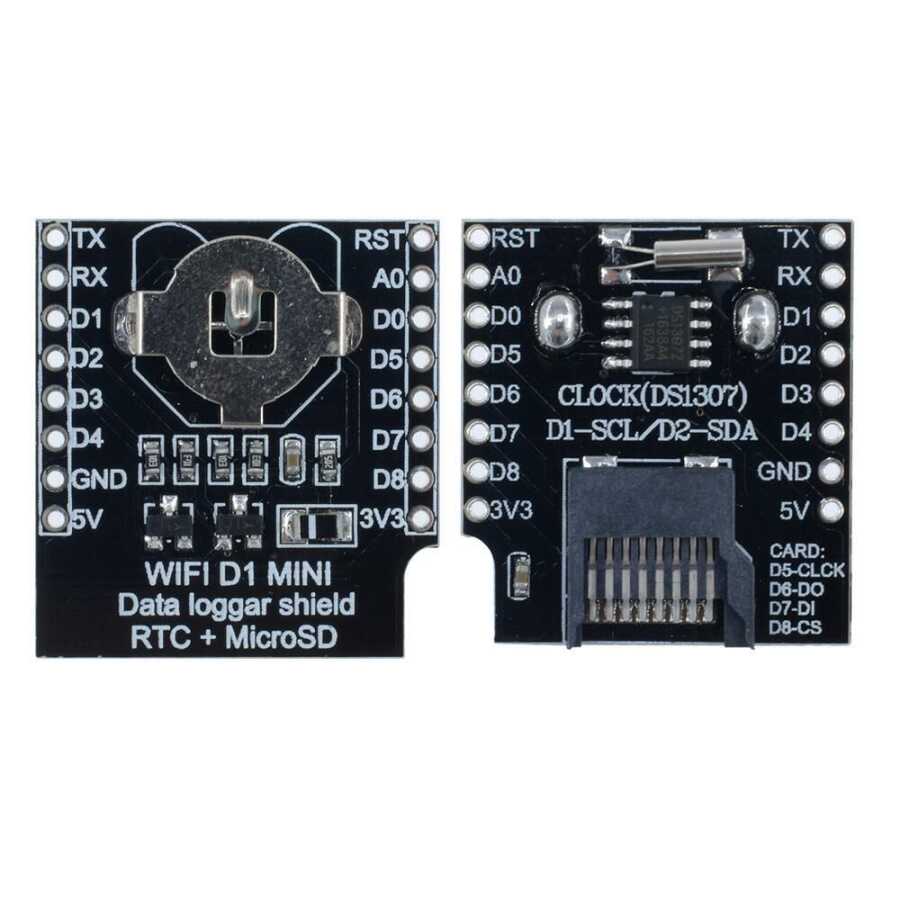

Wemos D1 Mini Data Logger + RTC DS1307
Wemos D1 Mini Data Logger + RTC DS1307.With this card data logging shield you can save data to any FAT16 or FAT32 formatted sd It can save data to cards. With the built-in RTC module, it can save data in real time and ensures that data is saved even when the power is disconnected. RTC has protection against incorrect connection of the battery.

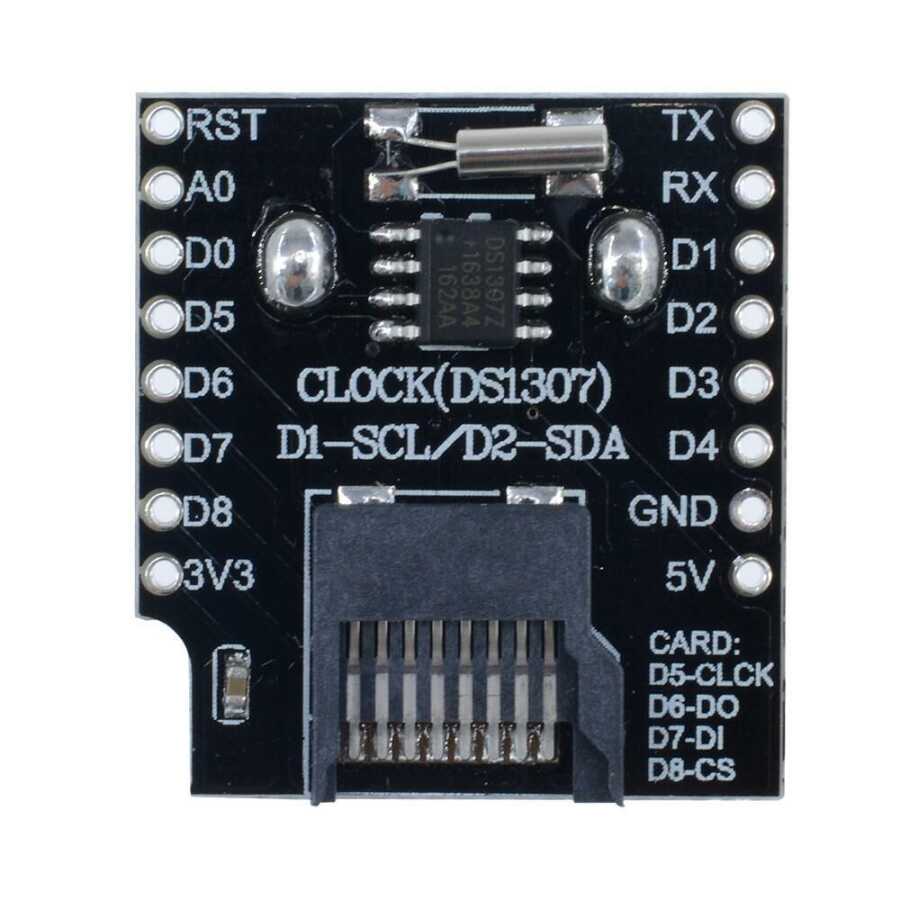

Pinout
RTC
SD Card
- D5 - CLK
- D6 - DO
- D7 - DI
- D8 - CS
