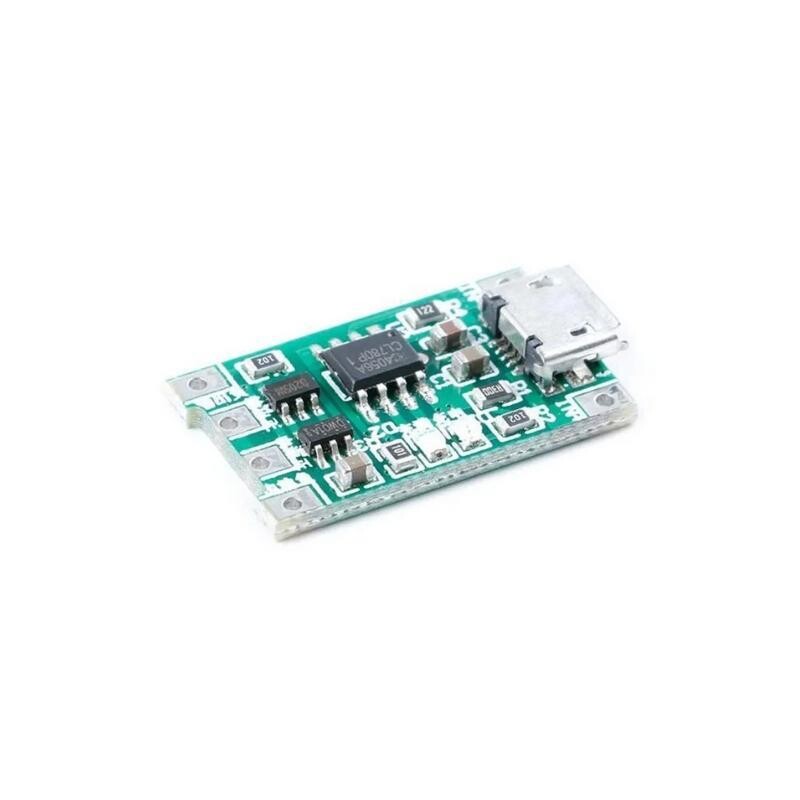

TP4056 3.7V Lithium Battery Charging Module - Charge Discharge Protected
TP4056 protected charging circuit; It is a charging circuit that allows you to charge lithium batteries at 3.7V (1S). Lipo batteries Li-ion 18650 batteries can be easily charged with this module. Thanks to the protection circuit on it, it protects your battery against problems such as overcharging and reverse connection.
TP4056 Features:
- Charging method: CCCV [Constant Current-Constant Voltage]
- Charging end: Micro USB port
- External input feeding pads (IN + and IN-)
- Input Voltage: 5V
- Charging Voltage: 4.2V
- Charging Current: 1A max.
- The green LED turns on when charging is finished.
- Charging While this is happening, the red LED is on.
- Reverse connection Protection
- Protection integrated: S8205A
- Over-discharge protection voltage: 2.5V
- Overcurrent protection : 3A
- Card dimensions: 24x14mm
