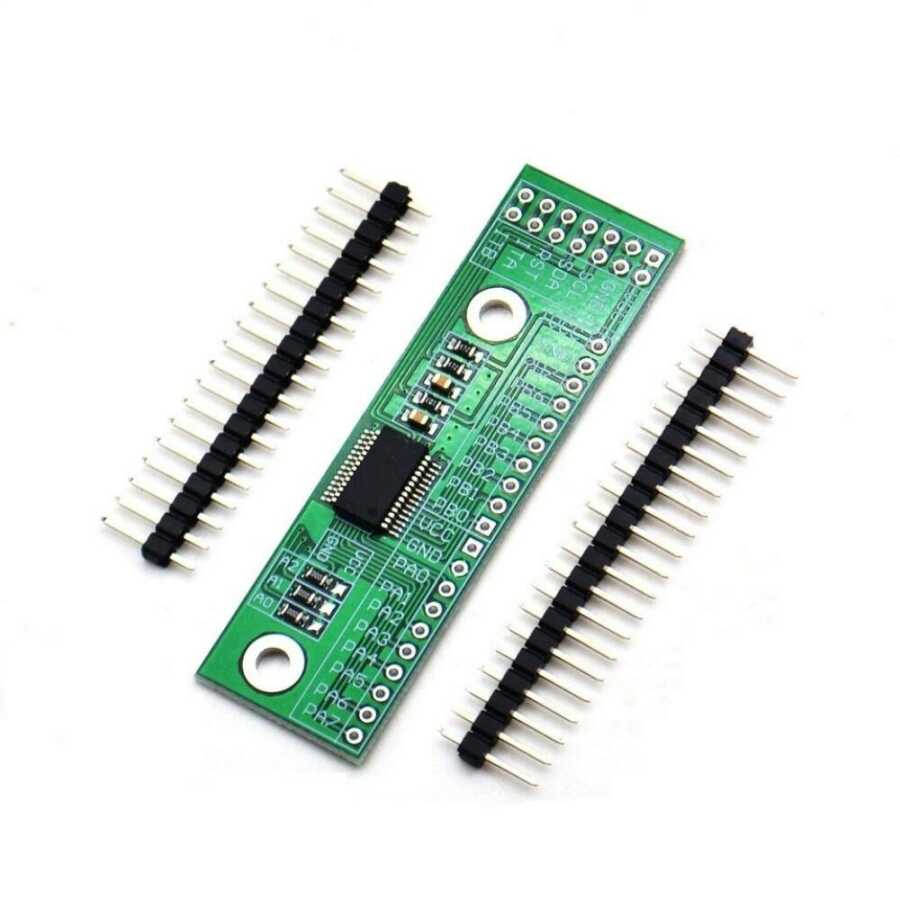

MCP23017 I2C 16 Channel Input/Output Multiplexer Module
MCP23017 I2C 16 Channel Input/Output Multiplexer Module. It is a high-speed IIC/I2C interface that supports IC frequencies of 100kHz, 400kHz and 1.7MHz. It is a 16 channel multiplexer module that can convert 16 bit parallel data into serial data of the IIC interface.
The driving capacity of IO ports can reach up to 25mA.
Technical Specifications
- Supply Voltage: 3 ~ 5.5V
- Operating Current: 1uA
- IIC Communication Frequency: up to 1.7Mhz
- Operating Temperature Range: -40 ~ 85°C
- Dimension: 65x19mm
- 2 M3 Mounting Holes

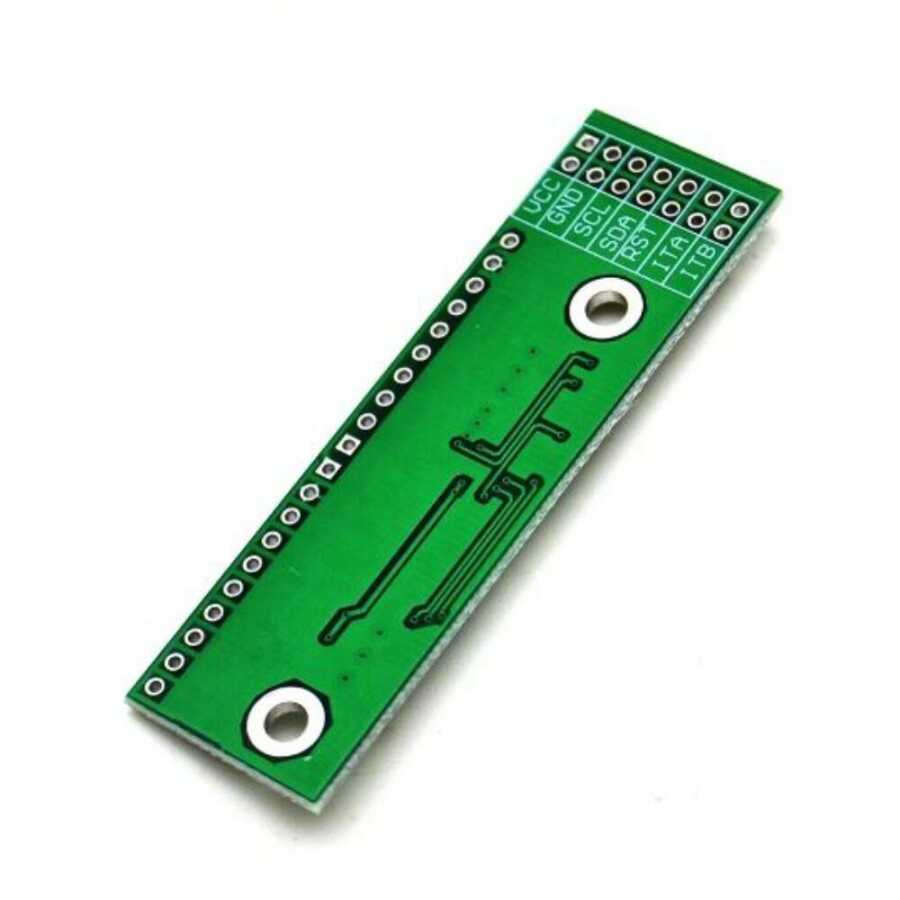

Pinout
.png)
