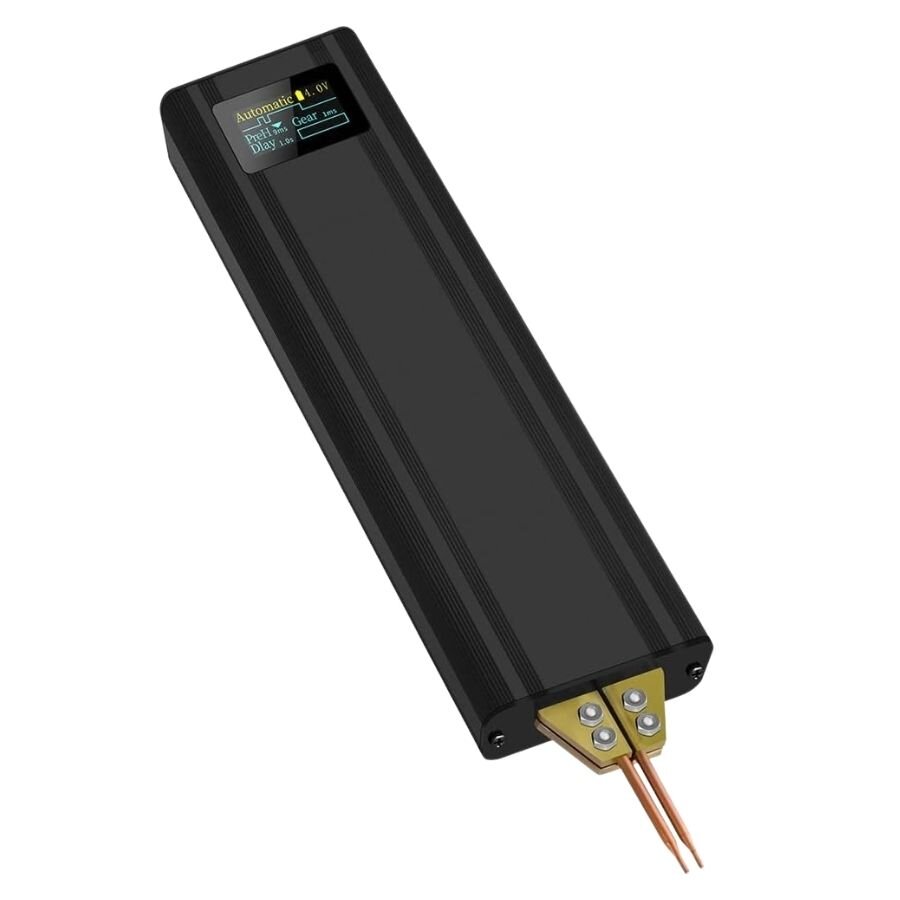

RC666 Automatic Trigger Spot Spot Welding Pen
RC666 Automatic Trigger Spot Spot Welding Pen. It is a rechargeable welding module that is charged with 5V supply. 0.1-0.15mm It can weld thick spot wires. It has a 5-stage power mode. At the highest power level, it can spot 0.15mm nickel strip. There is a micro USB port on the back for charging. It can be charged with a maximum 5V 2A adapter. At higher voltage or amperage, the device may break.
It turns on with the on/off button on the back and turns off with a long press. While the device is on, the level can be adjusted by pressing the on/off button. If no operation is performed for 6 minutes, the device automatically turns off.
It cannot do tacking while it is charging. You need to fully charge it to start.

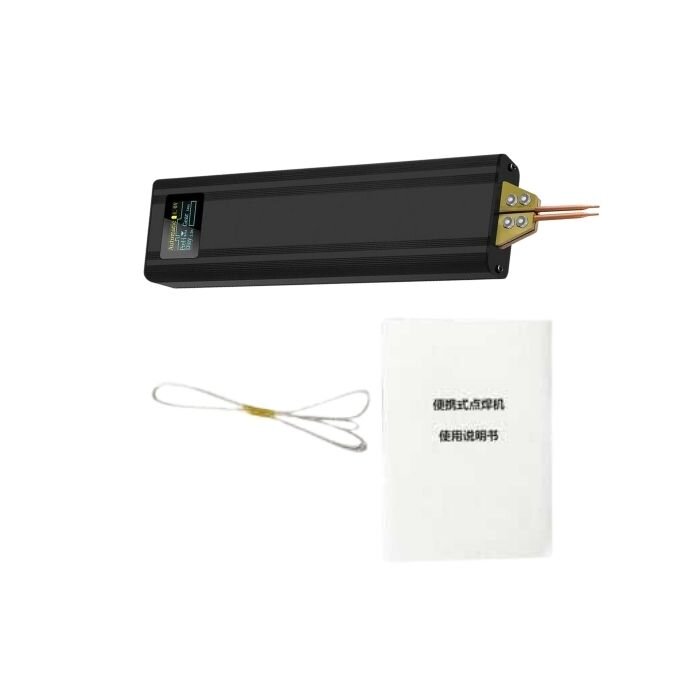

The package includes 1 meter of 0.1mm nickel strip spot wire.
Features
Supply Voltage: 5V DC (Micro USB)Current: 2AApproximately 800 spotting operations with full chargeNickel strip spot wire welding between 0.1-0.15 mm thickness Size: 200x55x25mm
