DS3231SN Green Clock Module / Thermometer
DS3231SN is a 3in1, 4 digit clock module. Time, ambient temperature and supply voltage can be monitored on the screen. With these features, this clock module is also a thermometer and voltmeter. It is controlled by two buttons on the product. One of them is the setting button and the other is the button that changes the value to be displayed on the screen. The display color is green.
Technical Specifications:
- Input voltage: 5 ~ 20V (to use the voltmeter function, the input voltage is at most should be at least 7V or more.)
- Voltmeter range: 7 ~ 20V, error ± 0.1V
- Temperature measurement: -50 to 130 degrees
- Operating current : 30MA

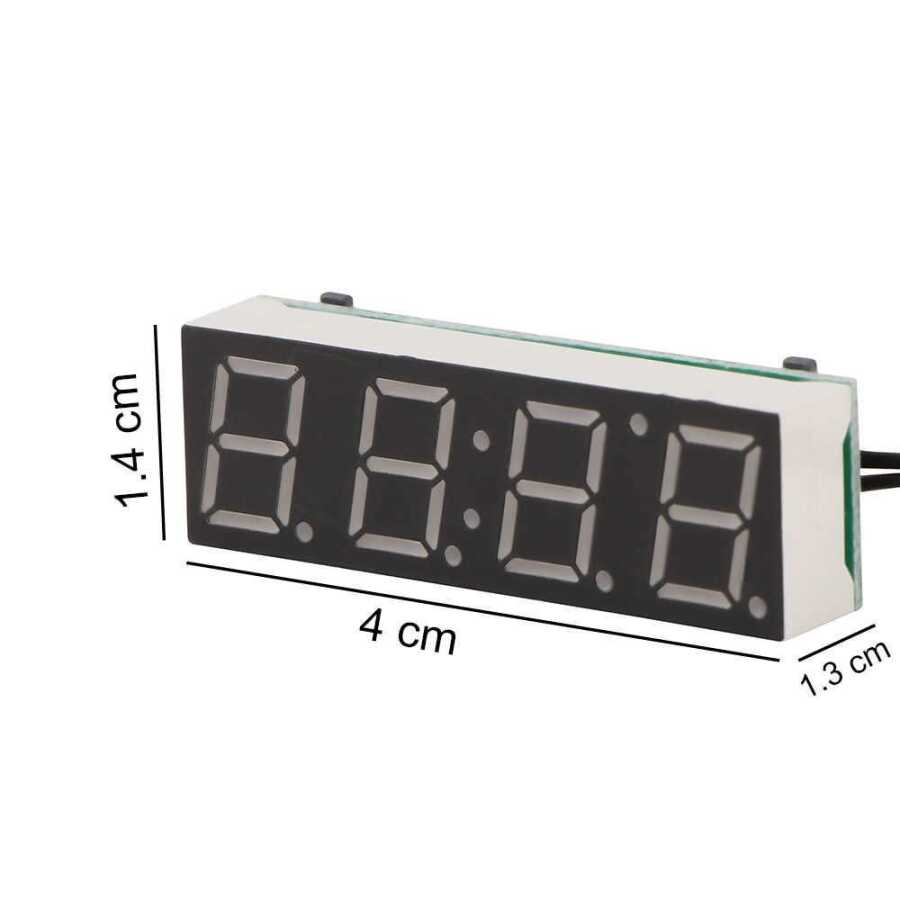

- Product Size: 4 * 1.3 * 1.4 cm
- Net Weight: 30g
