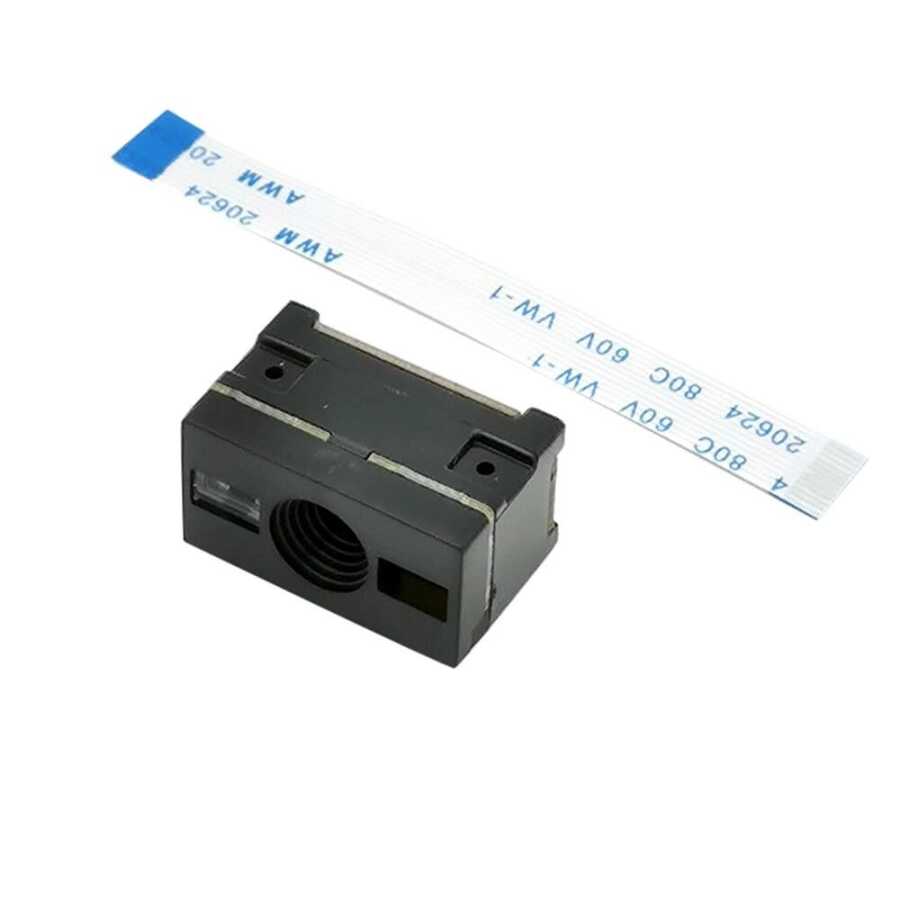

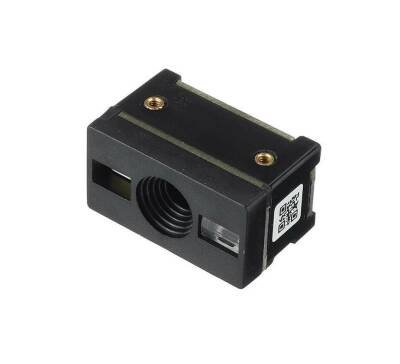

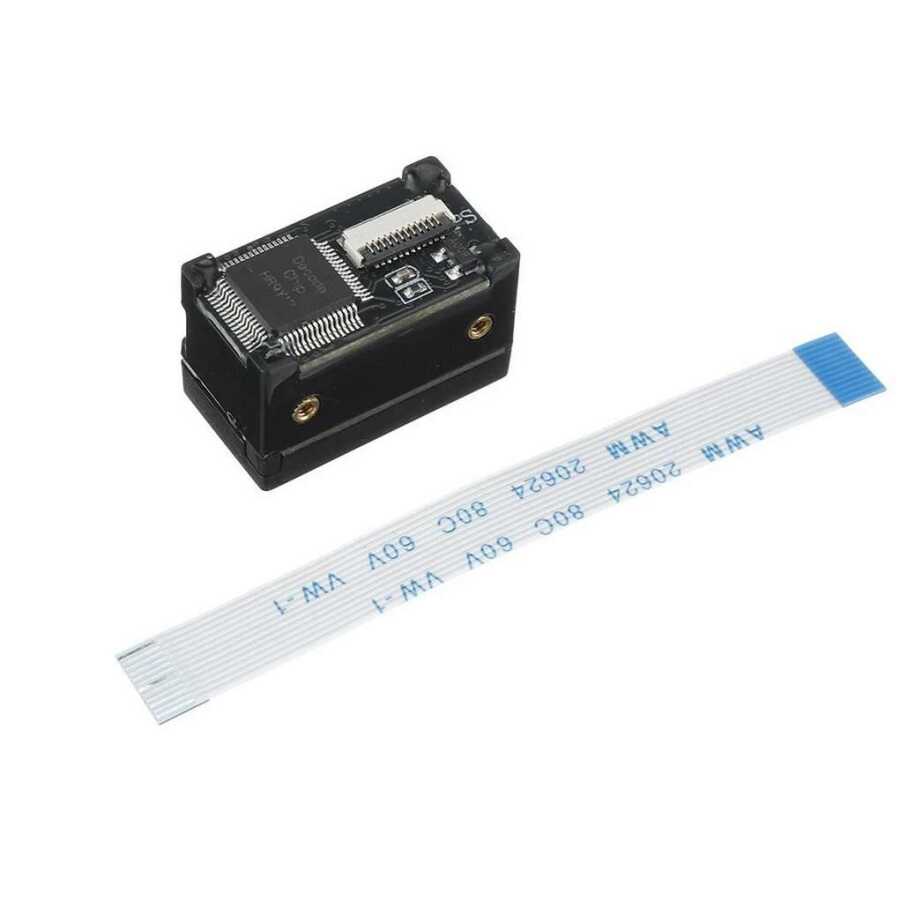

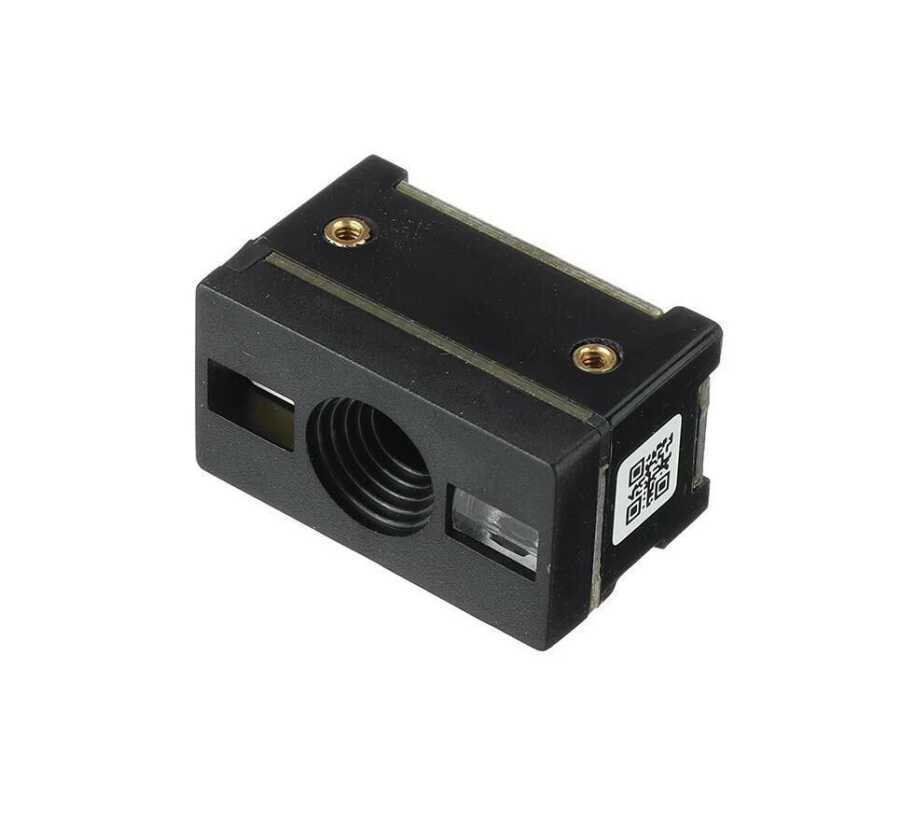

GM65-S 1D 2D QR Barcode Reader
GM65-S Barcode reader module is a high-performance scanner, it can easily read 1D barcode and read 2D barcode at high speed . It also gains high scanning speed for linear code, even for barcodes on paper or screen.
GM65-S barcode reader is an advanced barcode decoding algorithm developed on the image recognition algorithm, which can read the barcode easily and accurately, simplifying the secondary development. GM65-S operates stably in the dark and over a wide temperature range.
Technical Specifications
Optical System: CMOS
Capture Light Source: 617nm LED
Illumination Source: 6500K LED
Scan Angle: 34 ° (horizontal), 26 ° (vertical)
Minimum Contrast: 30%
Resolution: 648x488
Voltage: DC 3.3V
Ambient Light: 0 ~ 86000lux
Interface: USB, UART
Supported 1D Codes: Codebar, Code 11, Code 39 / Code 93, UPC / EAN, Code 128 / EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)
Supported 2D Codes: QR code, Data Matrix , PDF417
Light Source: White
Scanning Angles : rotate 360°; range ±60°; ± 65° skew
Current: 160mA (scanning), 30mA (standby)
