WS-431E Industrial 4G LTE Router - A new Qualcomm solution Wi-Fi advanced industrial router with Multi-VPN Protocol Support, excellent anti-interference ability and stable connection performance. It supports WIFI hotspot, WIFI client and WIFI relay modes and is integrated with 4G LTE, Wi-Fi, Ethernet ports (2LAN and 1WAN/LAN) and VPN technologies. The WS-431E can provide advanced Internet connectivity and high-speed data access for devices, allows users to quickly create their own application networks, and also helps enterprise customers achieve efficient large-scale network deployment and management. It is suitable for various IoT and M2M solutions, such as service robots, inspection robots, unmanned vehicle networks, massage chair networks, AGV trolley and other industrial application scenarios.
| CELLULAR NETWORK PARAMETERS | Frequency band | TDD-LTE:B38/40/41 FDD-LTE:B1/3/7/8/20/ 28A WCDMA:B1/8 GSM/EDGE:B3/8 |

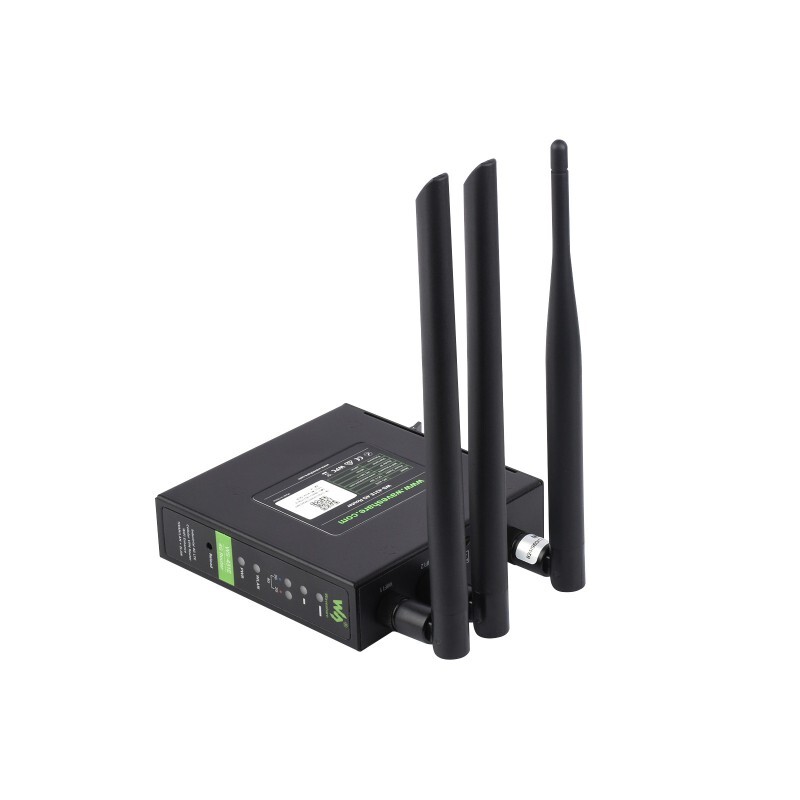

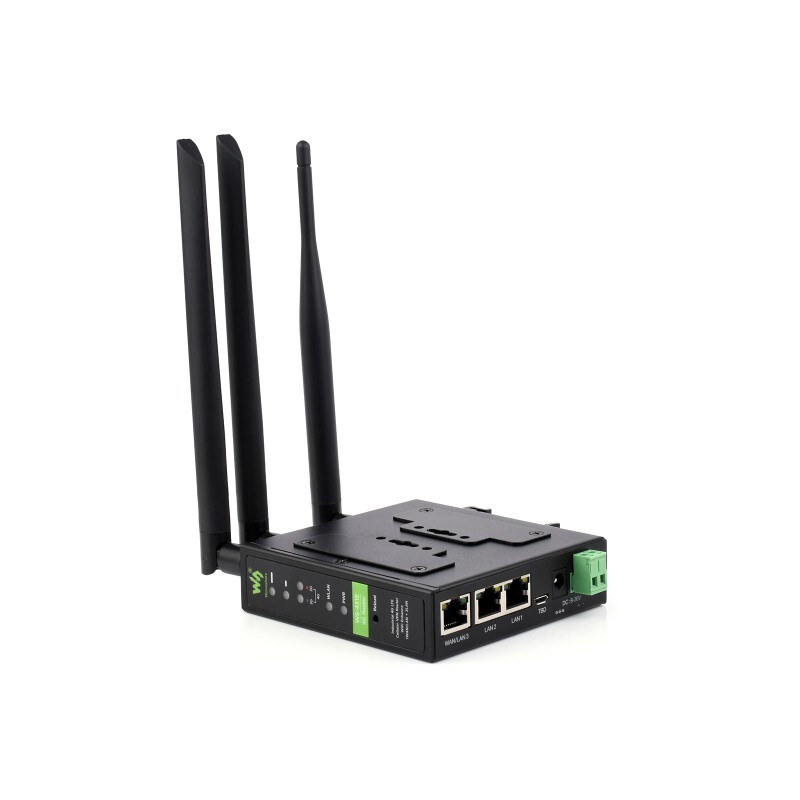

WIFI | Standard | IEEE 802.11b/g/n, 2.4GHz | Data Rate | 300Mbps | MIMO | 2×2 | Transmission distance | 500 meters in the open field, the actual transmission distance depends on the environment of the field | INTERFACE | WAN/LAN | 1× WAN RJ45 port (configurable as LAN), 10/100 Mbps, automatic MDI/MDIX support, 1.5KV electromagnetic isolation protection | LAN | 2× LAN RJ45 port, 10/100 Mbps, automatic MDI/MDIX support, 1.5KV electromagnetic isolation protection | SIM card slot | Supports Standard Nano (3V/1.8V) | Antenna | SMA-K standard antenna connector, comes with 1x 4G antenna, 2x WiFi antenna by default | TBD | Debug interface | Reload button | Supports factory restore | Grounding screw | Ground protection | INDICATORS | PWR | The power indicator lights up after switching on | WIFI | Lights up when WiFi is enabled | 2/3/4G network indicator | The 2G led lights up after connecting to the 2G network The 3G led lights up after connecting to the 3G network Both LEDs light up after connecting to the 4G network |
SIG | 2× signal strength indicator: one indicates that the signal is average when lit; two indicates that the signal is strong when lit | Feed Parameters | Power adapter | DC 12V/1A | Input voltage | DC 9-36V | Power consumption | Average 260mA/12V | PHYSICAL PROPERTIES | Operating temperature | -20℃~+70℃ |
Storage temperature | -40℃～+125℃（ non-condensing) | Relative humidity | 5%~95%（non-condensing） | Case material | Metal case, IP30 protection level | Dimensions (L×W×H) |

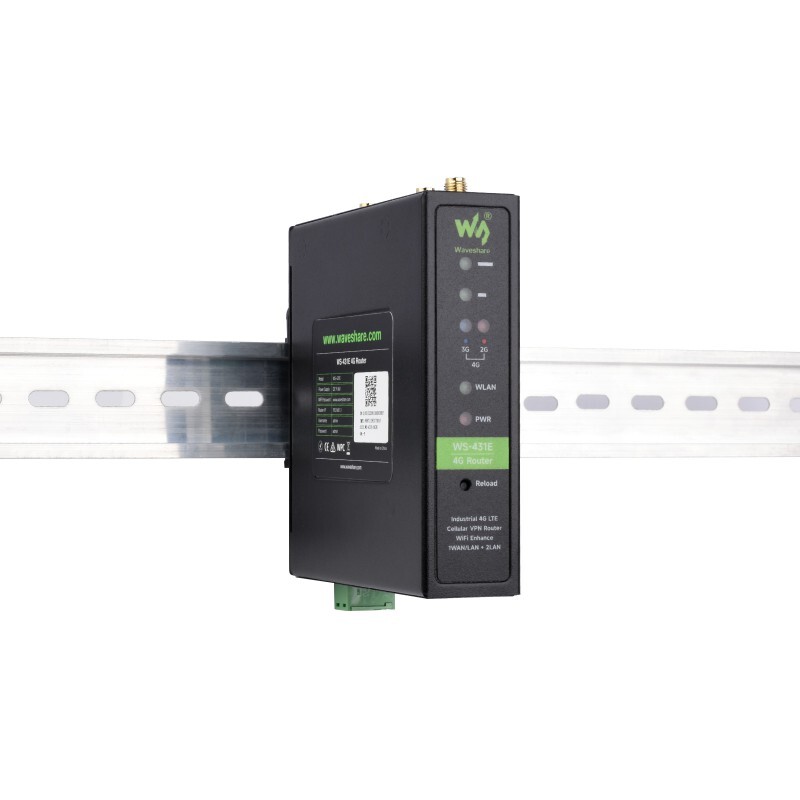

104.0×102.0×28.0mm | Installation | DIN rail mounting, wall mounting, table top | EMC | level 3 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
