XH-M609 Charge Discharge Protection Circuit 12-36V
XH-M609 is a product that prevents products such as batteries and accumulators from overcharging or overdischarging.
XH-M609 Usage:

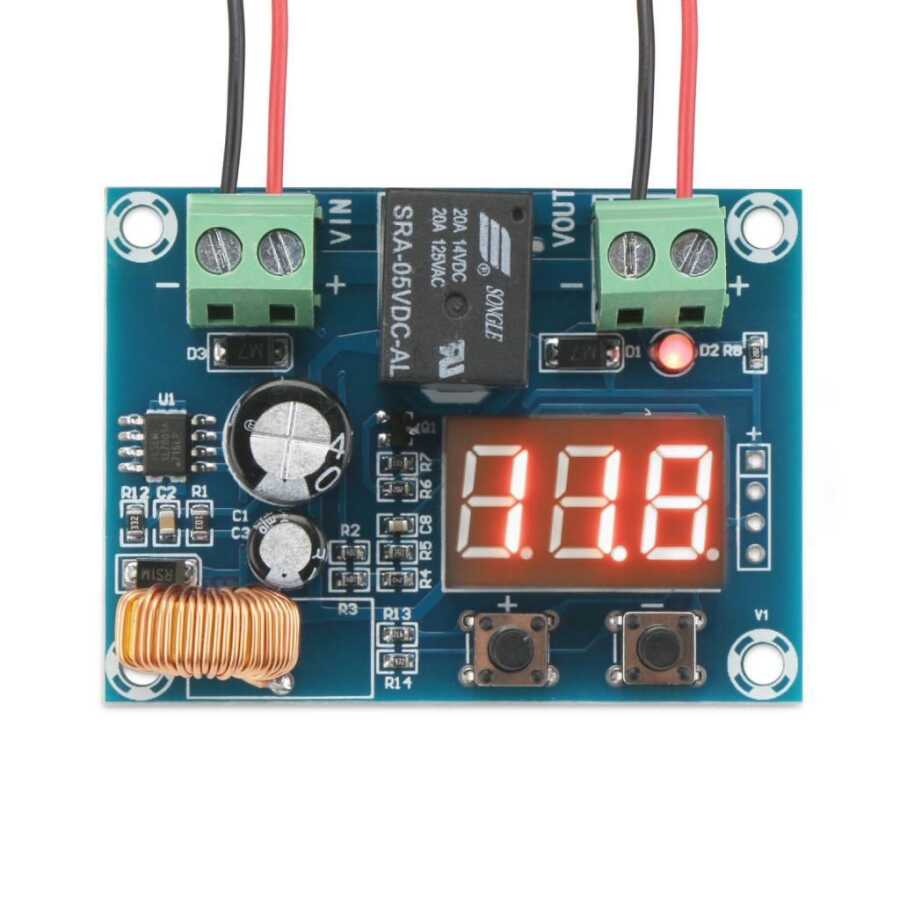

The left button on the card is the lower value. When the value entered here is reached, the relay closes. The other button is the value that indicates the amount of increase above the first value that the discharge process should start. For example, if we enter 12V in the value on the left and 3V in the value on the right, the relay will open when 15V is reached. Slowly, the battery value begins to decrease and when it reaches 12V, the value on the left, the relay closes.
