TV160 LCD-Led TV Mainboard Motherboard Tester
TV-160 LCD-Led TV Mainboard Motherboard Tester product is a test device produced to check the durability of motherboards in TVs.

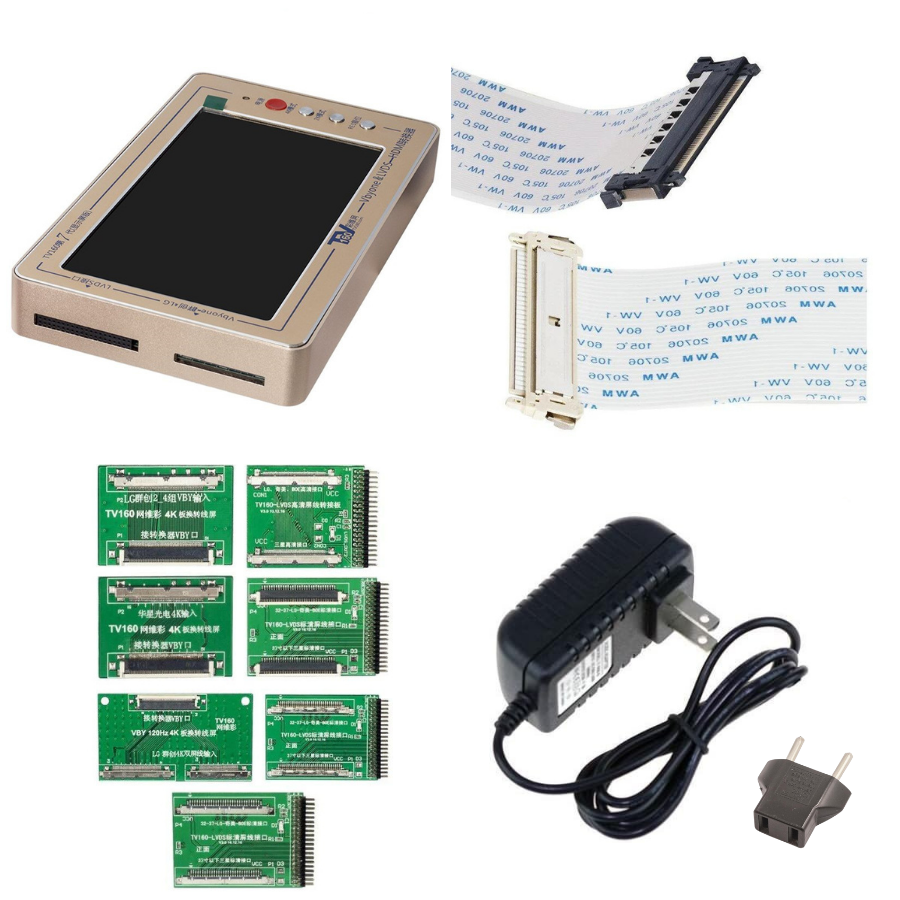

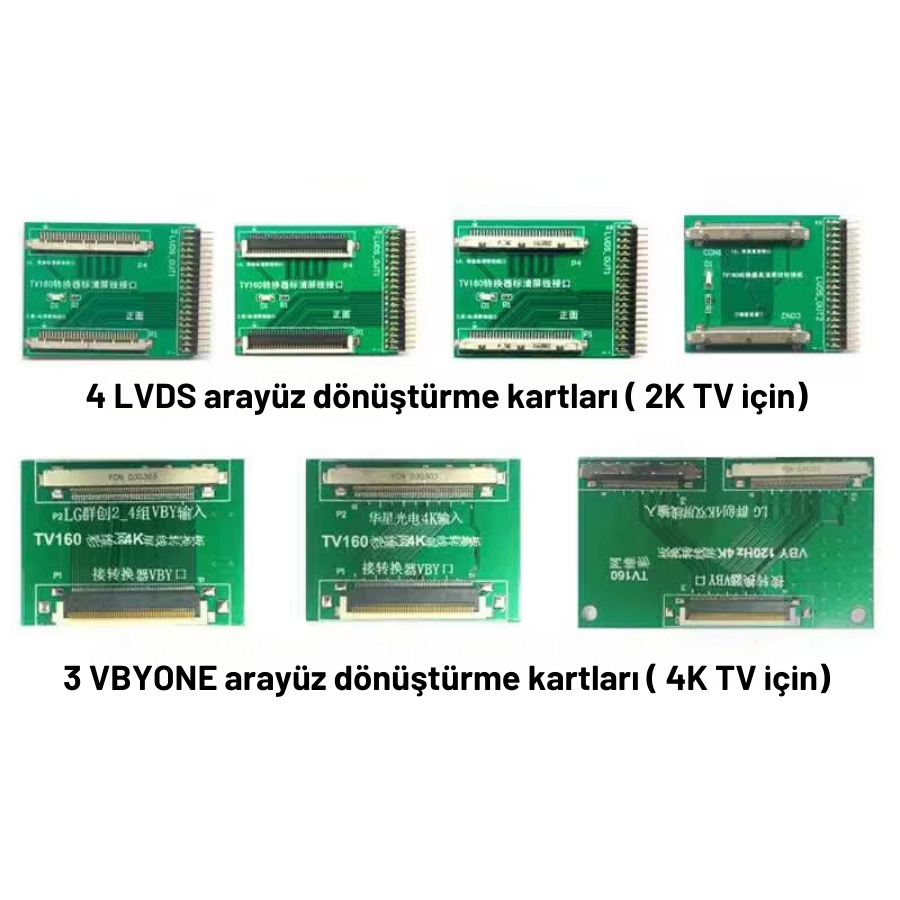

The product supports ports suitable for 4K and 2K inputs. It is suitable for many television models thanks to the conversion cards included in the package.

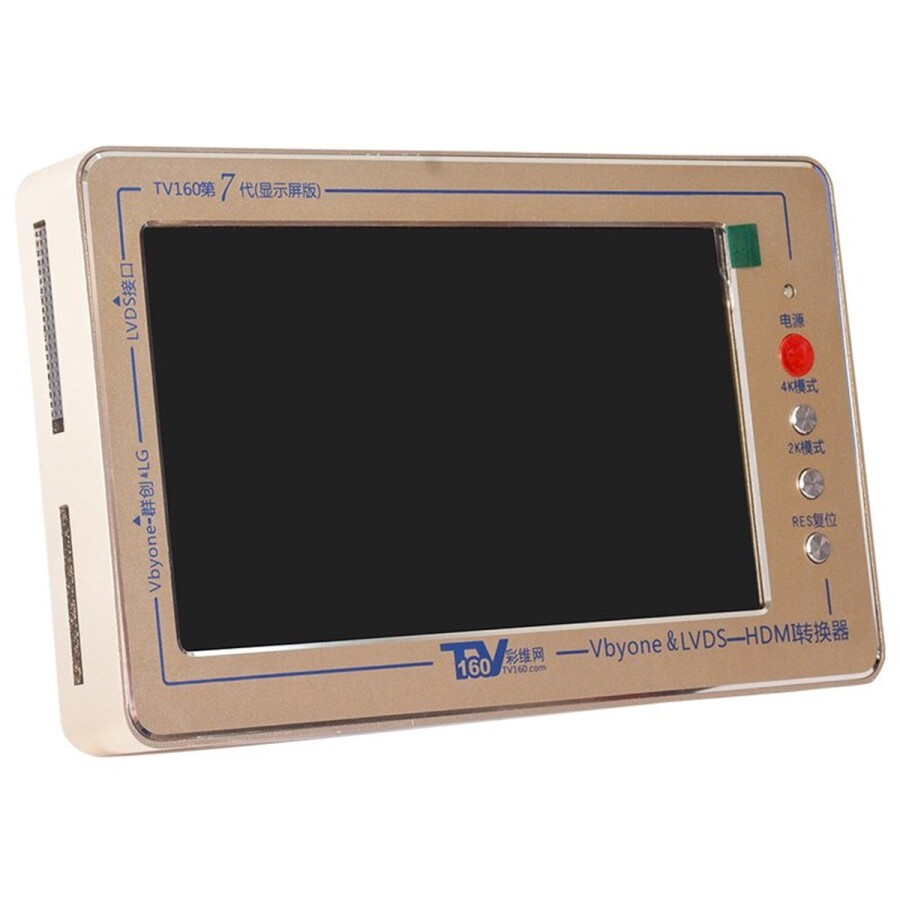

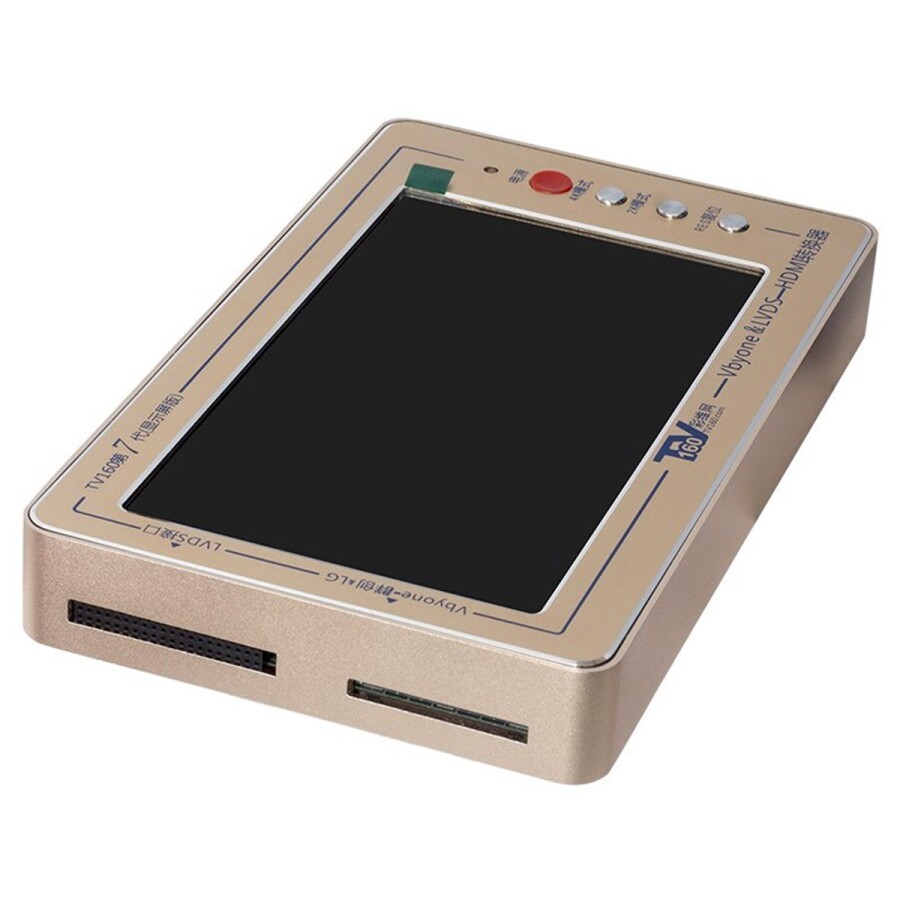

It is equipped with a 7" screen and can display the LVDS image directly from the motherboard by supporting external VGA.
2. Supports LVDS signal with various resolution rates (60Hz, 120Hz and 240Hz) of single or double shielded wire.
It outputs uniform VGA signal (1280*720/60HZ), which can be connected to a variety of displays that support CRT, liquid crystal and TV display (convenient compatibility).
Specifications
- Model: TV160
- Input Voltage: 6V
- Current: 2A
- Power: 12W
