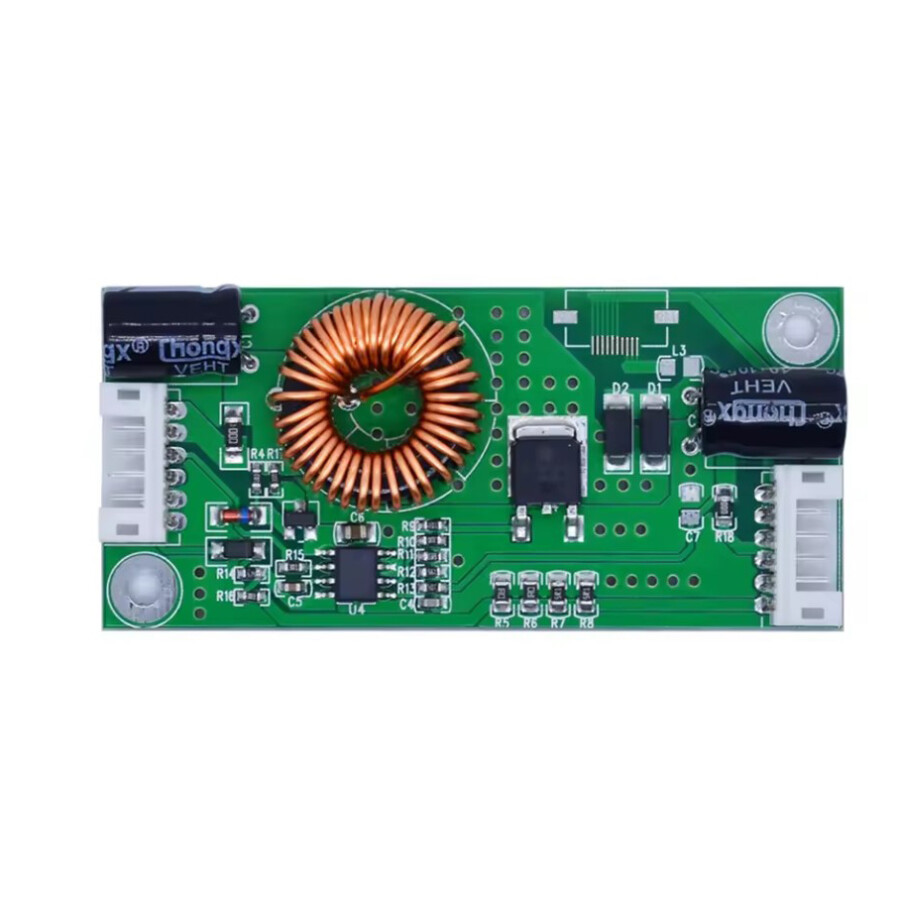

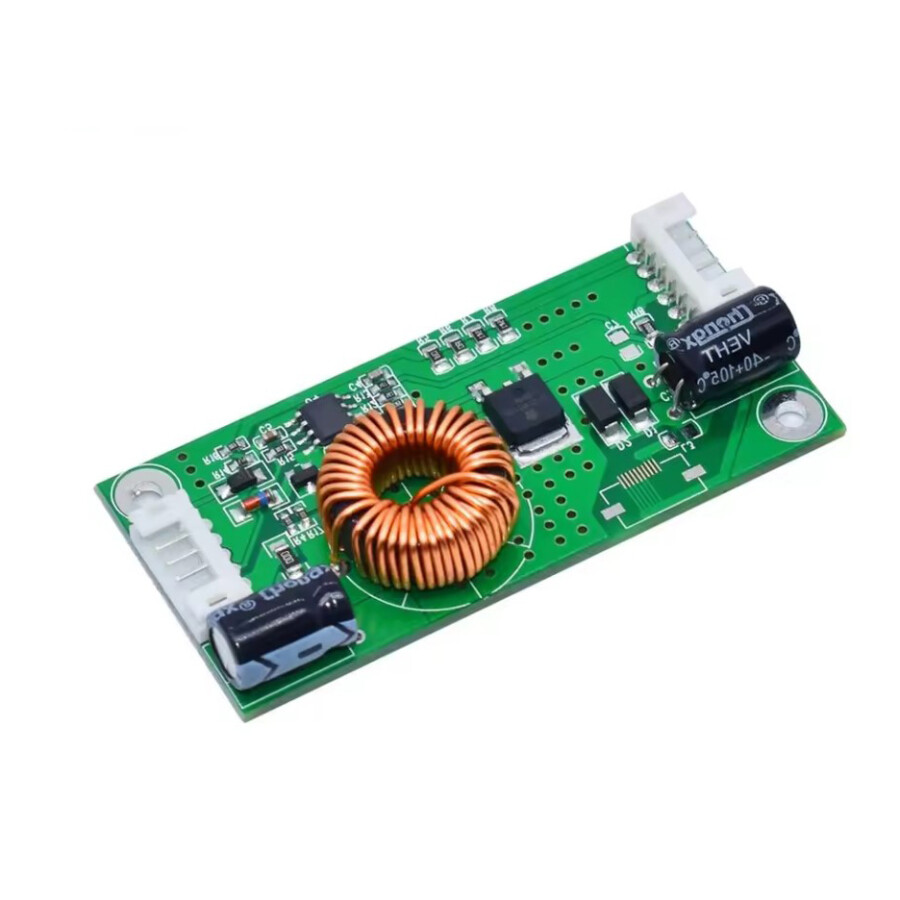

W2-0808 14-37 inch LCD Led Driver Module
W2-0808 14-37 inch LCD Led Driver Module is used to drive the backlight LEDs of 14-37 inch LCD TVs.
General Features
- 14-37 inch LED backlight lamp driver board constant current board.
- BOOST structure, conversion efficiency reached more than 92%.
- Low temperature, stability, longer service life of the device.
- PCB small, Thin design, Current control error within ±5%.
- This product is a constant current board, the voltage is automatically adapted.
Limit Parameters
- At 24V input: Vout = 75V Iout = 720mA maximum or 60W
- At 12V input: Vout = 75V Iout = 400mA maximum or 30W
Features

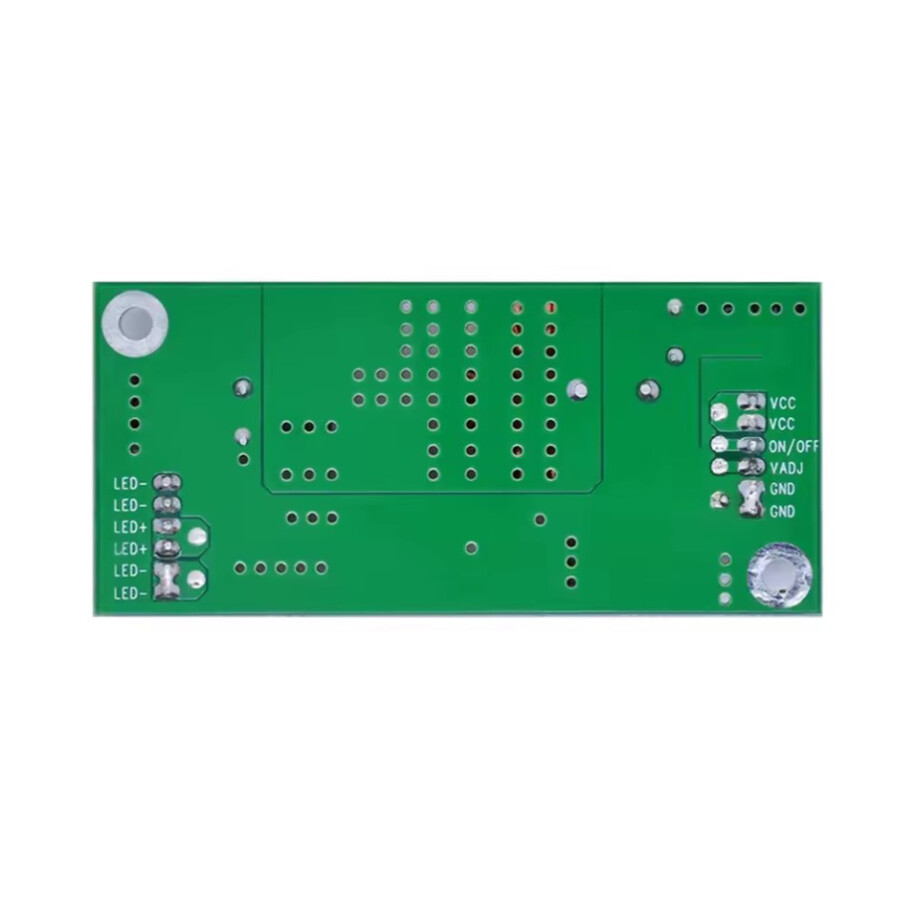

- General Electronic Backlight symbolic code:
- VCC: Positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
- ON/OFF,ON,EN,ON_BL: Switch signal pin
- PWM,PDIM,VDAJ,BL-PWM: Brightness adjustment pin
- GND: Ground (negative electrode)
- LED+: Positive of light emitting diode (lamp) electrode
- LED-: Negative electrode of the light emitting diode (lamp)
- Temperature increase is controlled at approximately 25 degrees (Temperature increase = device surface temperature - ambient temperature)
