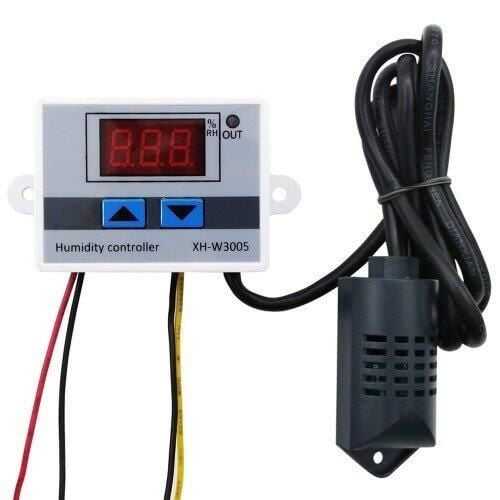

XH-W3005 220V AC Digital Humidity Controller
XH-W3005 is a high-precision digital humidity controller with AC 220V Relay output. 0.1%RH offers high humidity control accuracy. Humidity control range 00%RH It is between 99%RH and 99%RH. Warehouse, room, greenhouse, incubator, etc. It is used to control humidity in various places.
XH-W3005 Usage:

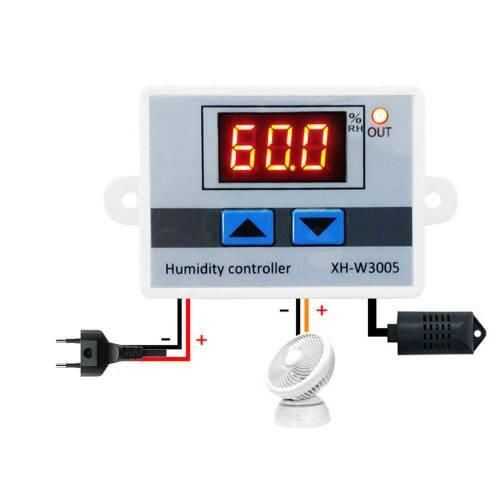

- Red and black cables are for 220V supply.
- It is controlled with two buttons on it.
- The button on the left is pressed and the humidity value is adjusted when the screen starts flashing. The screen is expected to go off. After the screen turns off, the value is set and the same process is done for the button on the right. The product operates between the two temperature values you enter.
- To return to factory settings, with the power on, press and hold the up and down keys simultaneously, the screen will show 888 and then automatically switch to the humidity detection value.
Technical Specifications:
- Model: XH-W3005
- Humidity range: :00%~99%RH
- Humidity control accuracy: 0.1%RH
- Measurement Accuracy: +/-%2RH
- Load Power: 1220v 1500w
- MAX Output: 10A

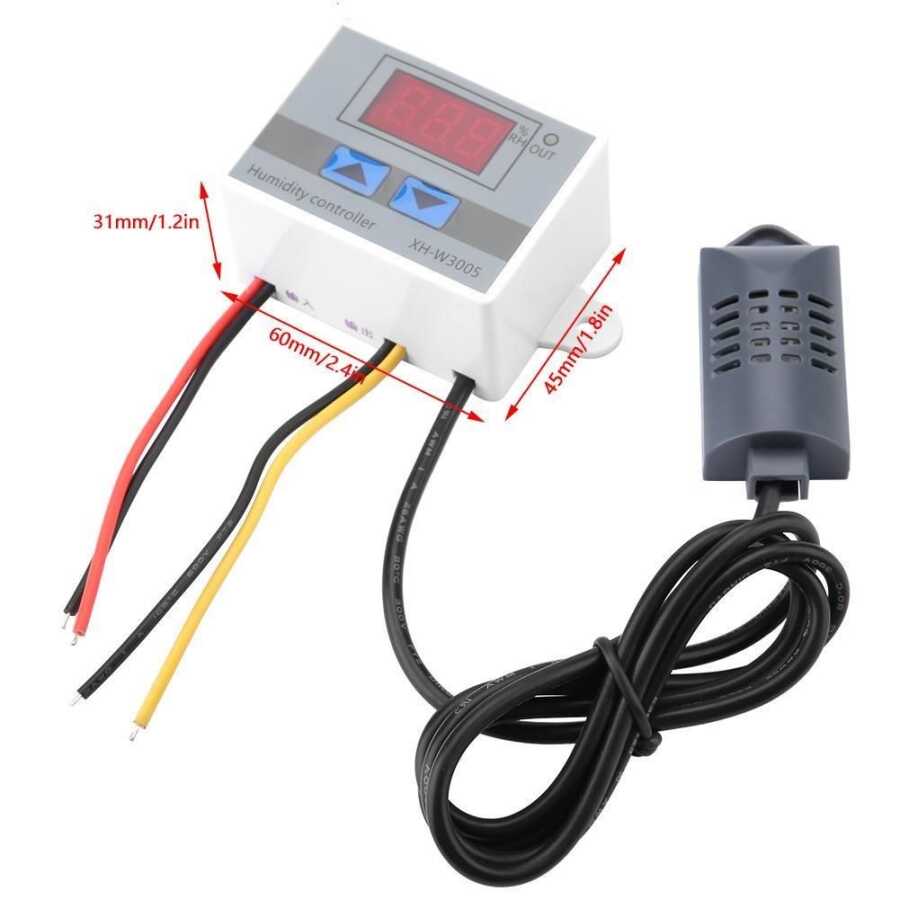

- Dimension: 60*45*31mm
Calibration To do this, press and hold 2 buttons simultaneously while the product is running. After a while, 00 will be written on the screen and it will blink. At this moment, use the up and down keys to adjust the difference between the required humidity rate and the measured humidity rate. For example, if it measures 3 degrees too high, set it to -3 and leave it. After waiting for a while, the device records this value. From now on, it will show less than this value.
