YS-RT1C 12V Delayed Time Relay 0-60s - Triggered

Ratings & Reviews (0)
Comment
Show More: Timed Relay Boards
Brand: Motorobit
Product Code: RLK.ZMN.01.000069
Stokta 10+ ürün
173.50 TL + VAT
VAT Included: 208.20 TL

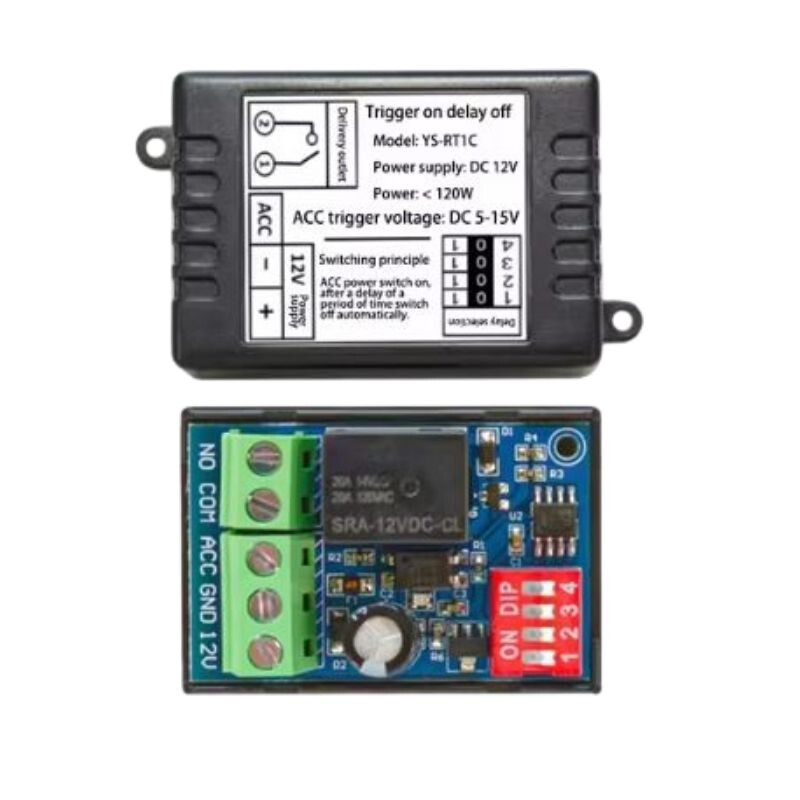

YS-RT1C 12V Delayed Time Relay 0-60s - Triggered

YS-RT1C 12V Delayed Time Relay 0-60s - Triggered. It is a delayed time relay that works with 12VDC and can switch AC/DC. The time can be adjusted between 0-60 seconds with the 4-pin dip switch on it. Trigger input is made from ACC pin.

Technical Specifications

  • Model: YS-RT1C
  • Supply Voltage: 12VDC
  • Switching Voltage: 0-14VDC / 0-125VAC
  • Current: 10A
  • Operating Current: 68mA
  • Operating Temperature Range: -20 ~ 70°C
  • Dimensions: 50x35x22mm

Operating Shape

After you trigger the product, it will work for a certain period of time and then it will shut down. It is necessary to trigger again for it to work again.

When you give the trigger continuously, the time starts after the first trigger. After it is turned off, you need to cut the trigger and trigger again for it to work.

Connection Diagram

 YS-RT1-T-connection

Setting the Duration

 YS-RT1-60s
