JS11S AC 380V Digital Display Time Relay 0.01 S ~ 999 H

Ratings & Reviews (0)
Comment
Show More: Timed Relay Boards
Brand: LNKJ
Product Code: RLK.ZMN.01.000075
Stokta son 8 ürün
828.00 TL + VAT
VAT Included: 993.60 TL

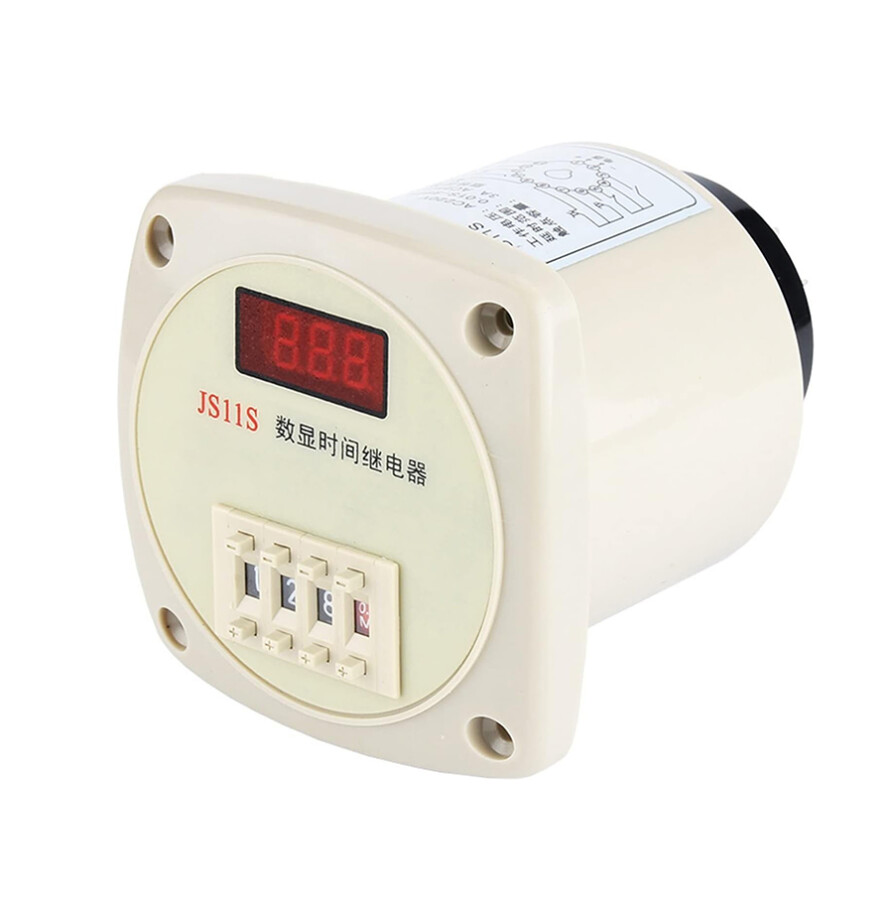

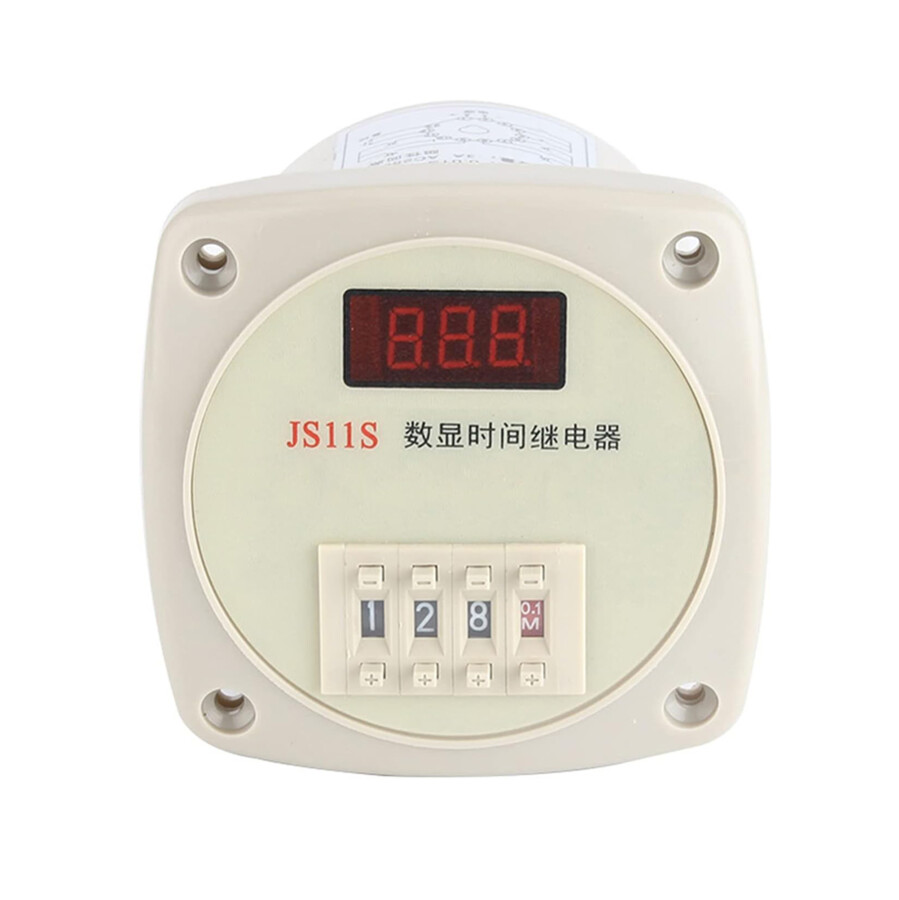

JS11S AC 380V Digital Display Time Relay 0.01 S ~ 999 H

JS11S AC 380V Digital Display Time Relay 0.01 S ~ 999 H. It is a delayed time relay that can be adjusted between 0.01 seconds and 999 hours. It is analog adjusted. You can make adjustments with the buttons on it. You can view the remaining time on the digital screen.
It provides transition for the set time. Then it stops.

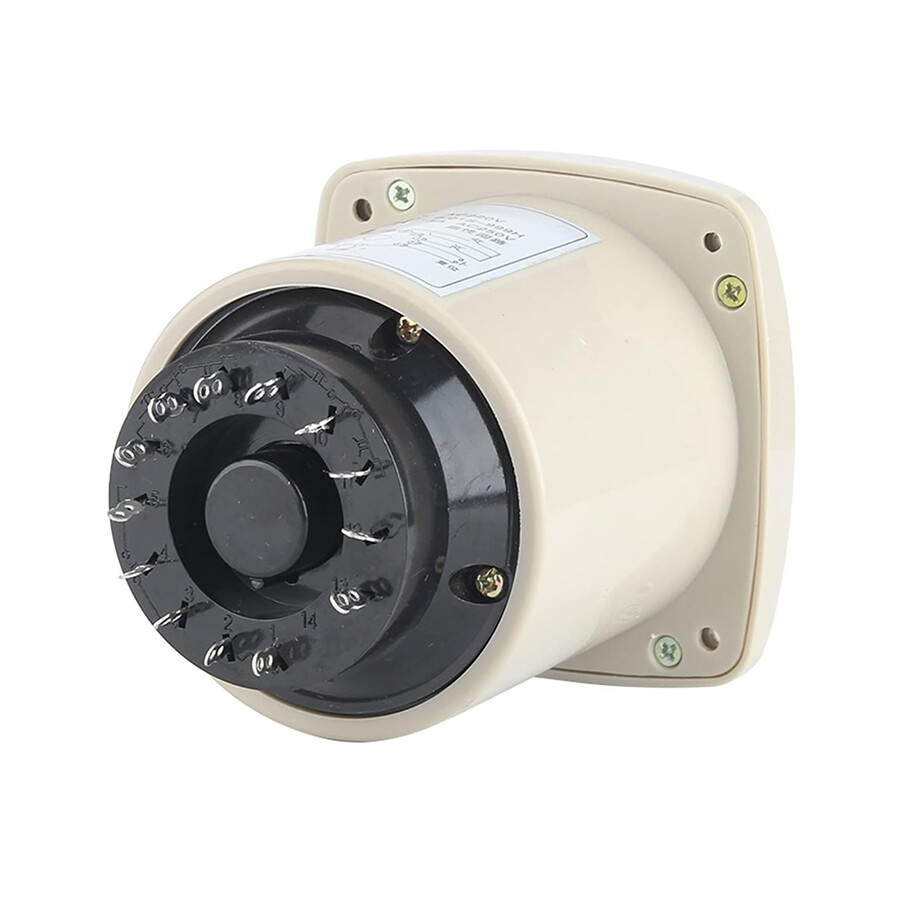

1st and 2nd pins are power inputs. Pins 12 and 13 are reset trigger pins.

Technical Specifications

  • Model:JS11S
  • Adjustable Time: 0.1s - 999H
  • Working Voltage: 380V AC
  • Nominal Current: 3A
  • Frequency: 50/60Hz
  • Mounting Hole Diameter: 4mm
  • Distance Between Mounting Holes: 70x70mm

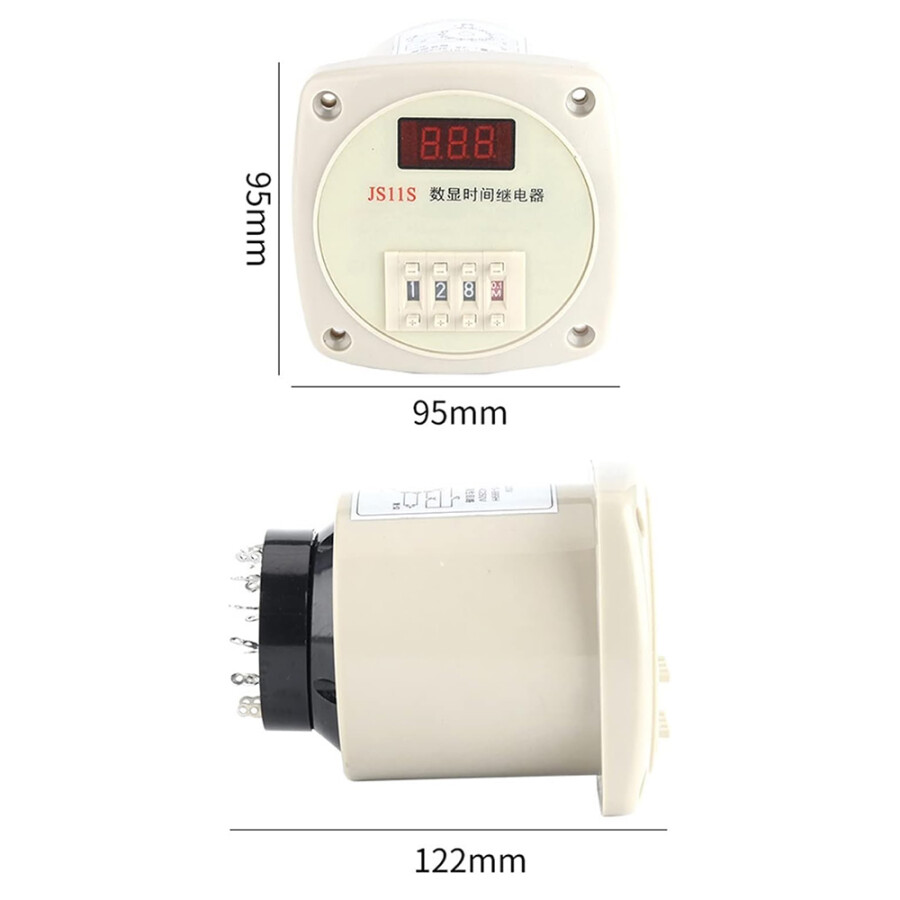

  • Dimensions: 94x94x110mm
Weight(Kg)
0.2
